Driverless LED Flood Light

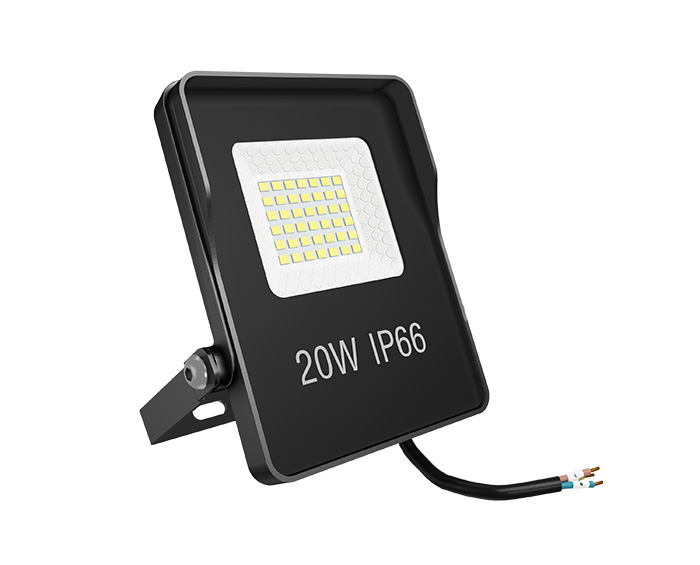

Our LED driverless floodlights combine modern lighting technology with functional design to deliver unmatched lighting performance and energy efficiency. IP66 rated 20w LED Floodlight with ultra-thin design with minimal visual impact; IK08 grade die-cast aluminum housing and tempered glass provide excellent protection.

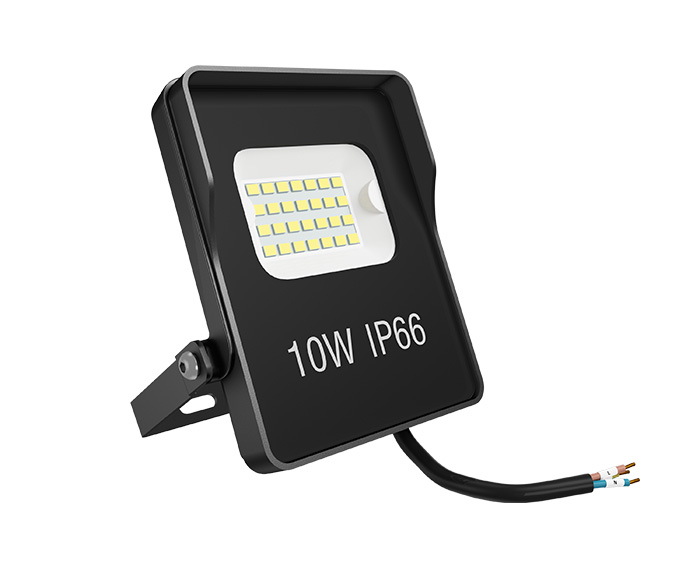

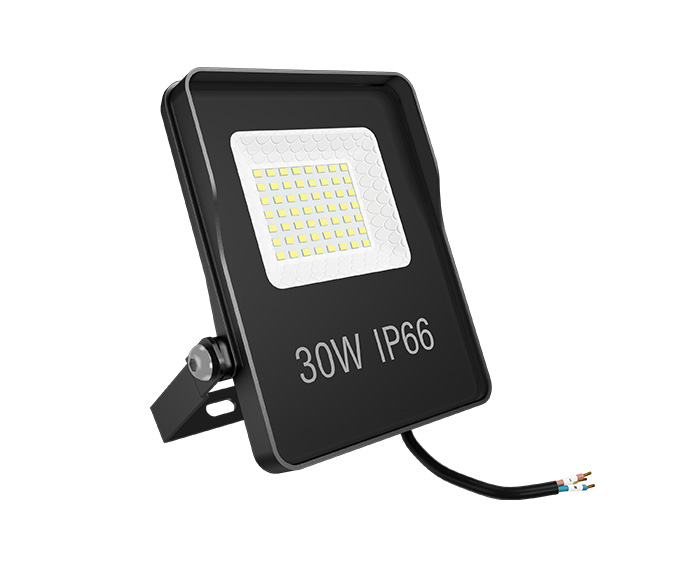

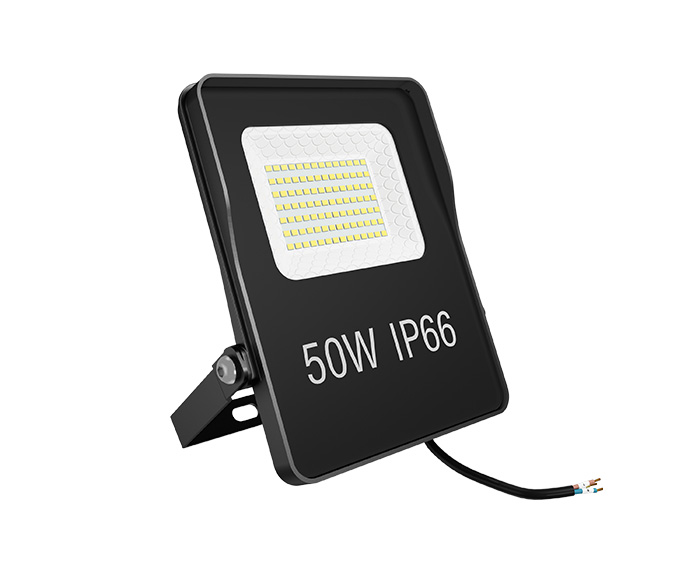

1. Wide power range: 10W~50W
2. Ideal for retro-fit of existing halogen fixtures
3. No upper light output ratio (ULOR 0%) when mounted at 0° tilt
4. Optimized weight and size due to compact design
5. Energy savings of up to 90 % compared to halogen floodlights
6. No mercury or other hazardous materials
7. 2 years warranty
8. Multiple lighting distributions available
9. CE/ RoHS/ IK08/IP66
Model | ZGSM-FL07-20 |
LED Brand | SMD 2835 |
Driver Brand | Integrated Driver |
Normal Wattage | 20W |
Input Voltage | 220-240VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 120lm/w |
Lamp Rated Lumen output | 2400 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 4000K, or 5000K |
Photometric Type | 120 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body | Die-casting aluminum |
Cover | Toughened glass |
Rating | IP66, IK08 |
Protection | Class I |
Certification | CE, ROHS, LM80 |
Dimming Options | Non-dimming |
Control Options | PIR sensor |
Color Options | Black |
Warranty | 2 years |
Driverless LEDs use high-voltage integrated circuits with adjustment and change chips to cleverly change the number of LEDs in the string during the cable cycle so that the voltage of the LED string matches the instantaneous cable voltage.
Floodlights are specifically designed to illuminate areas such as the front and back yards, parking lots, terraces, and decks. Floodlights work by "flooding" an area with light, where they can produce a wider beam of light, typically up to 120 degrees.
Because LEDs require a constant DC or 12v or 24v, all LED systems require LED drivers (except those specifically developed for power control by the supply voltage, such as supply voltage strips or LED bulbs).
