ENEC Certification 120 Watt LED Street Light

Q: 2. What voltage is used in LED street lights?

The most common street lamp operating voltage is 120 volts (62%), followed by 240 volts (28%). The majority of entities (82%) that own street lights use a separate photocell to control the on/off function of the street light.

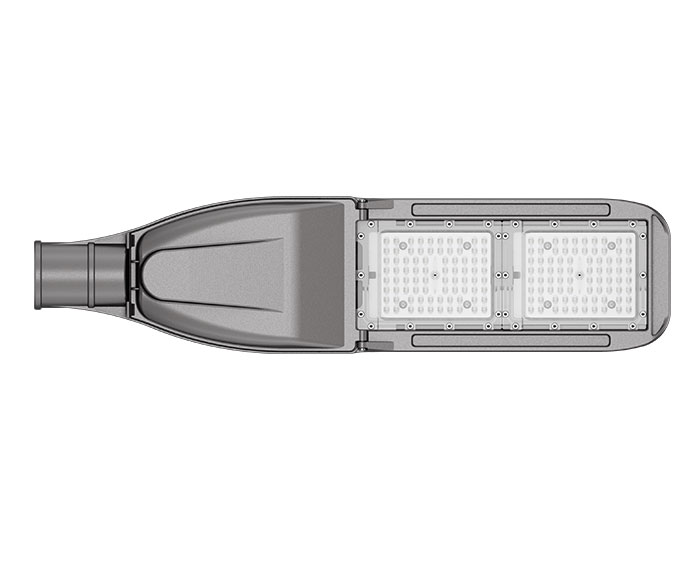

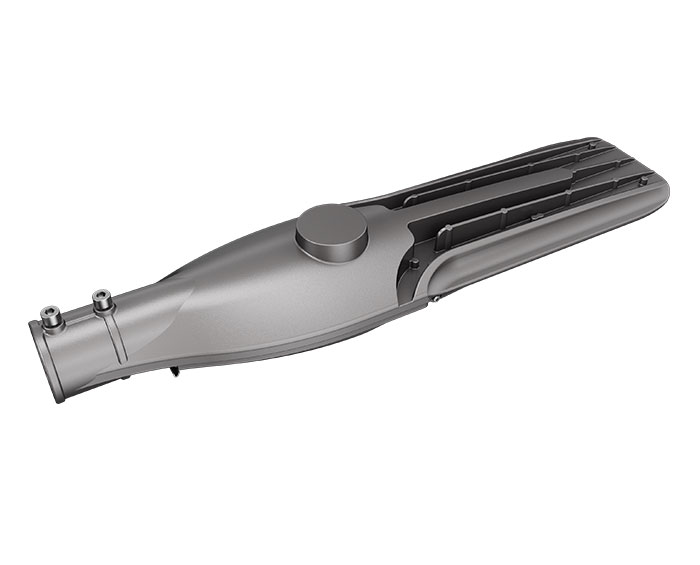

ENEC Certification 120 Watt LED Street Light, The small and sophisticated exterior design saves transportation costs and is suitable for lighting residential, urban and rural roads. Because of its unique design and high-cost performance, many customers use it as an engineering project.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

● Wide power range: 60W~130W.

● Smart design, low transportation costs.

● In special circuit design, single LED damage won't affect others' normal work.

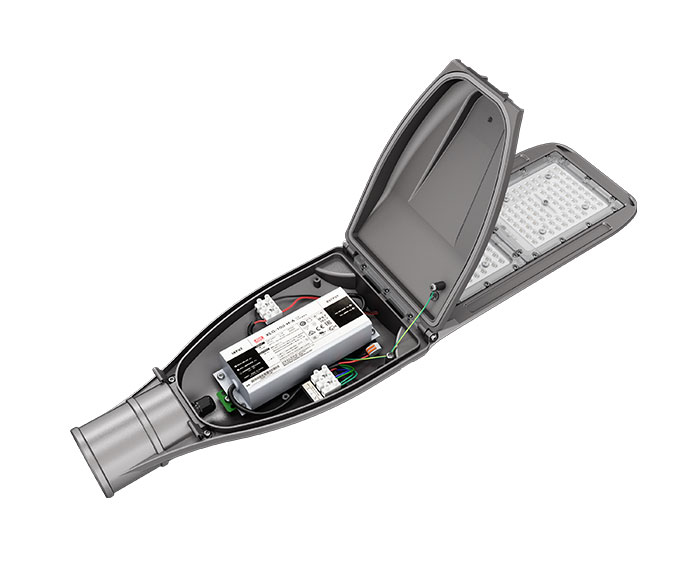

● Toolless is open for easy installation, replacement, and maintenance.

● High Lumen output up to 160lm/ w with high-quality LED chips.

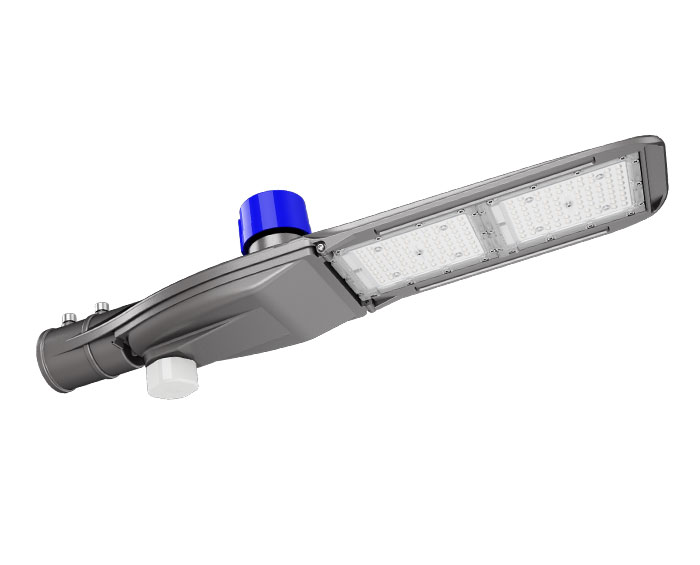

● Multiple lighting control options are available, e.g.1-10V, photocell, and motion sensor.

● Designed to last at least 100,000 hours at L70.

Specifications

Model	ZGSM-LD120Kmini2
LED Brand	LUMILEDS® LUXEON 3030/ 5050
Driver Brand	Inventronics
Normal Wattage	120W
LED Chip Quantity	3030: 160pcs 5050: 56pcs
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	3030: 140 lm /w 5050: 152 lm /w
Lamp Rated Lumen output	3030: 16800 lm 5050: 18240 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70(80 optional)
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	3030: Type II Medium 5050: Type II Medium BLS
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body and Shell Materials	Die-cast aluminum; PC Lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I
SPD	10KV (20KV optional)
Certification	CE, ENEC, CB, ROHS, LM80, LM79, IP66, IK10, ISTMT
Dimming Options	1-10V
Control Options	Photocell or Smart control
Color Options	Deep grey
Warranty	5 years

FAQ

1. What does ENEC mean?

ENEC is an abbreviation for "Eurocode Electrical Certification". These four letters are part of a registered trademark and indicate that the product has been certified by one of the European national certification bodies.

2. What voltage is used in LED street lights?

The most common street lamp operating voltage is 120 volts (62%), followed by 240 volts (28%). The majority of entities (82%) that own street lights use a separate photocell to control the on/off function of the street light.

3. How to reduce the glare of street lights?

To minimize discomfort, they recommend minimizing the amount of light that hits the eye and the brightness contrast between the street lights and the background, which can be achieved through the good optical design of the LED light unit and the careful placement of each street light.
