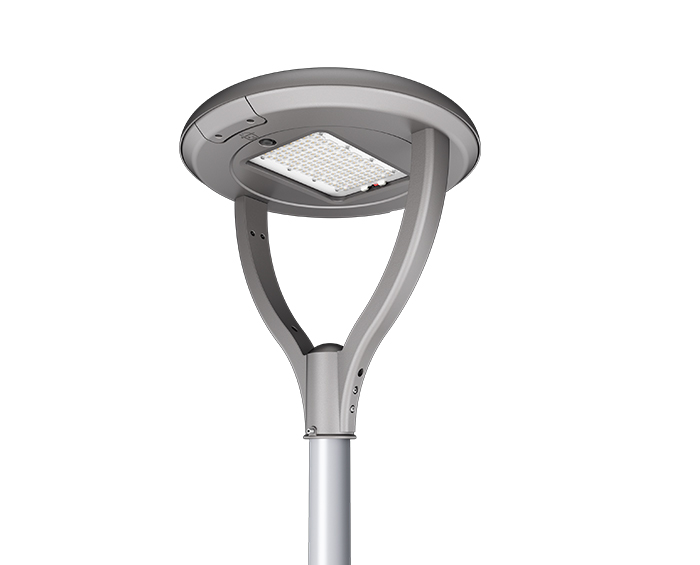

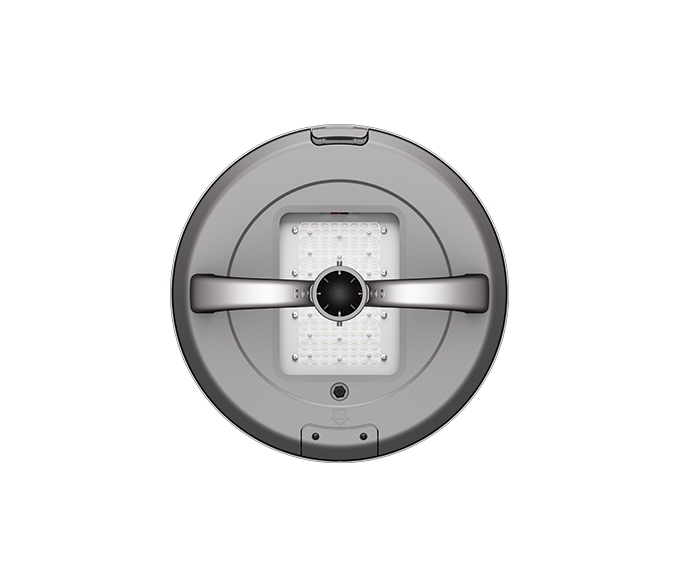

ENEC certified 37w tool-less led garden light

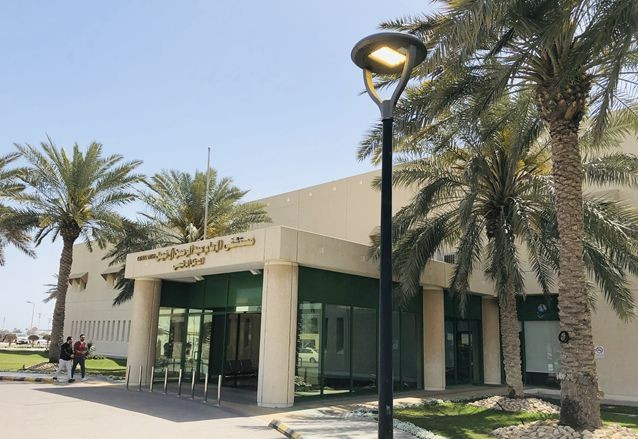

For various reasons, outdoor lights or garden lights may be installed to protect your home or highlight beautiful areas of the garden. Post-top luminaires are commonly used to illuminate safe areas for pedestrian and vehicle use, with the most common attribute being that the luminaires are mounted vertically on poles 7-20 feet tall.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

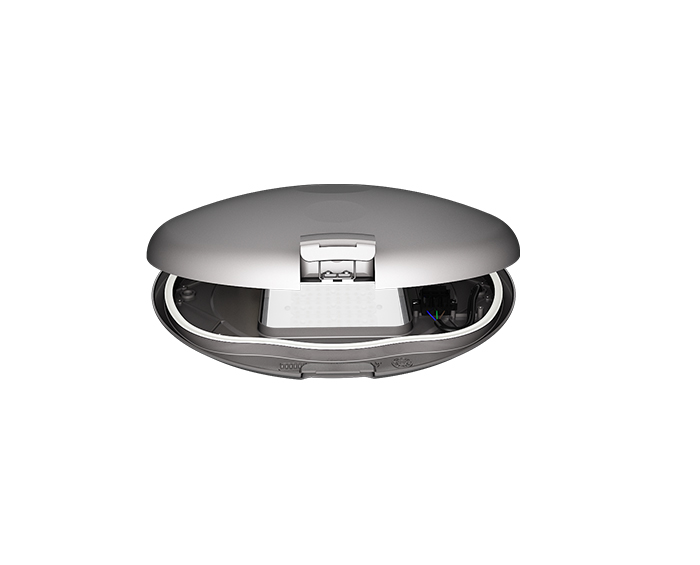

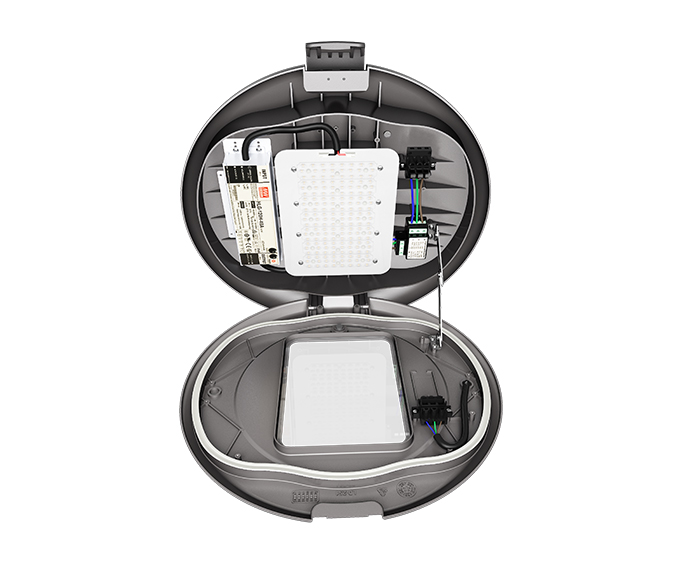

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

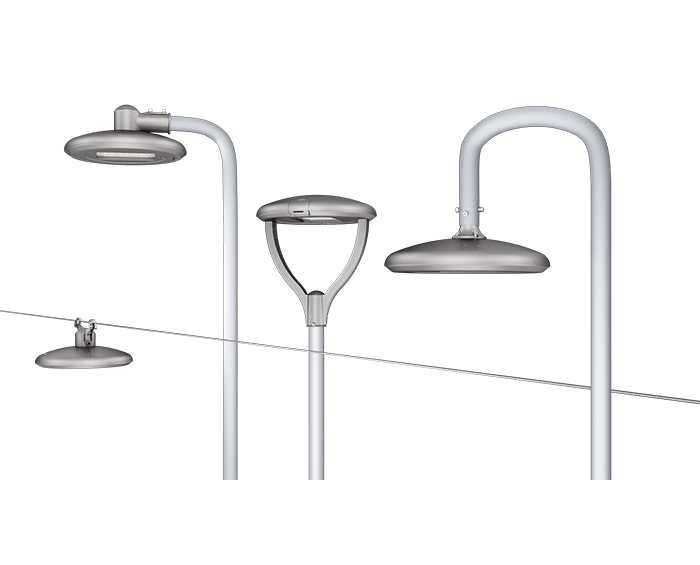

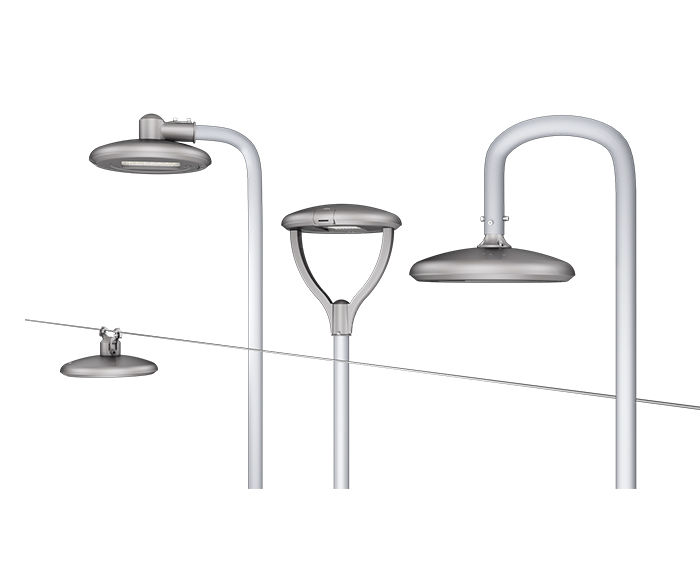

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.

Specifications

Model	ZGSM-LD37LMA
LED Brand	LUMILEDS® LUXEON 3030 or 5050
Driver Brand	Meanwell HLG series/ Inventronics
Normal Wattage	37W
LED Chip Quantity	3030: 96pcs 5050: 48pcs
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	115-135 lm /w
Lamp Rated Lumen output	4255-4995 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70(80 optional)
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body and Shell Materials	Die-cast aluminum; Tempered Glass
Pole Fitter Diameter	60mm
Rating	IP66 IK08
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE, ENEC,CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Deep grey
Warranty	7 years

FAQ

How many lumens do you need to light a garden（for led solar garden light）?

Area	Lumens
Small Patio	500lm
Driveway	1500lm
Small Garden (50m²)	1600lm
Medium Garden (150m²)	2400lm

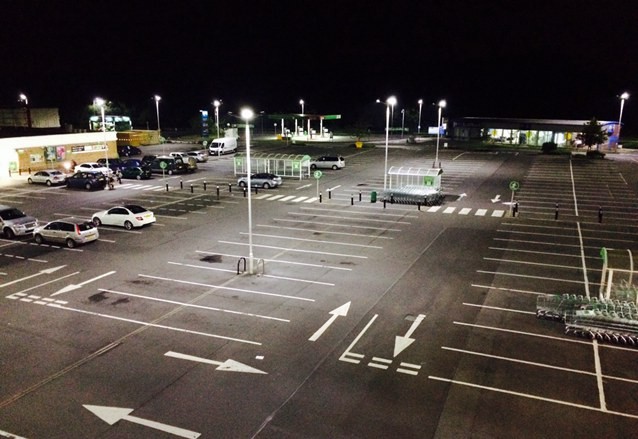

Car Park	9000-20000lm

Things to consider when choosing LED garden lights

IP rating

As we have already mentioned, IP-rated lights are ideal for gardens as they will continue to work in bad weather conditions.

IP stands for Ingress Protection, which stands for How to Protect Lamps from Water and Solid Objects. It consists of two numbers, the first number tells you how well the device is protected against solid objects, and the second number tells you how well the device protects the water. The higher the number, the greater the protection.

For solid objects, the rating can be between 0 (unprotected) and 6 (completely dustproof), while for water, the rating is from 0 (unprotected) to 8 (completely impermeable, suitable for immersion in water up to 1 meter deep).

For outdoor areas, look for lighting fixtures with an IP rating of at least 44. This means it prevents objects up to 1 mm in size from entering (hence most soil and dirt) and can withstand splashing.

If possible, look for a lamp with an IP65 rating. They offer excellent protection and can withstand even the most extreme British weather, even with directional sprays such as hoses. Ratings above 65 and 66 are rare and are only really needed if the device will be exposed to a lot of water.
