150W LED Street Light With Class II Driver

150w LED Street Light is designed to provide the best balance of public safety and return on investment for towns of all sizes. ZGSM is one of the best factories of street lighting fixtures in China, who offer road owners and municipal managers the best possible lighting options. With our LED public lights, we provide solutions for commercial, residential, and industrial projects.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

Streetlight, street lighting led, outdoor street light, commercial led street lights, led roadway light

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3.World class, approbated quality components (LEDs /Driver /etc.)

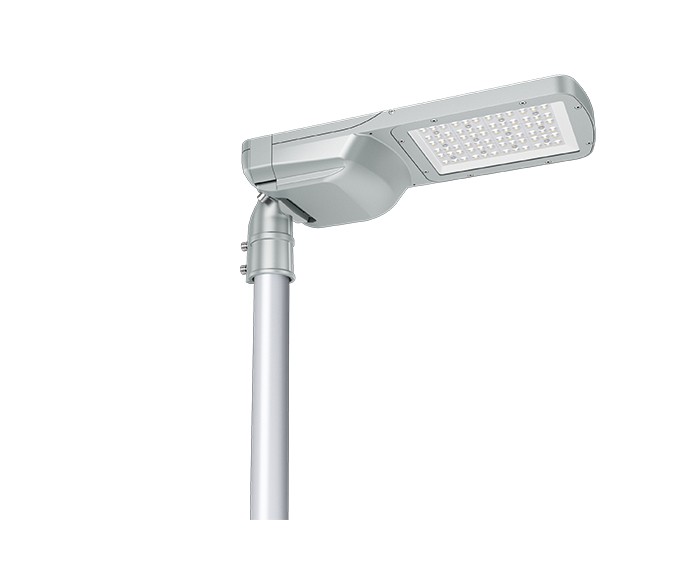

4. Support horizontal and vertical mounted, suitable for different light poles

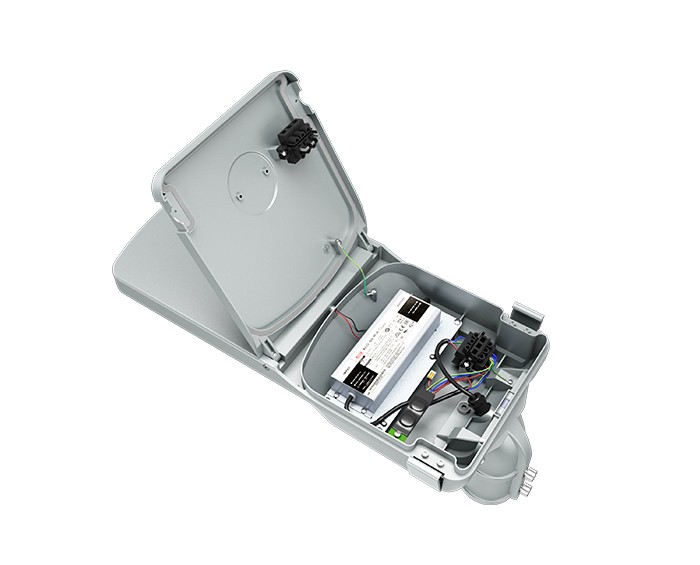

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

7. CE, RoHS, CB, ENEC, LM-79, LM-80, ISTMT, ISO9001, ISO14001 Certified for both Class I & Class II Version.

8. Accessories of Photocell, Motion Sensor, Smart Control System (LORA & ZIGBEE), NEMA Socket (3/5/7 Pin), ZHAGA Socket available for options.

Specifications

Model	ZGSM-ST17-150M
LED Brand	LUMILEDS 3030 OR 5050
Driver Brand	Inventronics /Other brands on request
Normal Wattage	150W
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	145-155lm/w
Lamp Rated Lumen output	21750-23250 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, 5700K
Photometric Type	Type II, Type III
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	<10%
Lumen Maintenance	>100,000 hours -L70, @25 ºC (77 ºF)
Body	High-pressure die-cast aluminum
Cover	Tempered glass
Rating	IP66 IK10
Protection	Class I (Default) /Class II
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options	1-10V Dimming (Default) /Timer Dimming
Available on request	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming
Color Options	Gray (Default) /Black (available on request)
Warranty	5 years

FAQ

1. What is intelligent or smart street lighting?

Smart street lights refer to public street lights that adapt to the movement of pedestrians, cyclists, and cars in smart cities. Also known as adaptive street lighting, it lights up when it senses activity and dims when it doesn't. This is different from traditional fixed lighting, as well as dimmed lighting on a timer.

2. How to choose a street light?

In addition to thermal management, make sure that the street light you choose has:

1. Recyclable, tested materials.

2. Wide enough power range.

3. Wide optical spectrum.

4. Replaceable components.

5. High IP & IK rating.

6. Long-term guarantee.

7. Smart City Compatibility.

3. What is Class II?

IEC protection Class II power supplies will have a two-wire power cord as opposed to a three-wire power cord with Safety Earth connection.The concentric square symbol or the words "Class II" or "double insulated" are frequently used to identify products having Class II insulation on safety labels.
