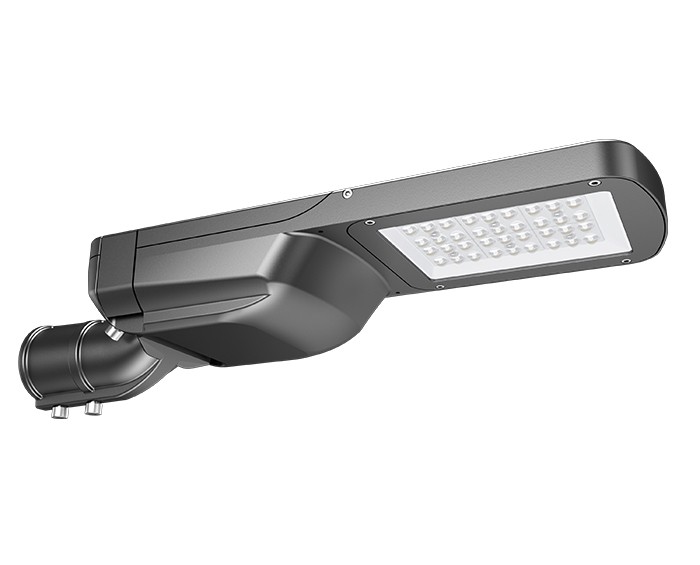

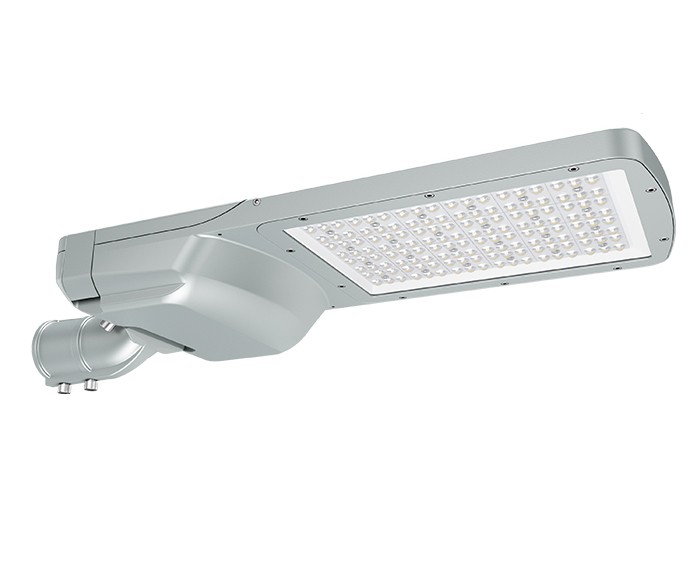

100000 Hours Lifespan 200w highway Street Lights

200W highway street lights are a popular choice for road lighting today. High lumens, high luminous efficiency, and low maintenance are its advantages. In addition to highways, it can also be applied to streets, parks, residential areas, outdoor parking lots, and other areas that require lighting.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

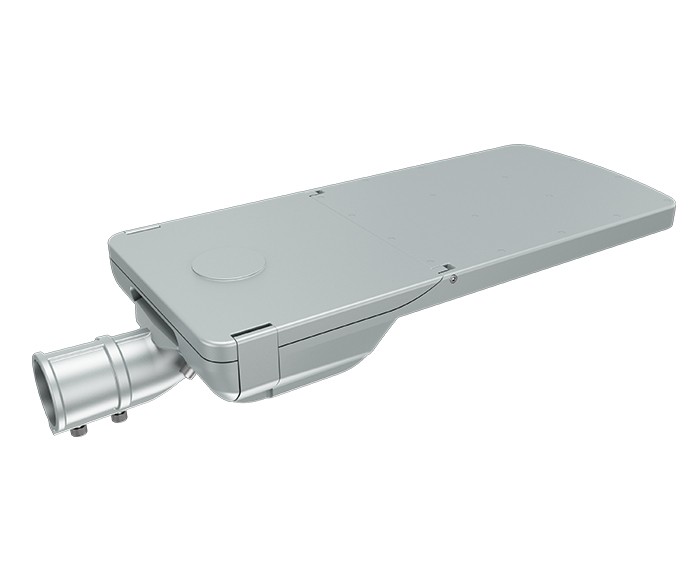

4. Support horizontal and vertical mounted, suitable for different light poles

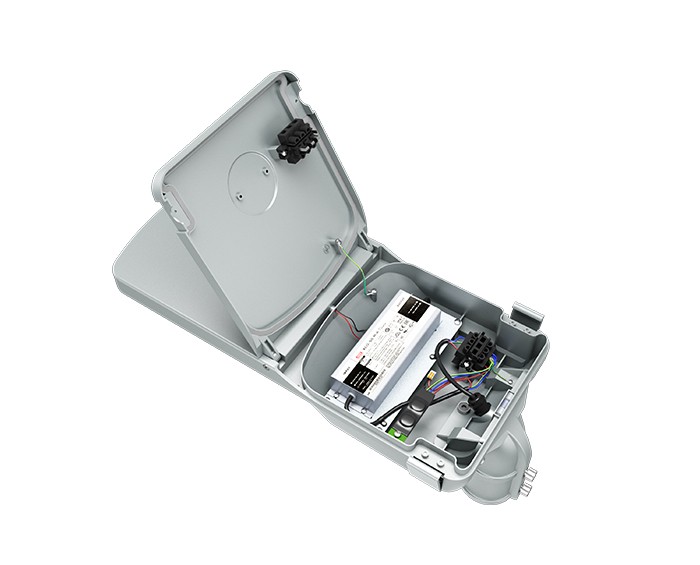

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

7. CE, RoHS, CB, ENEC, LM-79, LM-80, ISTMT, ISO9001, ISO14001 Certified for both Class I & Class II Version.

8. Accessories of Photocell, Motion Sensor, Smart Control System (LORA & ZIGBEE), NEMA Socket (3/5/7 Pin), ZHAGA Socket available for options.

Specifications

Model	ZGSM-ST17-200L
LED Brand	LUMILEDS 3030 OR 5050
Driver Brand	Inventronics /Other brands on request
Norminal Wattage	200w
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	150-160lm/w
Lamp Rated Lumen output	30000-32000lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, 5700K
Photometric Type	Type II, Type III
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	High pressure die-cast aluminum
Cover	Tempered glass
Rating	IP66 IK10
Protection	Class I (Default) /Class II
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options	1-10V Dimming (Default) /Timer Dimming
Available on request	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming
Color Options	Gray (Default) /Black (available on request)
Warranty	5 years

FAQ

How tall are street lights？

The height of the street lamp (the height of the street lamp pole) is generally 6 meters, 8 meters, 10 meters, 12 meters, 15 meters, etc., and the specific height of the street lamp depends on the width of the road surface. Generally, if the unilateral light is turned on, the height of the street lamp is the same as the width of the road surface. Or the height of the street lamp is less than 1 meter of the width of the road.

The relationship between the common LED street lamp power and the height of the lamp pole is generally:

Wattage	Height
30-60W	＜6M
60-100W	＜8M
100-150W	＜10M

How much does it cost to replace a street light?

List and price of replacement street lights = cost of replacing light bulbs + truck rental + human lift rental + wages for at least 2 workers

At least the cost per project is about $800. However, in most cases, replacement costs may be higher. Therefore, you should budget your expenses accordingly. In most cases, lighting costs range from $2,000 to $4,000.
