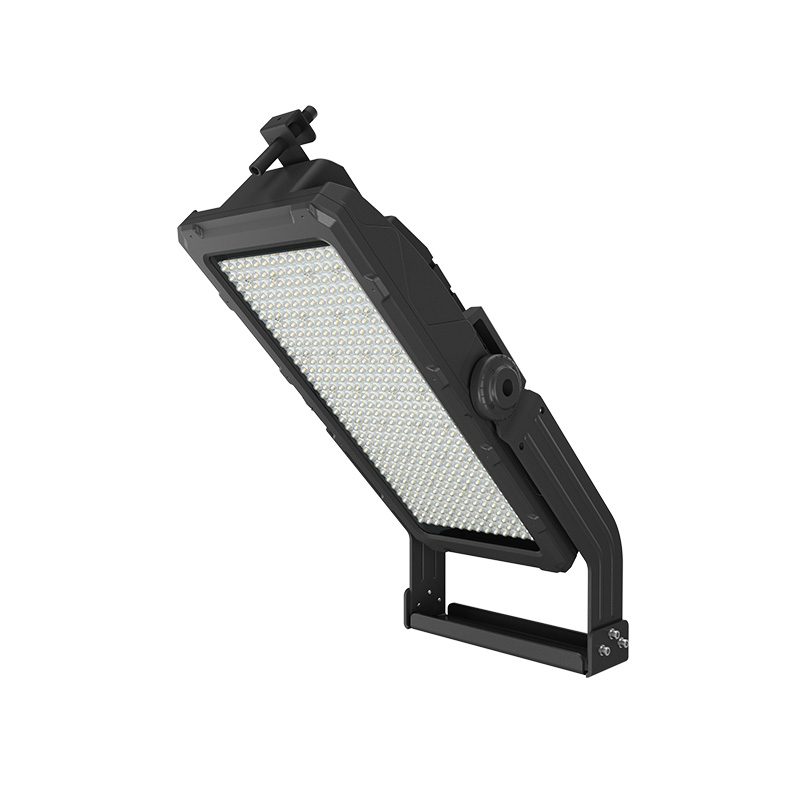

High Mast LED Stadium Light
LED stadium lights are for outdoor lighting. Compared with traditional lamps, stadium lights have higher design requirements. These lamps require higher wattage, a special lens, good heat dissipation, and a higher protection level. Our M series can reach up to 1000W, there are a variety of lenses to choose from, and more die-casting aluminum is used to improve heat dissipation of the lamps, and they are also IP66 and IK10. Its service life is up to 100,000 hours, and we provide 7 years of free after-sales service.
1. Up to 840W, max lumens is 94, 000lm.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement, and maintenance.
4. Mounting bracket for 360-degree adjustment.
5. Multiple lighting control options are available, e.g. DALI, 1-10V.
6. Designed to last at least 100, 000 hours at L70.
7. Multiple lighting distributions are available.
Model | ZGSM-TGD280M |
LED Brand | Philips Lumileds 3030 2D |
Driver Brand | INVENTRONICS EUC Series |
Norminal Wattage | 280W |
LED Quantity | 448 Pcs |
Input Voltage | 100-240/277VAC, 50/60Hz |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | >150lm/w |
Lamp Rated Lumen output | 42000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | Ra>70 |
Color Temperature | 3000K, 4000K, 5000K or 5700K |
Photometric Type | 15, 30,45, 60 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | ‘-40℃~+50℃ |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body and Shell Materials | Stretched Aluminium Alloy |
IP Rating | IP66 with test report |
Certification | CE,ROHS |
Optional Function | 1-10V DC Dimming |
Warranty | 5 years |

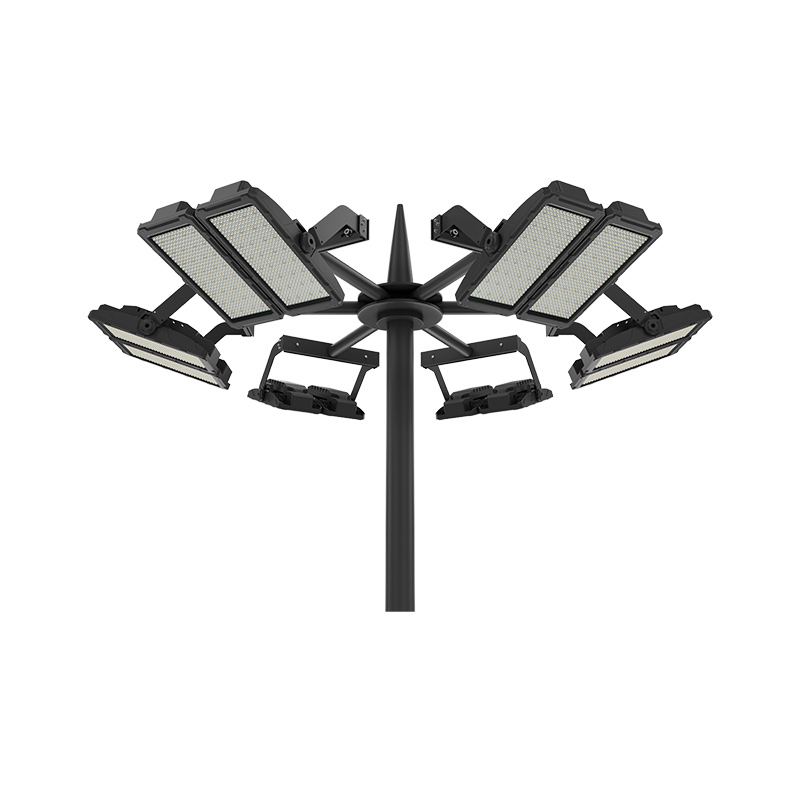

Stadium lights belong to the floodlight series and require large areas of illumination. Because it is often installed on a higher pole, it is also called a high pole light or high mast light. High mast lights are the first choice for stadium lighting. because the advantage of height can maximize the illumination area of the light source at the top, so as to achieve a very ideal lighting effect, and the light range can reach 10,000 square meters.
