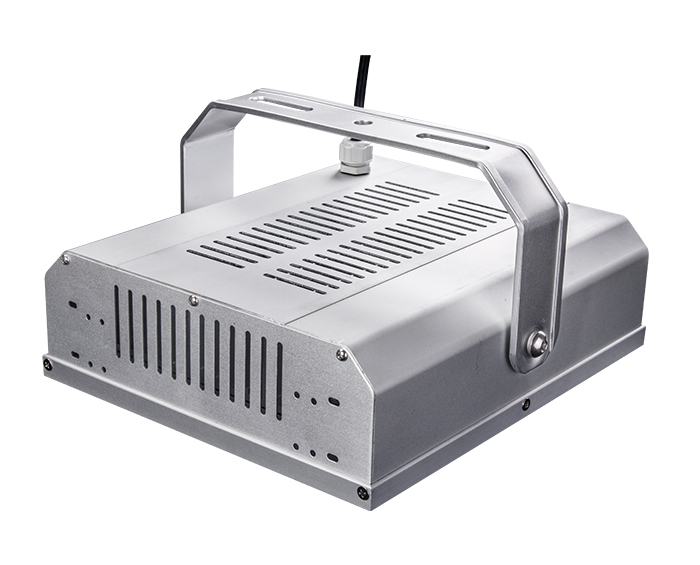

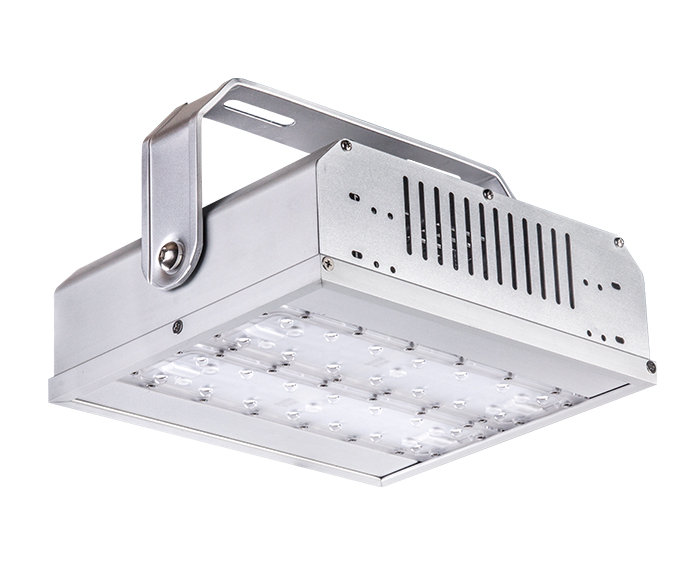

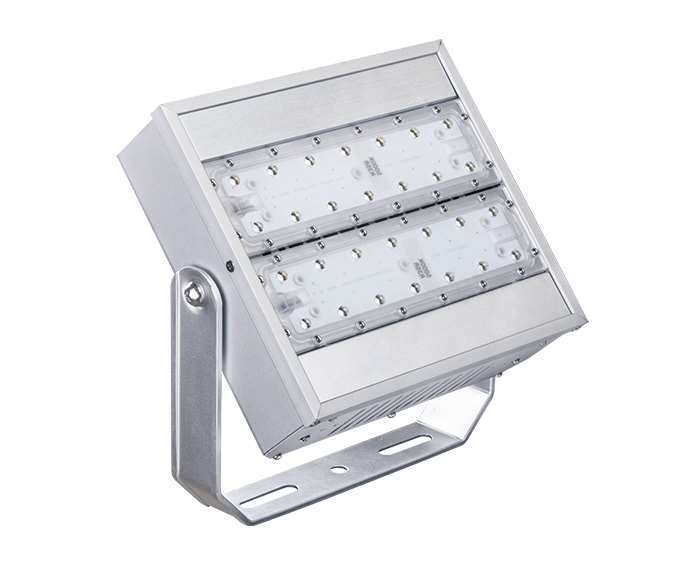

CE UL approved 80w IP66 LED Outdoor Flood Light

The most important thing in the use of outdoor luminaires is waterproof, and the IP66 waterproof rating ensures that your LED Outdoor Flood Light does not succumb to the elements. Has a variety of lighting opening angles, Illuminate those dark spaces with our ultra-bright LED floodlights. Stylish appearance and excellent performance.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

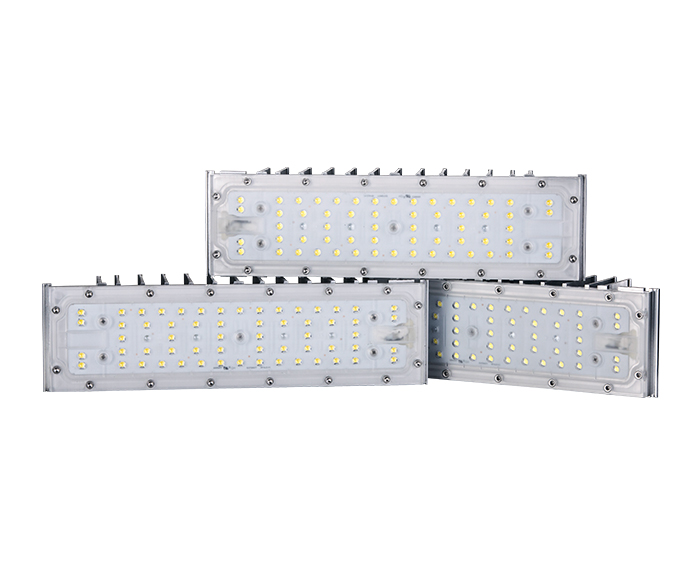

3. Modular design for easy installation, replacement and maintenance.

4.High Lumen output up to 165lm/ w with high quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.

Specifications

Model	ZGSM-FGD80HB
LED Brand	Lumileds LUXEON® TX
Driver Brand	Meanwell HLG series
Normal Wattage	80W
LED Module Quantity	2 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110 lm/w
Lamp Rated Lumen output	8800 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Stretching Aluminum
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

FAQ

what is ip66 in led lights?

For IP66-certified luminaires, such as impermeable LED luminaires, this means that the luminaire is dust-proof, there will be no foreign objects ingressing for 2 to 8 hours, and the luminaire is resistant to rough seas or strong water sprays.

What is the IP rating of an LED lamp?

The IP rating of an LED lamp is a measure of how well the LED lamp protects liquid (water) and solid (dirt, dust, etc.) objects. There are two numbers in the IP rating, the first number (0 to 6) is the reliable IP rating. It shows resistance to solid objects.
