LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting

Jan. 02, 2020

Road lighting is closely related to people's life and travel. With the acceleration of urbanization in China, LED street lights gradually take advantage of directional lighting, low power consumption, good driving characteristics, fast response speed, high earthquake resistance, long service life, and environmental protection entering people's vision and replacing traditional light sources. It has become the world's new generation of energy-saving light sources. Moreover, LED solar street light doesn't need to consume electricity. Therefore, solar LED street light will become the best choice for energy-saving reconstruction of road lighting.


Below are some details of advantages:

  1. One-way Light

    The light of LED  has no light diffusion, ensuring high lighting efficiency.


  2. Unique Secondary Optical Design

    The LED street light has a unique secondary optical design, which illuminates the light of the LED street light to the area to be illuminated, further improving the lighting efficiency to achieve the purpose of energy saving.


  3. High Efficacy

    The LED has reached more than 199lm/W, and there is still a lot of room for development. The theoretical value is 360lm/W. The luminous efficiency of high-pressure sodium lamps increases with power. Therefore, the overall luminous efficacy of LED street lights is stronger than that of high-pressure sodium lamps.

    We could save more than 75% of energy bycompared to traditional high-pressure sodium lamps.


  4. High Color Rendering Index (CRI)

    The color rendering of modular LED road lights is much higher than that of high-pressure sodium lamps. The color rendering index of high-pressure sodium lamps is only about 23, while the color rendering index of LED street lamps reaches above 75. From the perspective of visual psychology, the same brightness can be achieved. Reduced by more than 20% than high-pressure sodium lamps.


  5. Low Light Decay

    The light decay of solar LED street lights is less than 3% in one year, and it still meets the road requirements after 10 years of use. While the light decay of the high-pressure sodium could be more than 30% in one year.


  6. Smart Control Available

    LED street lights have automatic control energy-saving devices, which can achieve the maximum possible power reduction and energy saving when meeting lighting requirements in different periods. Humanized functions such as computer dimming with a smart control system, time-phased control with a dimming driver, light control with a photocell, temperature control, and automatic inspection can be realized.


    LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting

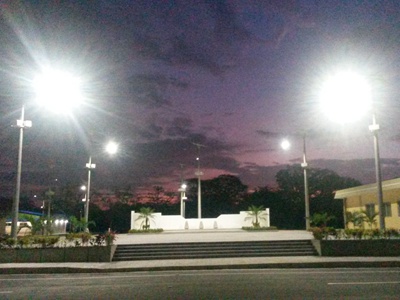

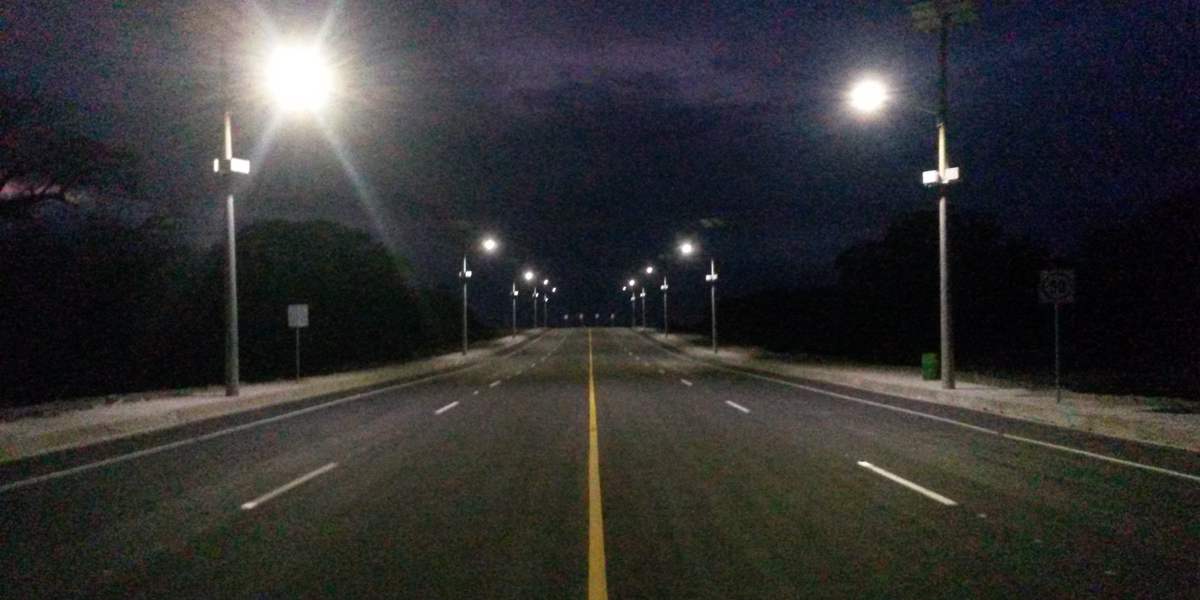

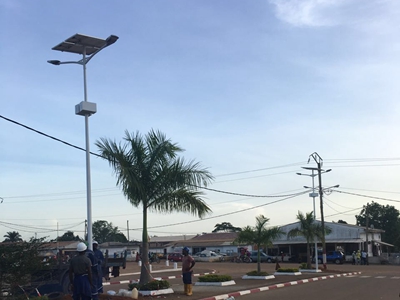

    Solar Street Light Project In Ecuador

  7. Long Lifetime

    LED Street Lights can be used for more than 100,000 hours. The lifetime doesn't mean not fail in 100000 hours. It means the total lumen output of LED street lights could remain more than 70% after working for over 100000 hours.

    We provide 3-7 years warranty to different LED lighting products.


  8. Easy Installation

    No need to bury cables or add rectifiers, directly connect to the lamp pole or nest the light source into the original lamp housing, convenient and safe.


  9. Excellent Heat Dissipation Control

    LED lights have a excellent heat dissipation performance. It's available to be applied to the areas with hot weather, such as Africa, the Middle East, South America, and so on. Some special designed LED lights could also be used to hot environments such as such as steel mills, chemical plants and so on.


  10. Reliable Quality

    All the components of LED lights we use are high quality and reliable.

    The drivers we use are Meanwell, Inventronics, Philips, Osram, Done and so on.

    The LED chips we use are Lumileds, Osram, Bridgelux and so son.

    For UL led lights we has separate overcurrent protection, making it safer.


  11. Uniform Light Color

    The uniform light color is not sacrificed to improve brightness, thereby ensuring uniform light color without aperture.


  12. Environmentally Friendly

    LED does not contain harmful metal mercury, which will cause harm to the environment when scrapped. It would be good to our environment by replacing old HPS lamps with LED lights.


  13. Low Maintenance Cost

    Compared with traditional street lamps, LED street lamps have extremely low maintenance costs. After comparison, the entire investment cost can be recovered in less than 2 years.


After reading the advantages of the above LED lamps, it is not difficult to understand why the world is now carrying out lighting upgrades, replacing traditional lamps with LED lamps. ZGSM is a professional manufacturer of LED lighting products, including LED Street Lights, Solar Street LightS, LED Highbay Lights, LED Floodlights, LED Canopy Lights, LED Tunnel Lights, LED Stadium Lights, LED Gas Station Lights and so on.

Here we want to introduce our solar street lights to you.


Video




Specification


ModelLD40H4LD50H5LD60H6LD80H4LD100H5
Power40W50W60W80W100W
Lumen5600-6600LM7000-8250LM8400-9900LM11200-13200LM14000-16500LM
Warranty3 YEARS3 YEARS3 YEARS3 YEARS3 YEARS
PanelsMono 100w x1Mono 120w x1Mono 100wx2Mono 120wx2Mono 150wx2
Battery150AH x 1180AH x 1150AH x 2180AH x 2200AH x 2
Controller10A/12v10A/12v10A/24v10A/24v15A/24v
Pole height4-6m4-6m6-8m8-10m8-12m
Pole distance9~14m12-21m18-25m24-30m24-36m
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
ControlDaylight sensor, Timer
CertificationCE, ROHS, LM80


Download


Data Sheet_SolarStreetLight.pdf



Related Products


LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting

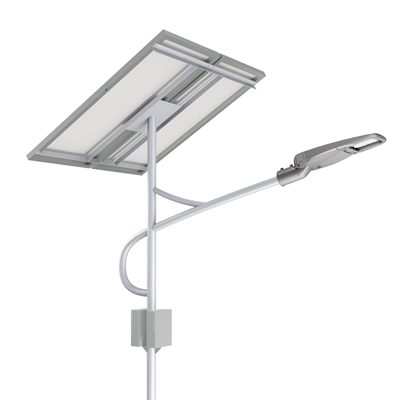

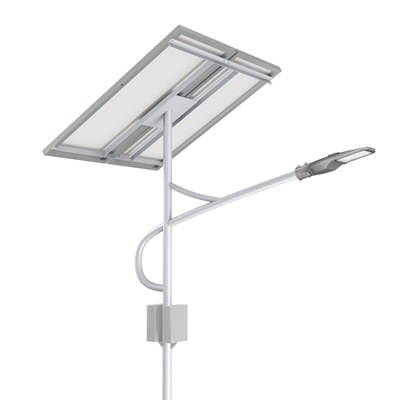

28-57W China LED Solar Street Light ManufacturerFactory Price 30-120W LED Solar Street LightWaterproof 25-120w Solar Powered Street Light
LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting

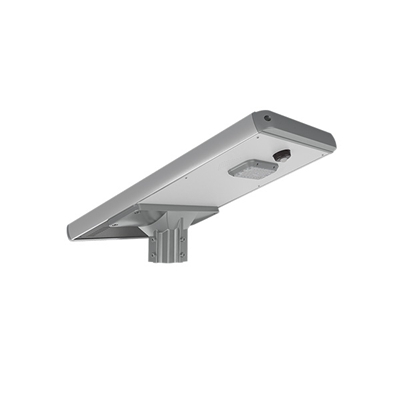

Lithium Battery 10W Solar Powered LED LightsOutdoor IP65 40W Solar LED Street Light

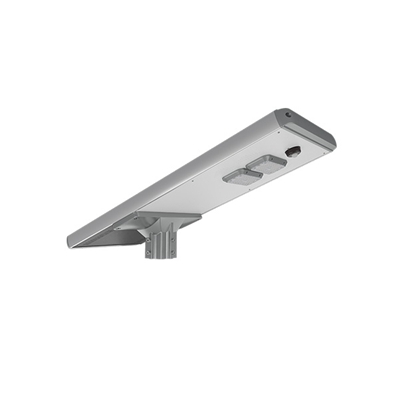

50w Integrated Solar Street Light With 40AH Battery



Related Projects


LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting

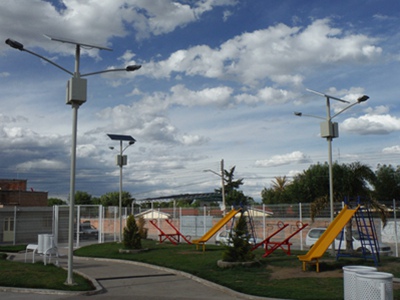

Solar Street Light Project In EcuadorSolar Street Light Project In ChinaSolar Street Light Project In Mexico
LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting
Solar Street Light Project In CameroonIntegrated Solar Street Light Project In UAESolar Street Light Project In France


Related Blogs


LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting

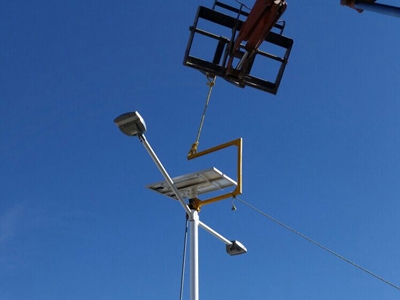

6 Things Must Know about Solar Street LightSolar Street Light Installation Method

Talk about the price of solar street lights

 (Part 2)

LED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road LightingLED Solar Street Light, The Best Choice For Energy Saving Reconstruction Of Road Lighting
The Use Environment of Different Solar Street Lights

How to choose a high-quality

 LED solar street lamp manufacturer?

Solar Led Street Lamp Common Fault Repair

(Part 2)


People Also Ask


  1.  What is Solar Street Light?

    Solar street lights usually consist of LED street lights, solar panels, rechargeable batteries, charge and discharge controllers, poles, etc. Solar street lights are elevated light sources that are powered by solar panels that are either positioned on the lighting structure or built into the pole itself. During the daytime, the solar panels charge a rechargeable battery, which powers a fluorescent or LED lamp in the evening.


  2. What are the advantages of All In One Solar Street Lights compared to Solar LED Street Lighting System?

    - Better Price. The smart design makes All In One Solar Street Light have a better price, which could also save freight costs.

    - Easier to install. The integrated design makes it no need to purchase connect extra wires, and easier to be installed individually.

    - More convenient for shipping. The all-in-one design makes it easier to pack and ship.


  3. Why are solar lights flashing?

    If your solar lights continue to blink or flash, there's a good probability they're not getting enough sunshine to generate enough charge. It's also possible that the batteries are outdated and unable to maintain a sufficient charge, or that there is dirt on the panels preventing sunlight from reaching the panels.
