LED Canopy Light

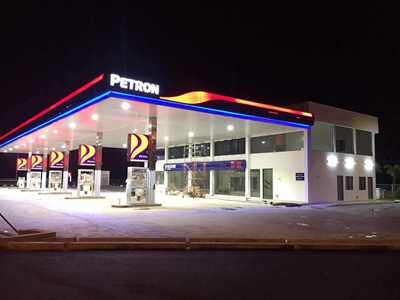

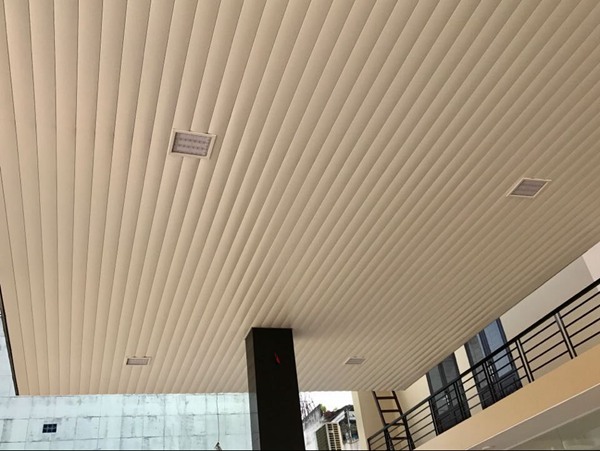

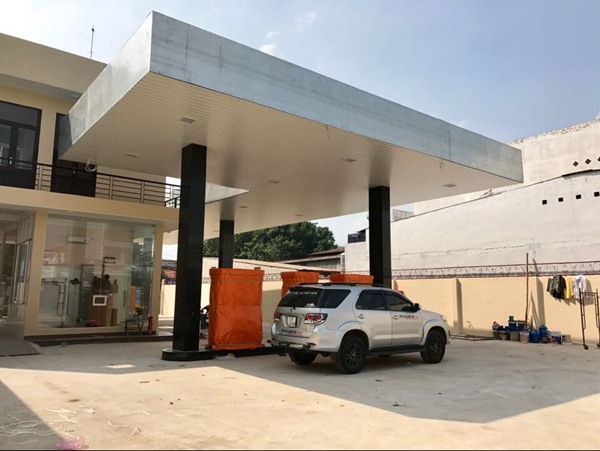

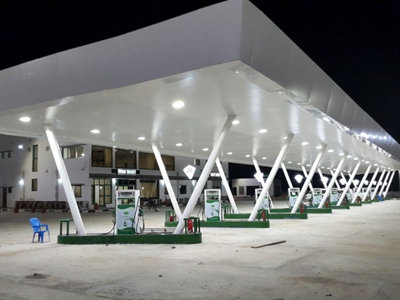

LED canopy lighting project in Vietnam, which was put into use in 2017. After the DIALux simulation, we recommend our customer to install 30pcs of 120W A series explosion proof LED Canopy Lights with 5700K CCT and 110-degree beam angle. The color temperature of 5700K makes the gas station white and bright. The CRI of LED chips is >80 so that the petrol station could look more like what it really is. We choose 110 degree beam angle because it could not only make full use of all the lumen output of lamps but also make the lumen output more even and look more comfortable. As long as you provide us with detailed information and requirements for projects, we will give you a professional lighting solution.

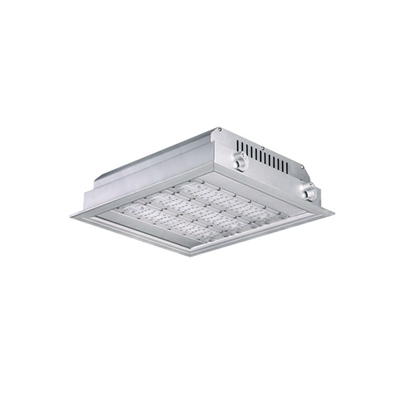

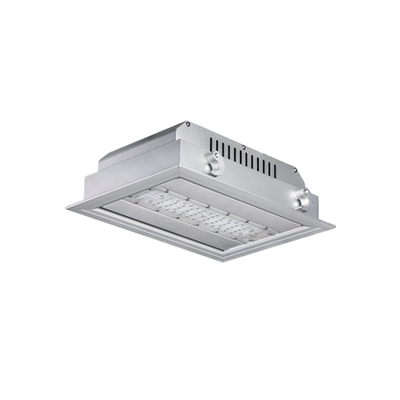

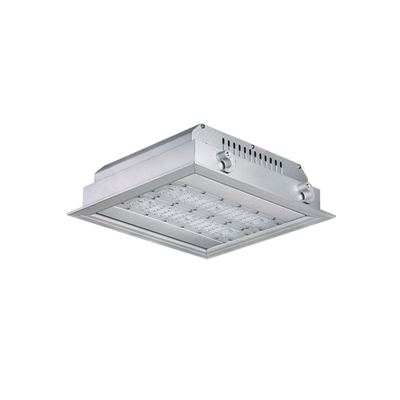

Product: 120W LED Canopy Light
Model No.: ZGSM-QD120A4
LED: Lumileds 3030
Driver: Meanwell
CCT: 5700K
Optics: 110 degrees
Installation Height: 6 meters
QTY: 30 Units
| Model | ZGSM-QD120A4 |
| LED Brand | Lumileds LUXEON 3030 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 120W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140 lm/w |
| Lamp Rated Lumen output | 16800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP65 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | White |
| Warranty | 7 years |
Installation Manual_CanopyLightforGasStationLighting_A.pdf
Data Sheet_CanopyLightforGasStationLighting_A.pdf
 |  |  |
| Guide to Buy Led High Bay Light | The Advantages Of Led High Bay Light | |
 |  |  |
| How does the LED street light work? | Buying LED Street Lights Must Know These Points | The Installation Distance Of LED High Bay Light |

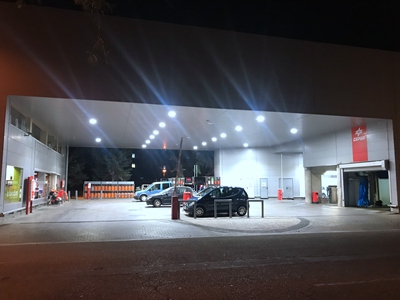

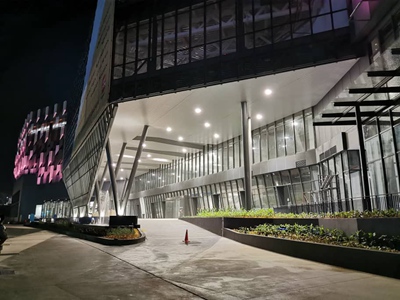

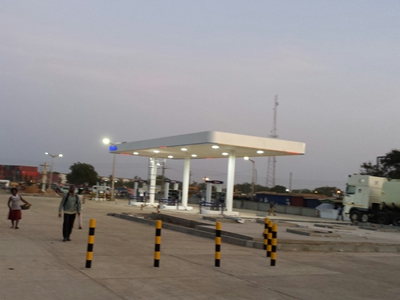

For commercial outdoor applications, LED canopy lights are surface mounted or recessed fixed ceiling lights. LED canopy lights provide security and ambient illumination for parking garages, petrol stations, and covered pathways.
LED lights are incredibly energy efficient, which is their most significant advantage. When compared to incandescent or halogen lamps, LED bulbs use 90% less energy. Longer longevity: When compared to regular light bulbs, LED bulbs have a substantially longer lifespan.
They use roughly 80% less energy than the incandescents they replace while providing the same brightness. CFLs use a little less energy than LEDs.
