LED Canopy Light

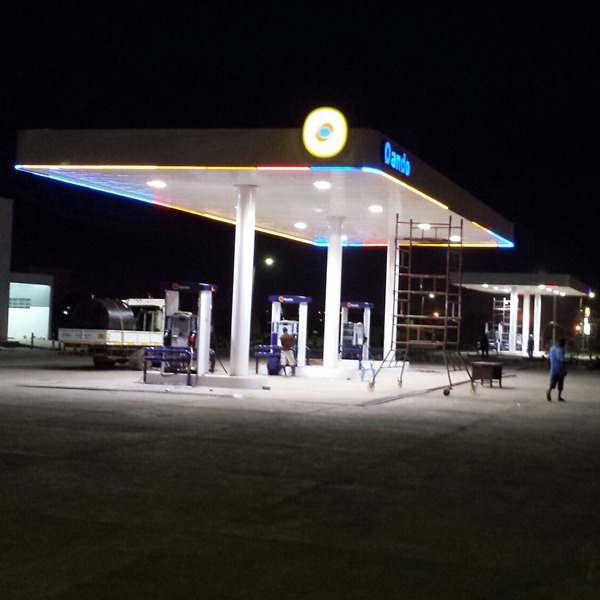

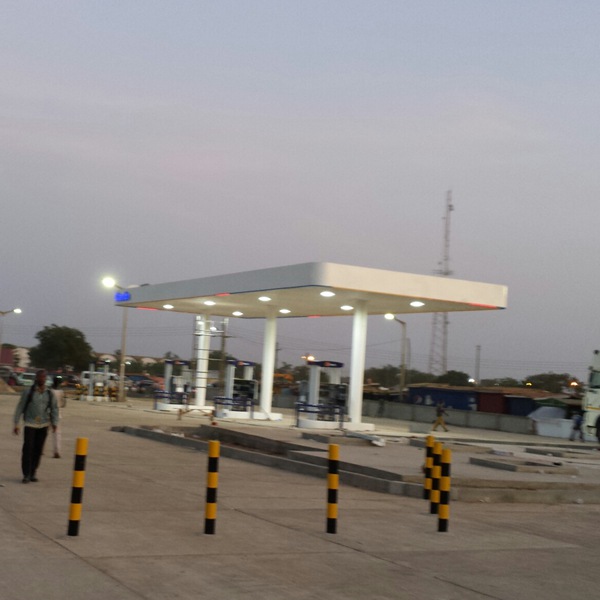

The LED canopy gas station lighting project in Ghana was completed in 2016. About 80 units of 80W H Series LED canopy lights were installed in this project. The reasonable heat sink design could keep ventilation. It helps to achieve a great heat dissipation performance for the H series canopy LED lamp so that it's OK to work in such hot weather in Ghana. The explosion-proof design of the H series LED canopy lighting fixture ensures it's safe to work in specific places like gas stations and petrol warehouses. It has passed the explosion-proof test and got the ATEX certificate issued by ECM.
Product: 80W LED Canopy Lights
Model: ZGSM-QD80H4
LED: Lumileds 3030
Driver: Meanwell
CCT: 5000K
Optics: 110 degrees
QTY: 80 Units
| Model | ZGSM-QD80H4 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 11200-13200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80,ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_CanopyLightforGasStationLighting_H.pdf
Data Sheet_CanopyLightforGasStationLighting_H.pdf
 |  |  |
 |  |  |
| Guide to Buy Led High Bay Light | Why Does Led Use High Bay Light? | Types And Advantages Of LED High Bay Lights |
For commercial outdoor applications, LED canopy lights are surface mounted or recessed fixed ceiling lights. LED canopy lights provide security and ambient illumination for parking garages, petrol stations, and covered pathways.
Many aspects, such as canopy type, ceiling height, number of pumps, area layout, and ambient light, influence why and which led light fixture to purchase, based on the application and purpose of what you're lighting.
From the road, potential buyers will notice your canopy illumination first. Customers, particularly females, would typically pull into the brightest station they feel safe in to pump gas at night, making commercial outdoor lighting fixtures one of the most critical considerations in recruiting business.
Led canopy lights provide a bright, clear light that enhances the appearance of your petrol station canopy and forecourt. One of the quickest and simplest changes you can make to your ceiling canopy is to install outdoor led lighting.
Choosing the Right Size of Light Fixtures
Measure the width and length of the room for ambient lighting. Then add them up and translate to inches to get the perfect light fixture size. In an 810 square foot space, an 18-inch wide fixture, for example, would be ideal.
