LED Canopy Light

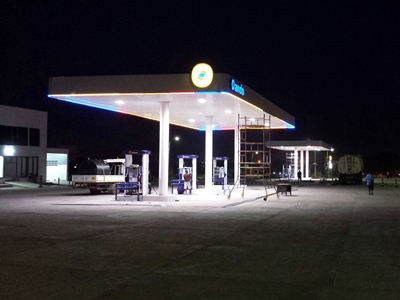

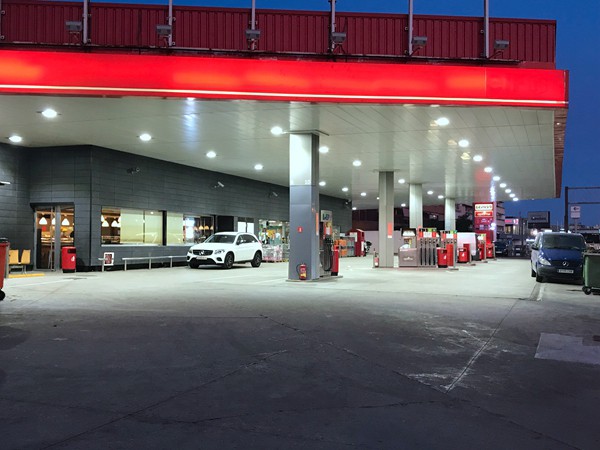

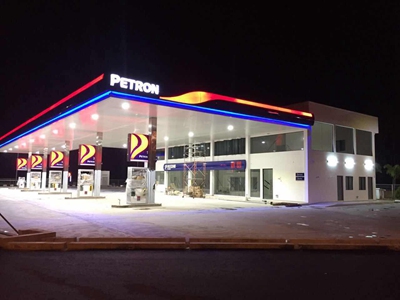

LED gas station canopy lighting project in Spain, finished in 2018. Depending on the information of the petrol station, we provided a solution of 56pcs ZGSM 120W H Series modular design outdoor LED canopy lights after DIALux calculation. 16800lm output and 5000K CCT make the gas station look brighter. The beam angle of 90 degree ensures we could make full use of lumen output. 1-10V dimmable Meanwell driver works together with motion sensor, to make it more energy-saving. It could work under 30% power when no persons/cars and turned to 100% power when inducing persons/cars. After replacing old lamps with H Series LED canopy lights, the lighting conditions of the gas station have improved by 50%, and the energy consumption has been reduced by 60%。

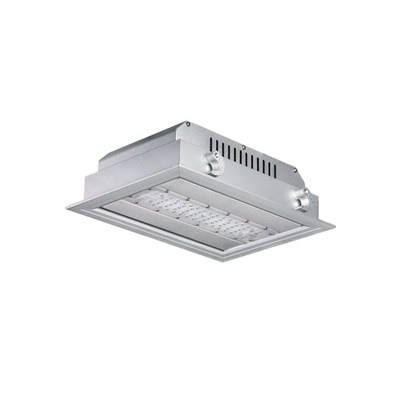

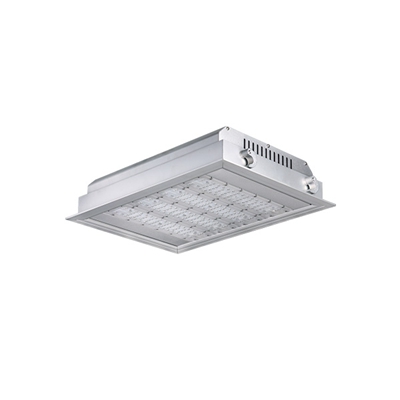

Product: 120W LED Canopy Light
Model No.: ZGSM-QD120H4
LED: Lumileds 3030
Driver: Meanwell HLG
CCT: 5000K
Optics: 90 degrees
Accessory: Motion Sensor
QTY: 56 Units
| Model | ZGSM-QD120H4 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 120W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 16800-19800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | 60, 90, 110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80, ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_CanopyLightforGasStationLighting_H.pdf
Data Sheet_CanopyLightforGasStationLighting_H.pdf
 |  |  |
| How to choose LED Gas Station Lights? | How To Choose A Good LED High Bay Light？ | |
 |  |  |
Outdoor canopy lights are frequently installed under an overhang. The region beneath these lamps is illuminated by these fixtures. Clear lenses focus the light, whereas frosted lenses disperse the light, decreasing glare and illuminating a larger area. They are long-lasting and, in many cases, weather- and tamper-resistant.
LED lights are incredibly energy efficient, which is their most significant advantage. When compared to incandescent or halogen lamps, LED bulbs use 90% less energy. Longer longevity: When compared to regular light bulbs, LED bulbs have a substantially longer lifespan.
- Easy to maintain. It only needs to replace the broken module when one of LED modules is broken, convenient and cost effective.
- Gaps between the modules will increase the thermal dissipation rate and solve the problem of dust deposition.
- The LED modules could be used to different modular designed models and combined to different wattages you demand.
- If one of modules broke in the lamp, it won't affect other LED modules.
