LED Flood Light

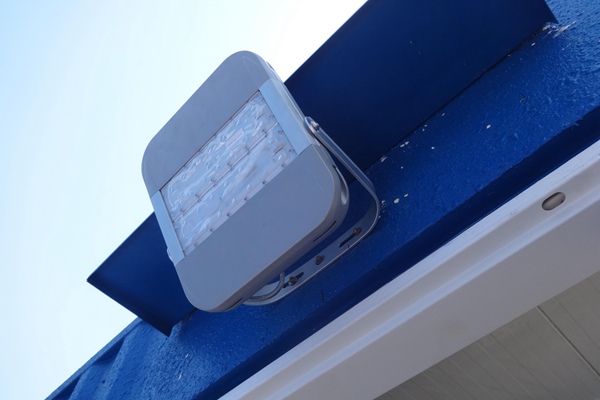

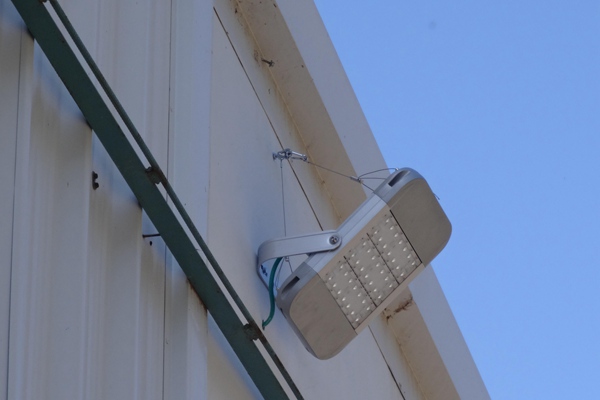

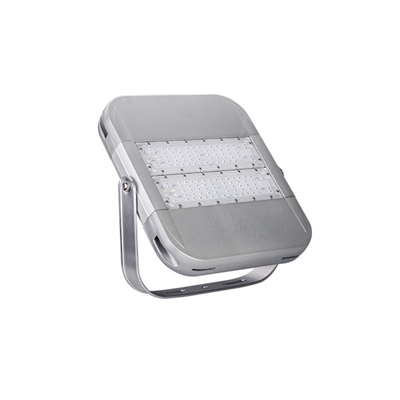

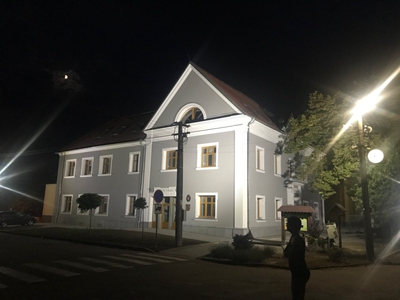

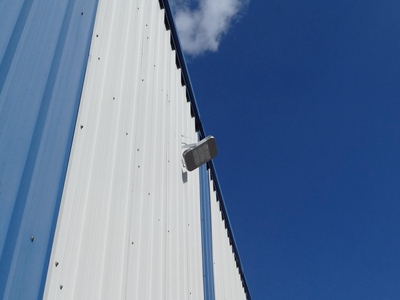

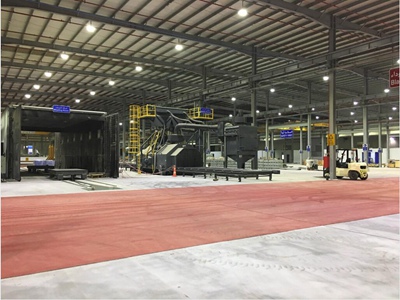

Outdoor LED flood lighting project in Israel, which is finished in 2016. Clients purchased more than 100 units of 80W & 120W H Series SMD LED Flood Lights. The waterproof design makes it no worry to work outdoor, which is IP66 approved. PC lens of 90-degree beam angle helps to focus most of the light to where we want to illuminate. H Series outdoor Flood Lights have two kinds of mounting brackets: the short one used as LED high bay lights and the long one used as LED Flood lights. Certified by CE, RoHS, ENEC, CD, UL, DLC, H Series Flood LED Light is compatible with both the Europe markets and America markets. We provide up to 7 years warranty for our H Series outdoor LED Flood lights.

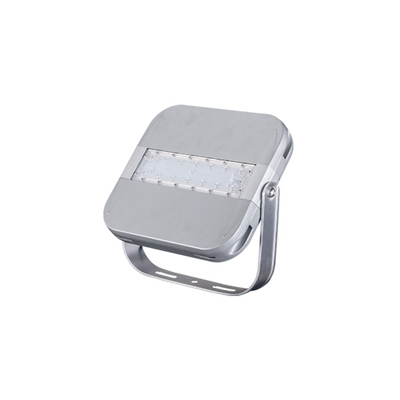

Products: 80W & 120W LED Floodlights
Model No.: ZGSM-FGD80H, ZGSM-FGD120H
LED: Lumileds LUXEON® TX
Driver: Meanwell
CCT: 5700K & 4000K
Optics: 90 degrees
QTY: 100 Units+
| Model | ZGSM-FGD80H |
| LED Brand | Lumileds LUXEON® TX |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110 lm/w |
| Lamp Rated Lumen output | 8800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&Flood&TunnelLight_H.pdf
Data Sheet_HighBay&Flood&TunnelLight_H.pdf
 |  |  |
| What Is LED Flood Light? | The Features Of LED Flood Light | Why Are LED Flood Light Popular In The Market? |
 |  |  |
In comparison to incandescent lights, LED bulbs use more than 75% less energy. The disparity is significantly more pronounced at low power levels. Bright LED flood lamps consume only 11 to 12 watts while producing the same amount of light as a 50-watt incandescent bulb.
A defective power supply could be the cause of the LEDs not lighting up at all. Whether you have multiple power supplies, try plugging in a different one to the same strip to check if it now works. If it does, you've got a faulty power supply and will need to replace it.
Low Lumens (1,600-4,000) — LED Flood Lights with a brightness output of 1,600 to 4,000 are perfect for lighting small outdoor areas such as a staircase, walkway, and so on. These are frequently used for residential and modest commercial purposes. Medium Lumens (4,000-10,000) — A brightness range of 4,000 to 10,000 lumens is considered medium.
If you have any other requirements or need technical support, pls kindly check our other products or contact us for more details.
