LED Flood Light Project In Ecuador

The bus station lighting project In Ecuador was finished in 2017. It selected ZGSM 240W modular design H Series outdoor LED flood lights to replace 500W old HPS lamps. As the voltage of power supply in this project is 347VAC, we chose the programmable INVENTRONICS high voltage driver, which is available to work under 249~528VAC, for our LED floodlights. The lighting of the bus station was greatly improved after our H series flood LED lights were put into use. It makes drivers safer to drive and stop buses.


Product Details


Product: 240W LED Outdoor Flood Light

Model No.: ZGSM-GCD240H

LED: Lumileds Luxeon TX

Driver: Inventronics high voltage driver

Voltage: 347V AC

CCT: 5700K

Optics: 110degree

QTY: 80 Units+


Video





Project Photos

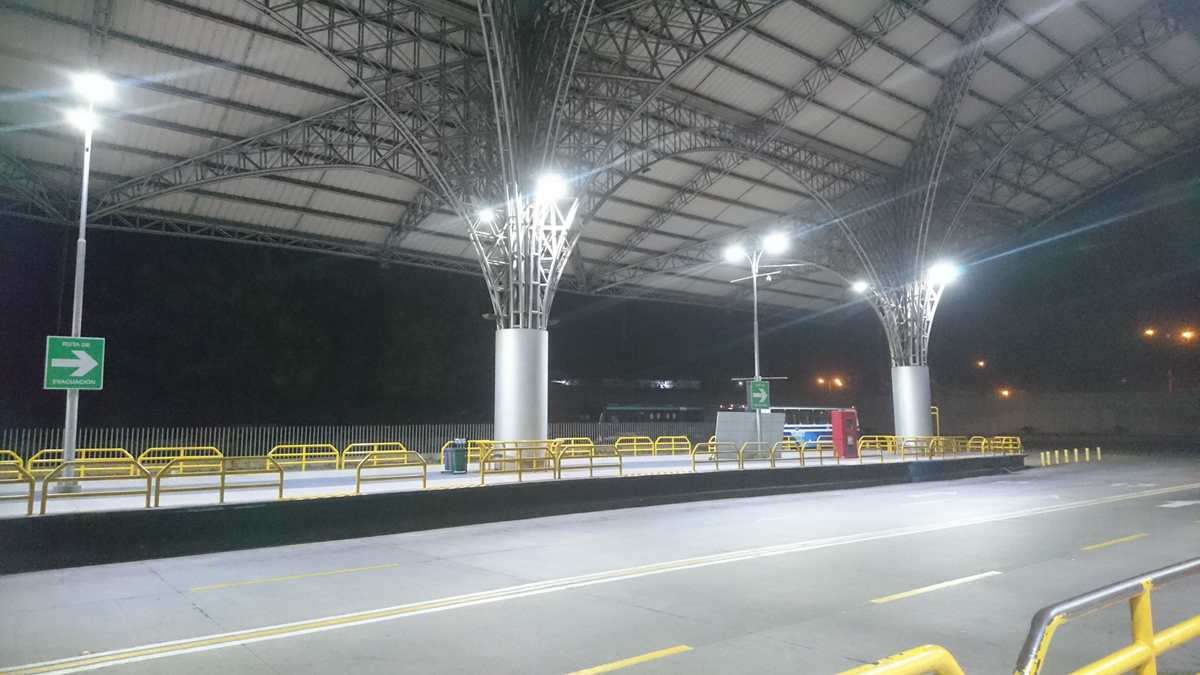

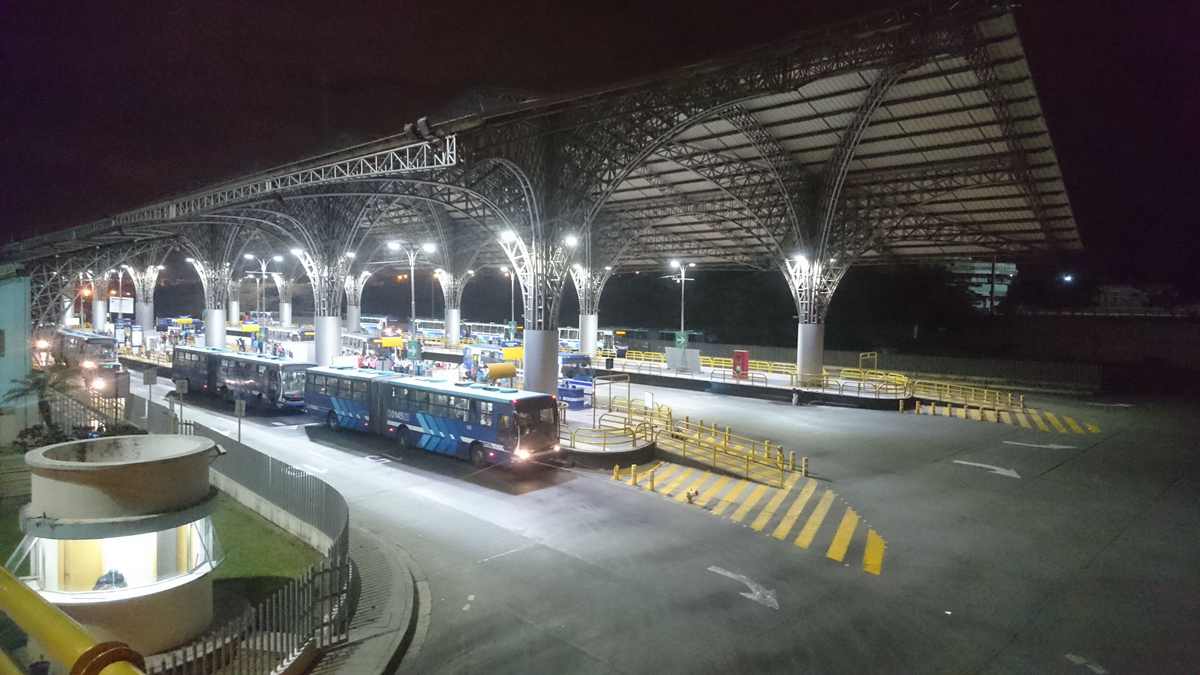

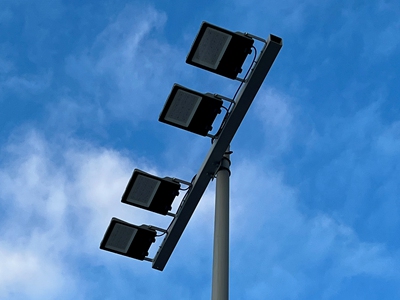

LED Flood Light In Ecuador

LED Flood Light In Ecuador


Specification


ModelZGSM-GCD240H
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell/Inventronics
Norminal Wattage240W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output26400 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf


Related Products


LED Flood Light In EcuadorLED Flood Light In EcuadorLED Flood Light In Ecuador

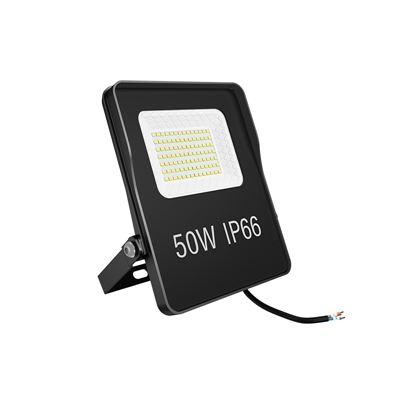

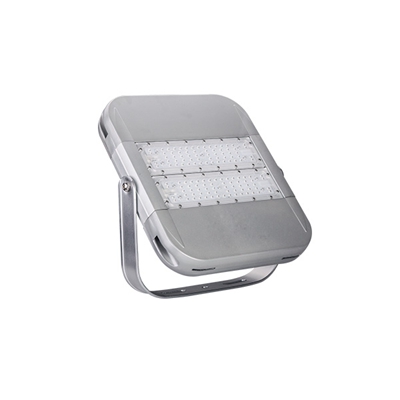

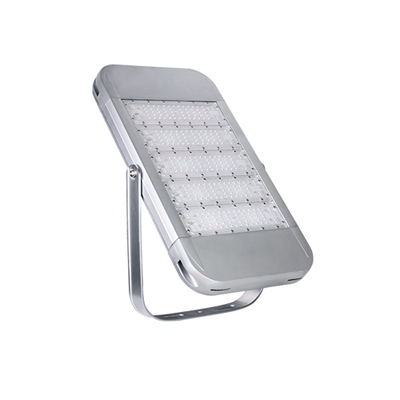

100W Outdoor LED Flood LightsIP66 IK10 240W LED Flood Lights Outdoor50W Floodlights With PIR Sensor
LED Flood Light In EcuadorLED Flood Light In EcuadorLED Flood Light In Ecuador

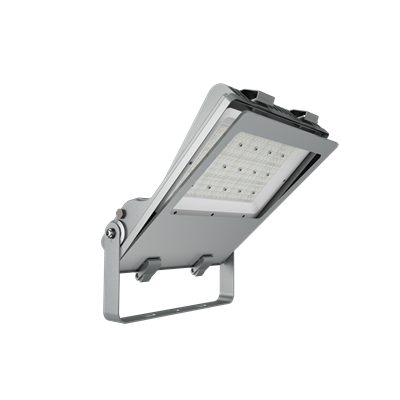

Outdoor 200W IP66 Flood LightsOutdoor Smart 80W LED Flood Light250w Outdoor Floodlight For Football Field
