LED Flood Light

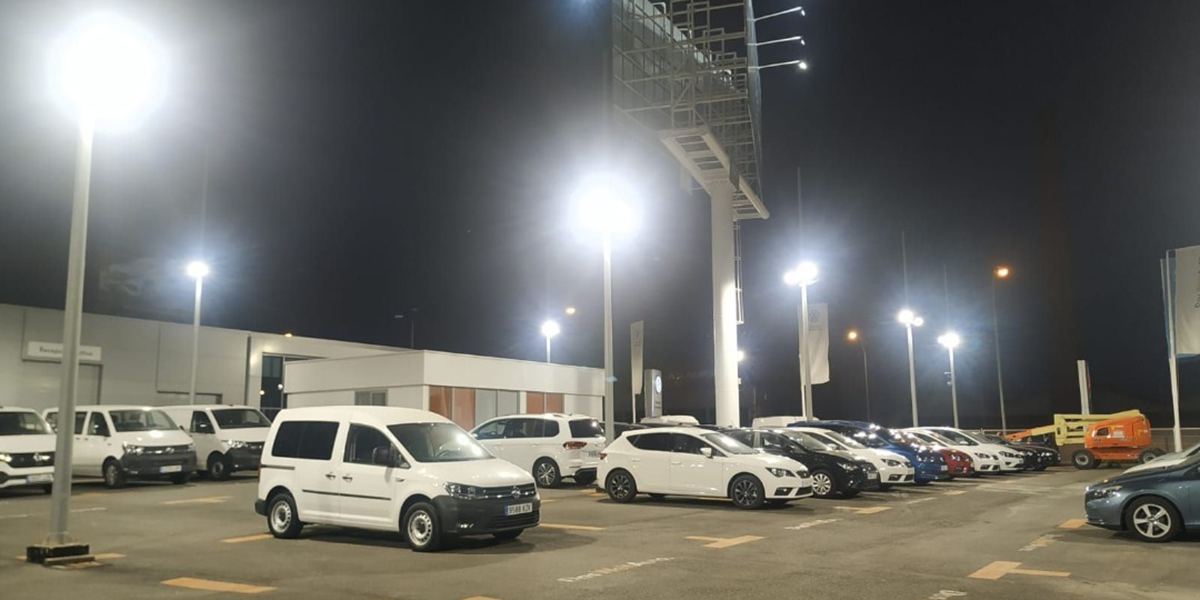

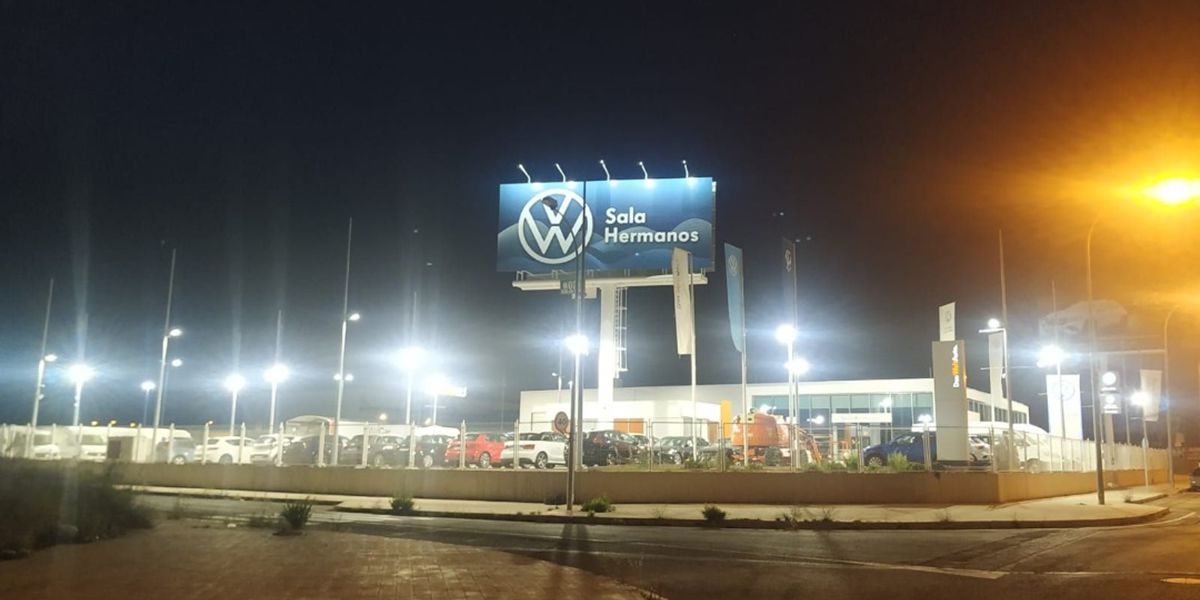

The Volkswagen 4S store parking lot lighting project in Spain was finished in 2021. It adopted ZGSM's latest developed Zoom series LED Floodlight with the tool-less open design. It's very convenient for you to install and maintain. The 240W Zoom series LED Flood lights in this project use high-efficacy Lumileds 5050 LED chips. The luminous efficacy of floodlights could be up to 170lm/W. The Volkswagen 4S store is 50% brighter than before after installing our Zoom series flood LED lights. The improved lighting conditions allow them to better present the car to their customers.

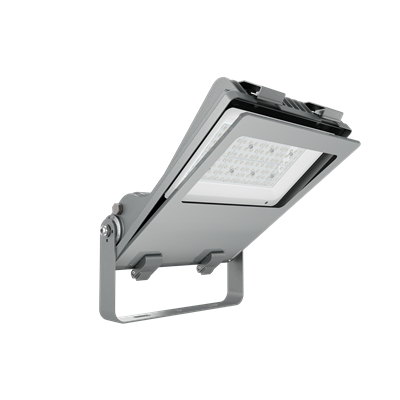

Product: 240W LED Flood Light
Model No.: ZGSM-FL07-240L
LED: Lumileds 5050
Driver: Inventronics
CCT: 5000K
Optics: T3S55006
QTY: 250 Units
| Model | ZGSM-FL07-240L |
| LED Brand | LUMILEDS 3030 or 5050 |
| Driver Brand | Inventronics (Default) / Other brands on request |
| Normal Wattage | 240W |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-150lm/w |
| Lamp Rated Lumen output | 33600-36000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | 25°, 60°, 90°, 120°, or Asymmetrical |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | High-pressure die-cast aluminum |
| Cover | Tempered glass |
| Rating | IP66 IK09 |
| Protection | Class I (Default) /Class II |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21 |
| Dimming Options | 1-10V Dimming (Default) /Timer Dimming |
| Control Options | Photocell, Motion sensor |
| Color Options | Gray (Default) /Black (available on request) |
| Warranty | 5 years |
Installation Manual_FloodLight_Zoom.pdf
 |  |  |
| What Is LED Flood Light? | The Features Of LED Flood Light | The Main Application Areas Of LED Flood Light |
 |  |  |

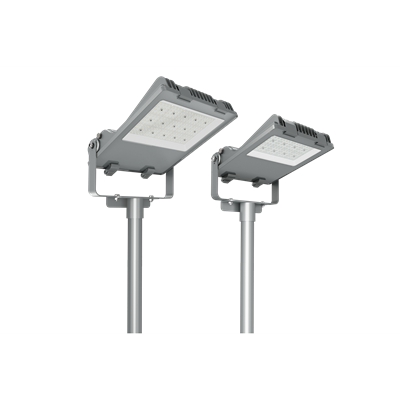

They come with an adjustable mounting bracket that allows you to modify the angle of the deluge. They don't need a pole or a particular mount because of this.
Standard screws and plugs should enough for the installation.
Fitting and wiring instructions are included with our high-quality LED flood lights.
Spotlights are used to light up smaller regions or objects and have a tighter beam angle. Floodlights have a bigger beam and are used to illuminate larger regions.
LED floodlights are strong, long-lasting, and produce no toxic waste. They also reduce the need for frequent bulb changes. When you use an LED floodlight, you can save up to 80% on electricity costs. Unlike other options, LED floodlights do not contain mercury or lead, and emit no toxic emissions such as carbon.
