LED Flood Light

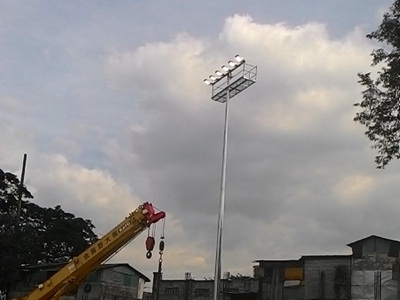

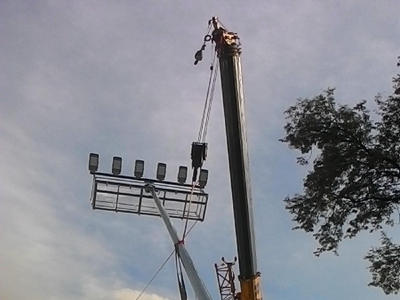

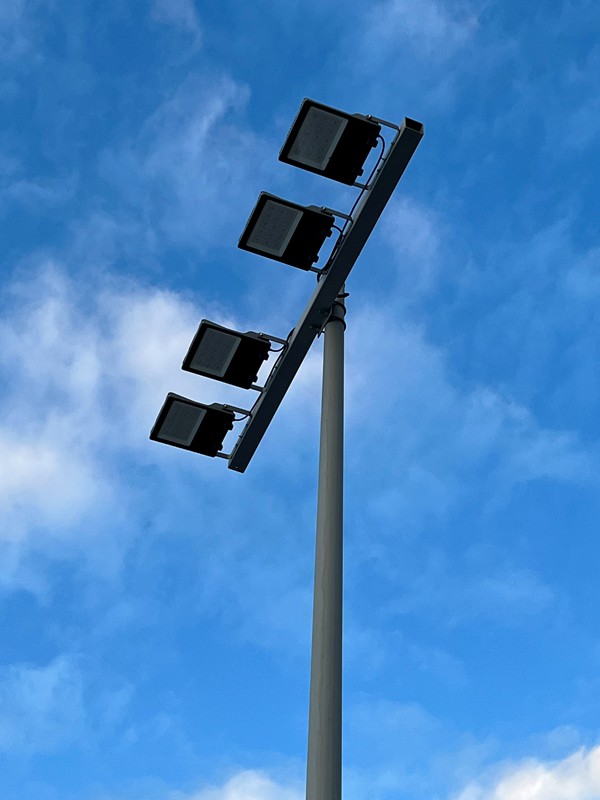

The city square lighting project in Greece was completed in January 2022. After the DIALux lighting simulation, we provide a solution of 83 units of 200W Zoom series LED Flood Lights to light the whole square. The angle-adjustable bracket allows Zoom series LED flood lights to be installed on the high mast pole. More than 10 kinds of beam angles could meet different lighting requirements. Certified by IP66 & IK10, our Zoom series flood LED lights could be used for outdoor lighting.
Product: 200W LED Flood Light
Model No.: ZGSM-FL07-200L
LED: Lumileds 3030 2D chips;
Driver: Inventronics EUM series;
CCT: 4000K;
Optics: T3S53003
QTY: 83 Units
| Model | ZGSM-FL07-200L |
| LED Brand | LUMILEDS 3030 OR 5050 |
| Driver Brand | Inventronics (Default) /Other brands on request |
| Normal Wattage | 200W |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-155lm/w |
| Lamp Rated Lumen output | 29000-31000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | 25°, 60°, 90°, 120°, or Asymmetrical |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | High-pressure die-cast aluminum |
| Cover | Tempered glass |
| Rating | IP66, IK09 |
| Protection | Class I (Default) /Class II |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21 |
| Dimming Options | 1-10V Dimming (Default) /Timer Dimming |
| Control Options | Photocell, Motion sensor |
| Color Options | Gray (Default) /Black (available on request) |
| Warranty | 5 years |
Installation Manual_FloodLight_Zoom.pdf
 |  |  |
| What Is LED Flood Light? | The Features Of LED Flood Light | The Main Application Areas Of LED Flood Light |
 |  |  |
In comparison to incandescent lights, LED bulbs use more than 75% less energy. The disparity is significantly more pronounced at low power levels. Bright LED flood lamps consume only 11 to 12 watts while producing the same amount of light as a 50-watt incandescent bulb.

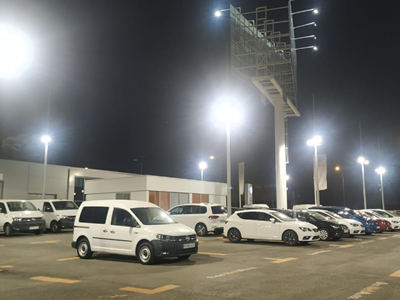

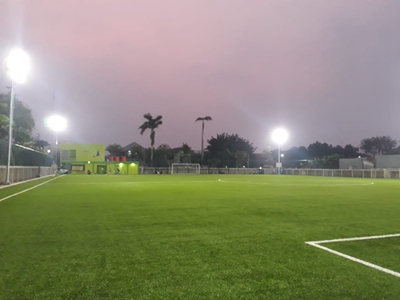

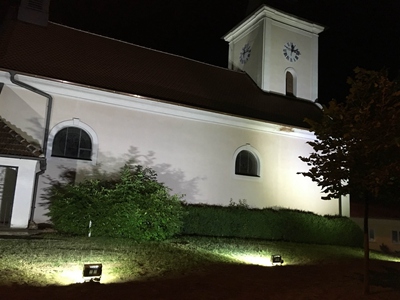

Floodlights are utilized in a variety of locations, although they are most commonly employed for outdoor lighting. They are used for home and business security, to emphasize building design or landscapes, in retail to highlight the sign or name of the company, and in sporting stadiums and car parks to light up the field, court, and surrounding area.
The letters K, which stand for Kelvin and indicate the actual temperatures as determined by the Kelvin scale, stand for Warm White and Cool White. Cool White is closer to 5000k than Warm White, which is roughly 3000k. On a scale, warmer values fall lower and cooler values higher.
If you don't know which CCT to choose for your LED projector lights, pls contact us for professional advice.
