LED Gas Station Light

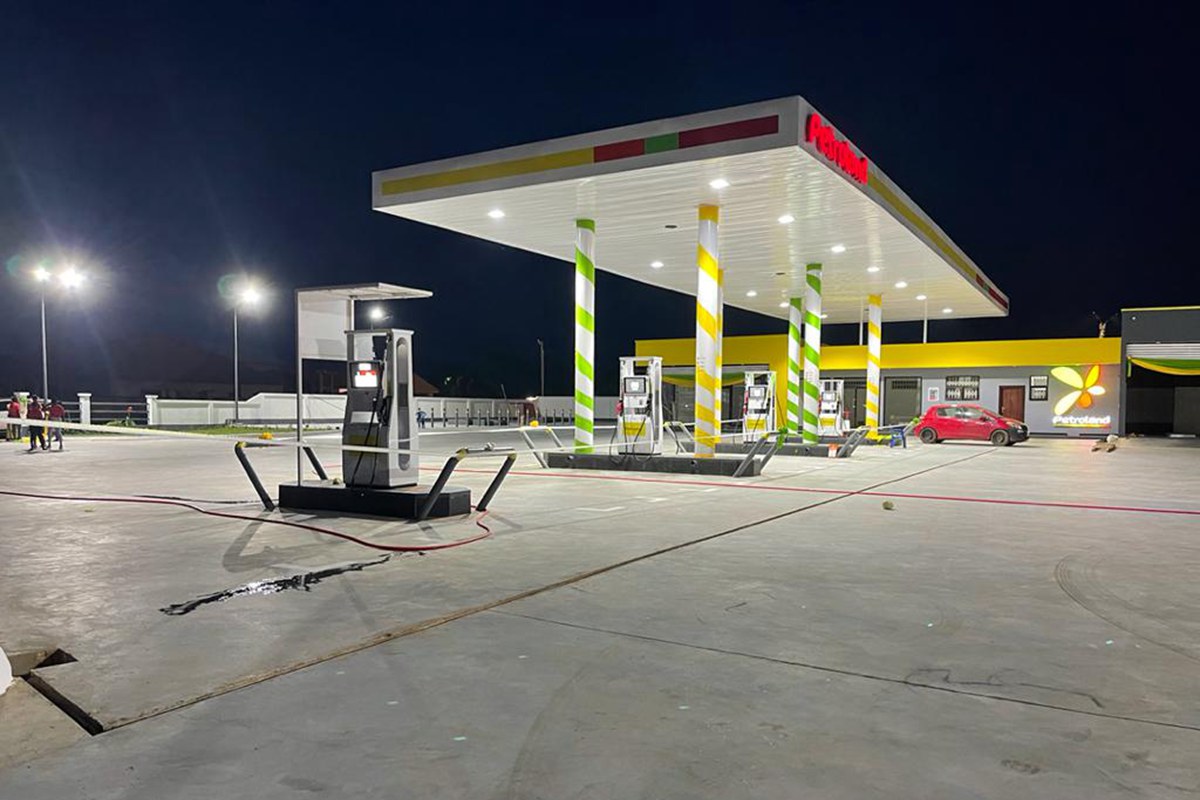

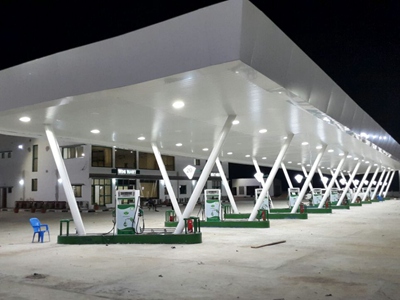

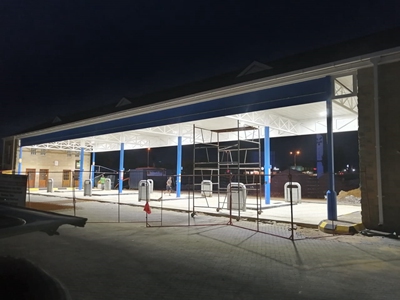

LED gas station lighting project in Ghana, which was finished in 2021. This project is equipped with ZGSM latest developed Primo series LED petrol station canopy light. Primo series LED canopy lights could choose three different kinds of mounting brackets, each for recessed mounted, surface mounting, and suspended mounted. With these mounting brackets, Primo series canopy light could be available for both outdoor lighting such as gas stations, parking lots, squares, billboards, sports fields, and indoor lighting such as offices, warehouses, workshops, factories, schools and so on.

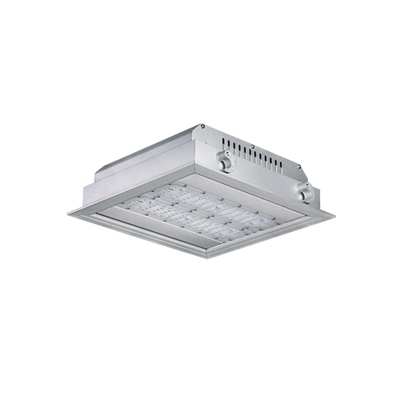

Product: 100W LED Gas Station Canopy Light
Model No.: ZGSM-GS04-100R
LED: Lumileds 3030
Driver: Inventronics dimmable driver
CCT: 6500K
Optics: 120 Degree
QTY: 20 Units
| Model | ZGSM-GS04-100R |
| LED Brand | Lumileds 3030 2D |
| Driver Brand | Inventronics/Meanwell |
| Norminal Wattage | 100W |
| Mounted Type | Recessed, Surface, Bracket Mounted |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 155-165 lm/w |
| Lamp Rated Lumen output | 16000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,120 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | High pressure die-cast aluminum |
| Cover | PC lens and Tempered glass |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80, ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | White and Grey |
| Warranty | 5 years |
Installation Manual_Canopy&HighBay&FloodLight_Primo.pdf
Data Sheet_Canopy&HighBay&FloodLight_Primo.pdf
 |  |  |
| How to choose LED Gas Station Lights? | Guide to Buy Led High Bay Light | Advantages of LED high bay light |
 |  |  |
LED light fixtures have a long lifespan, which is one of their main advantages. While incandescent light bulbs are designed to last for about 1,000 hours, LED light fixtures have been tested to endure up to 100,000 hours. LED light bulbs will last at least 20 years on average before needing to be replaced.
Yes, we are available to provide lighting solutions to both retrofits and new built gas stations. Your site's visibility, safety, and roadside presence can all benefit from an LED lighting installation. For fuel retailers and service station operators, we provide both interior and external lighting solutions.
We provide a variety of LED lights for different lighting applications with different requirements and budgets. From canopy lights to outside area lighting, building perimeter lighting, convenience store lighting, and more, we've got you covered.
These goods range from low-cost to high-end specifications. The price varies depending on how many products you need and which product versions you choose.
View our range of products and contact us for more information regarding price.
