LED Gas Station Light

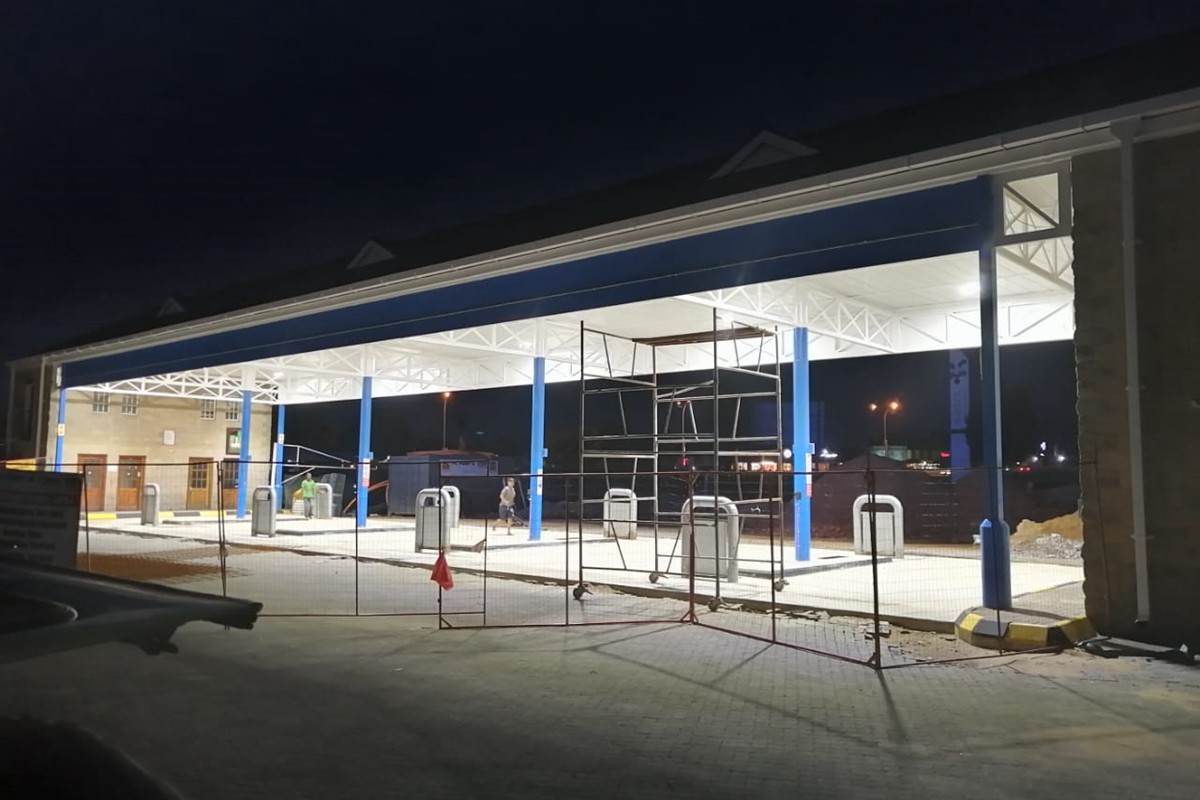

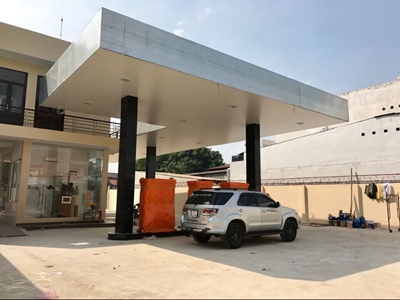

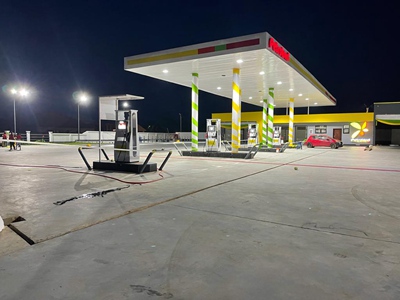

The LED gas station lighting project in South Africa was finished in 2020. It's a newly built petrol station. According to the lighting simulation result of DIALux, we recommended our clients to choose 12pcs 150W H5 series LED gas station canopy lights with 5700K Lumileds 3030 2D chips and 110 degree beam angle. Hign-end MeanWell HLG Series driver can ensure the stable work of lamps, making it have a long lifespan. We provide up to 7 years warranty for our H Series LED Canopy Light.

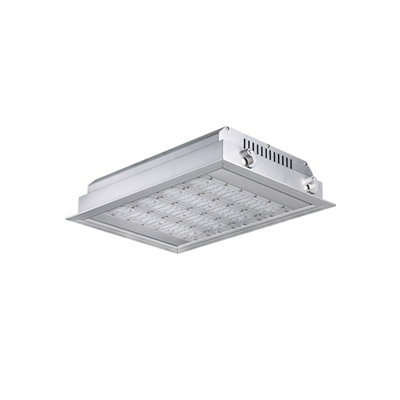

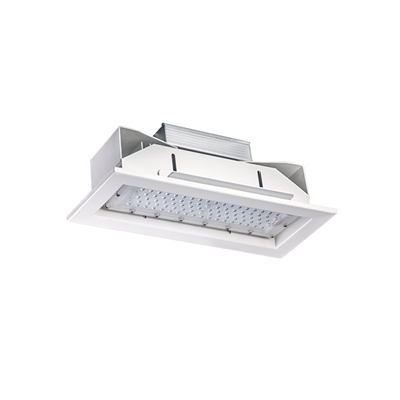

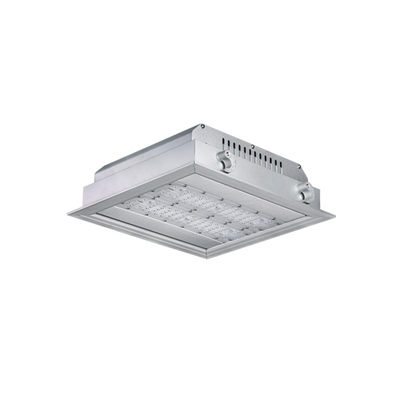

Product: 150W Gas Station LED Canopy Light
Model No.: ZGSM-QD150H5
LED: Lumileds 3030
Driver: Meanwell
CCT: 5700K
Optics: 110 Degrees
QTY: 12 Units
| Model | ZGSM-QD150H5 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 19500-24000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | 60, 90, 110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80,ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_CanopyLightforGasStationLighting_H.pdf
Data Sheet_CanopyLightforGasStationLighting_H.pdf
 |  |  |
| How to choose LED Gas Station Lights? | Advantages of LED High Bay Light | How To Choose The LED High Bay Light? |
 |  |  |
At ground level, 400 lux of light is sufficient under the canopy. Furthermore, for petrol pumps, 150 lux vertical illuminance is recommended. Gas station entrances and exits should have a minimum illumination level of 10 lux. In the crossing area between canopy and store, a light level of 150 lux is sufficient.
Choosing the Right Size of Light Fixtures
Measure the width and length of the room for ambient lighting. Then add them up and translate to inches to get the perfect light fixture size. In an 810 square foot space, an 18-inch wide fixture, for example, would be ideal.
Yes, we are available to provide lighting solutions to both retrofits and new built gas stations. Your site's visibility, safety, and roadside presence can all benefit from an LED lighting installation. For fuel retailers and service station operators, we provide both interior and external lighting solutions.
