LED High Bay Light

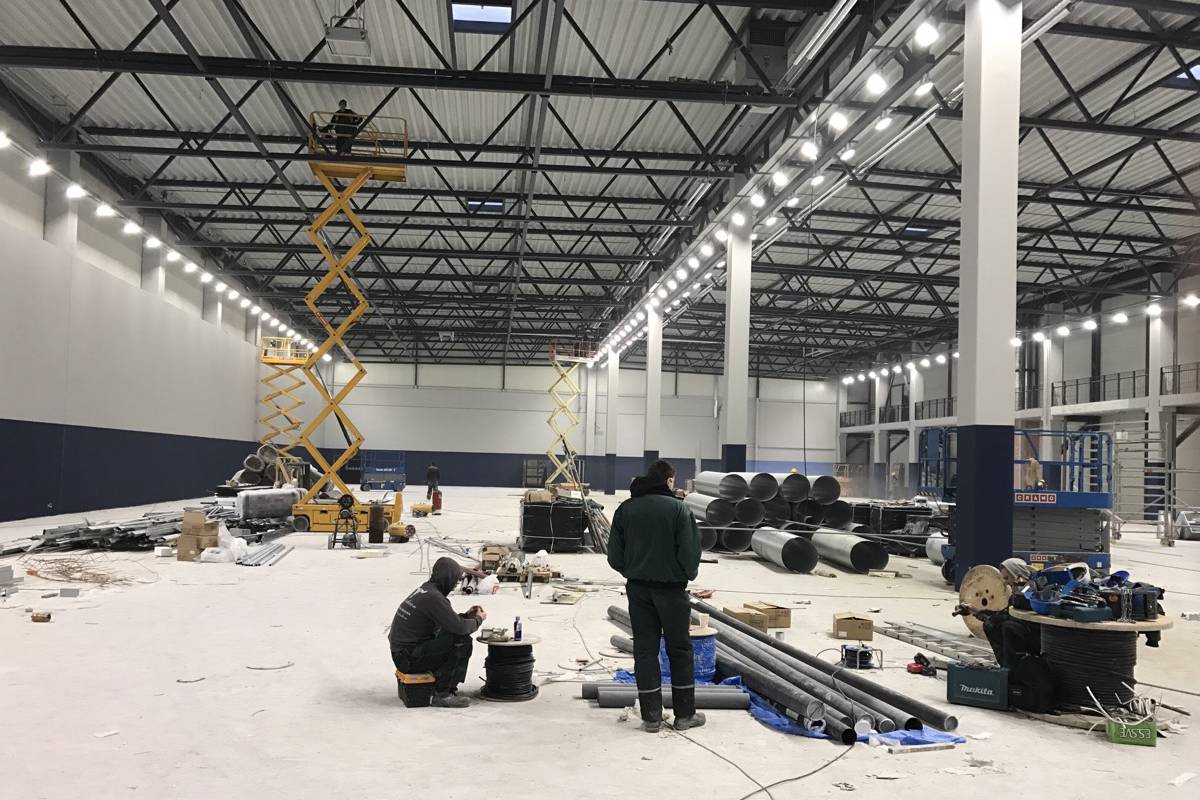

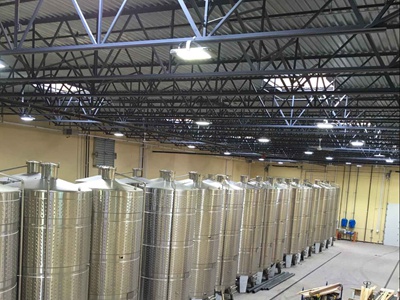

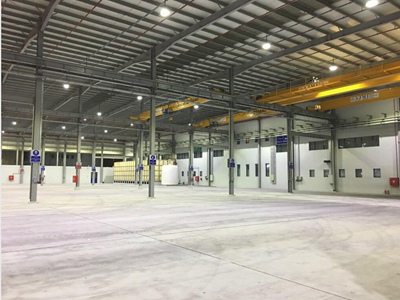

The workshop LED high bay lighting project in Bulgaria, was finished in 2016. We chose about 150 units of 150W ZGSM HB series LED high bay lights to get an average lux of over 300lx. The color temperature of 4000K makes the color of the light more comfortable for our eyes. The 60-degree angle lens makes the light of our fixture more concentrated to the area we need to illuminate without glare. ZGSM HB series high bay lights are modular designed, which is easier to install and maintain. It's available to be applied to warehouse lighting, factory lighting, workroom lighting, gymnasium lighting, garage lighting, and so on.

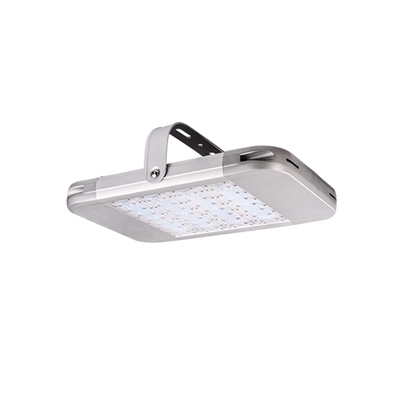

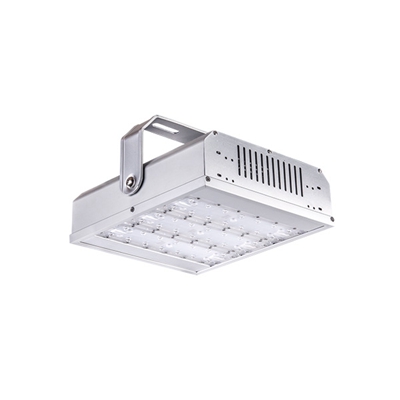

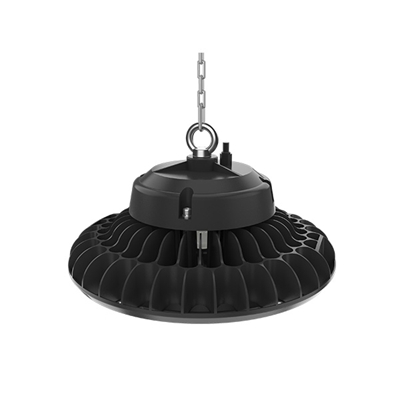

Product: 150W LED Highbay Lights
Model No.: ZGSM-GCD150H5B
LED: Lumileds 3030
Driver: Meanwell
CCT: 4000K
Optics: 60 degrees
QTY: 150 Units
| Model | ZGSM-GCD150H5B |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 19500-24000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf
Data Sheet_HighBay&Flood&TunnelLight_HB.pdf
 |  |  |
| What Is a High Bay Light and Its Purpose? | Guide to Buy Led High Bay Light | What Are The Advantages Of Led High Bay Light ? |
 |  |  |
| How To Replace & Repair Industrial Workshop Light? |
For bright light, a spacing of 15 feet can be utilized at a height of 20 feet, and for average light, an 18-foot spacing should be used. You can go for a 20-foot spacing between the lights at 30 feet height to get a brighter light. For regular lighting, however, a 25-foot separation is sufficient.
Reflectors or lenses are used in low bay lighting fixtures to disperse light and reduce glare. To make the light flow down to the floor, a high bay light fixture requires specific reflectors made of aluminum or prismatic components to scatter the light and illuminate shelves and other higher objects.
Depending on how the existing lighting configuration is configured, there are a variety of approaches to retrofit lighting systems with LEDs. In many circumstances, replacing the existing fixture with a new LED fixture that produces a comparable lumen output is the simplest and most basic solution.
In other cases, reconfiguring a complete lighting system plan to effectively update to LED technology may be necessary. There are a few cases when an LED retrofit kit can be used to update an existing fixture, but this requires some electrical knowledge to execute successfully.
