LED Projector Light

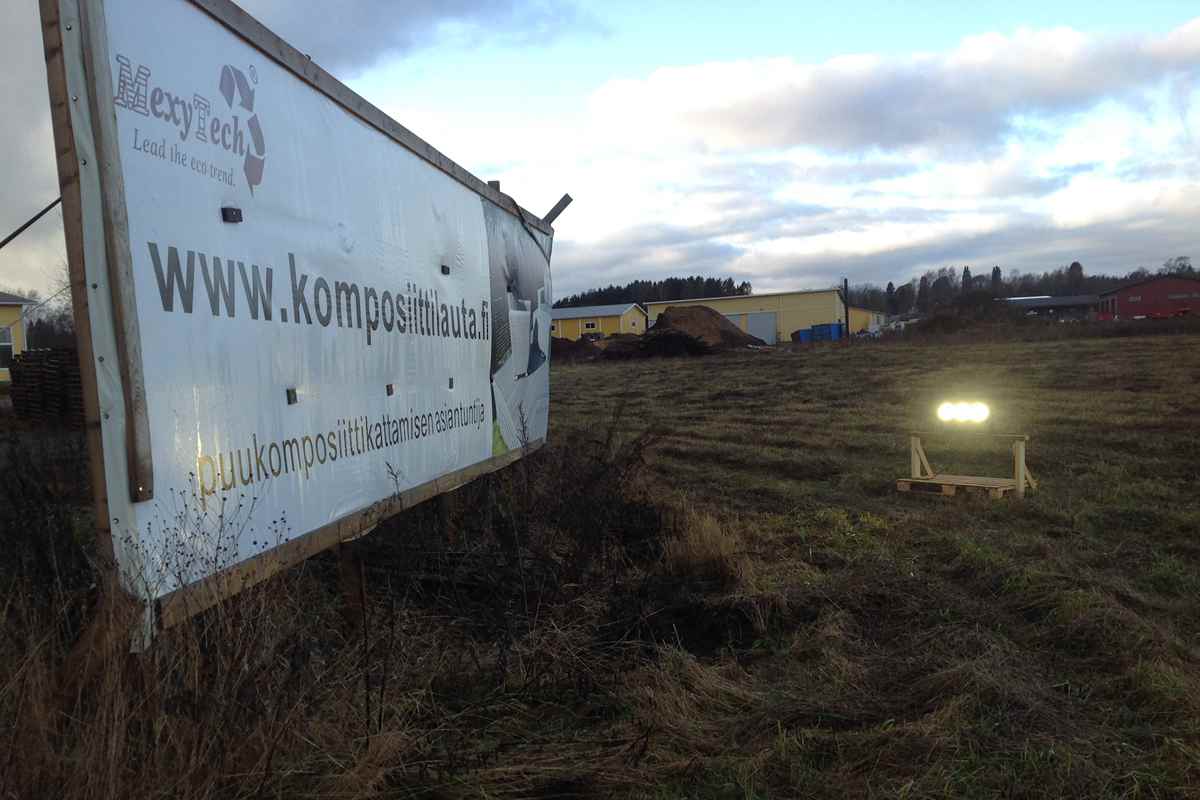

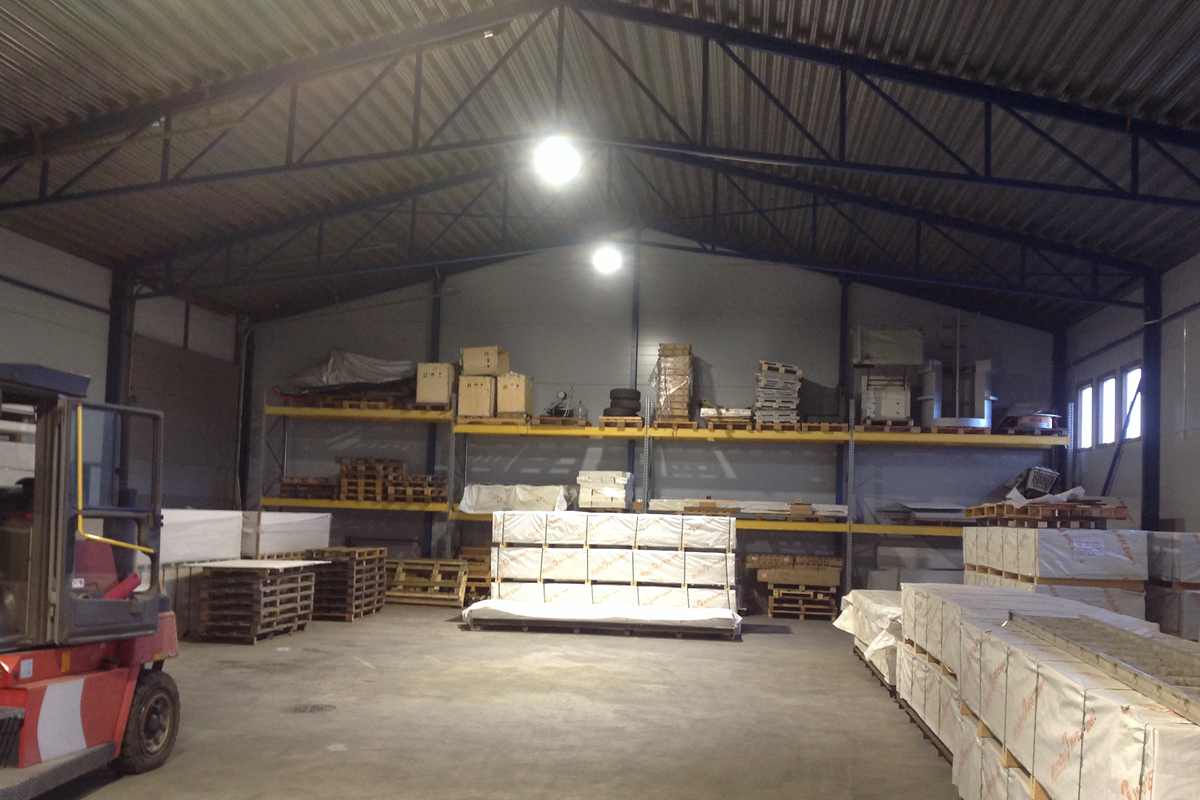

The billboard and warehouse lighting project in Finland was finished in 2017. We used 280W J series LED projector light for outdoor billboard lighting. The projector light focus all the light on the billboard, making it bright and no light pollution. For the indoor warehouse lighting, we chose 150W & 200W HB series LED flood lights with high efficacy, making the warehouse 50% brighter than before. We provide 5 years warranty to our J series LED projector lights and 7 years warranty to our HB series flood LED lights. All of them are still working well by now.

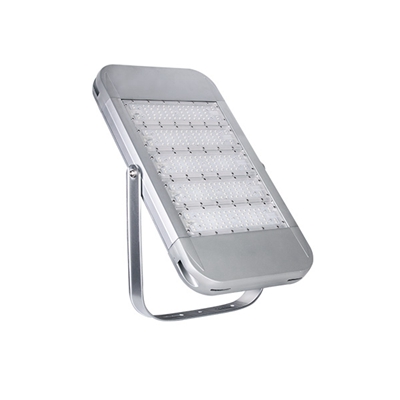

Products: 150W & 200W LED Flood Light,
Model No.: ZGSM-FGD150H5B & ZGSM-FGD200H5B & ZGSM-FGD200H4B
LED: Lumileds 3030
Driver: Meanwell
CCT: 4000K
Optics: 60degree
QTY: 4 Units

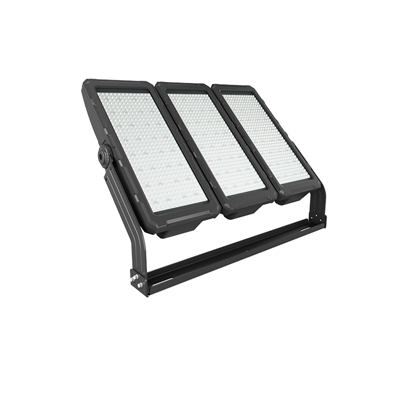

Product: 280W LED Projector Light
Model No.: ZGSM-TGD280J
LED: Lumileds 3030
Driver: Inventronics
CCT: 4000K
Optics: 60degree
QTY: 1 Unit
(Note: J series high mast led stadium lights have been discontinued and replaced by M series.)

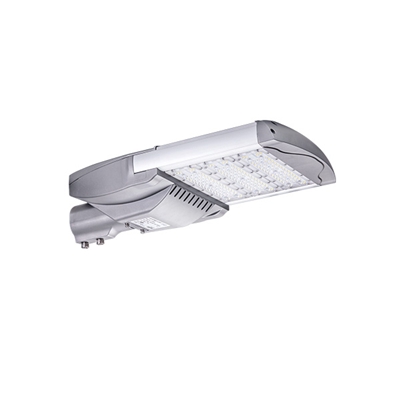

Product: 150W LED Street Light
Model No.: ZGSM-LD150H5
LED: Lumileds 3030
Driver: Meanwell
CCT: 4000K
Optics: Type 2M
QTY: 1 Unit

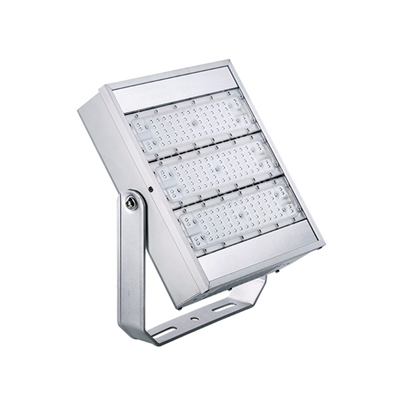

| Model | ZGSM-TGD280M |
| LED Brand | Philips Lumileds 3030 2D |
| Driver Brand | INVENTRONICS EUC Series |
| Normal Wattage | 280W |
| LED Quantity | 448 Pcs |
| Input Voltage | 100-240/277VAC, 50/60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >150lm/w |
| Lamp Rated Lumen output | 42000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 15, 30, 45, 60 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | ‘-40℃~+50℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Stretched Aluminium Alloy |
| IP Rating | IP66, IK10 with the test report |
| Certification | CE, ROHS |
| Optional Function | 1-10V DC Dimming |
| Warranty | 5 years |
| Model | ZGSM-FGD200H5B |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 200W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 26000-32000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_ProjectorLight_M.pdf
Data Sheet_Stadium Light_M.pdf
Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf
Data Sheet_HighBay&Flood&TunnelLight_HB.pdf
 |  |  |
| LED Projector Light Project In Mexico | LED Projector Light Project In Malaysia | LED Stadium Light Project In Italy |
 |  |  |
| LED Flood Light Project In Ecuador | LED Flood Light Project in Israel |
 |  |  |
| LED Flood Light Features And Advantages |
The letters K, which stand for Kelvin and indicate the actual temperatures as determined by the Kelvin scale, stand for Warm White and Cool White. Cool White is closer to 5000k than Warm White, which is roughly 3000k. On a scale, warmer values fall lower and cooler values higher.
If you don't know which CCT to choose for your LED projector lights, pls contact us for professional advice.
They come with an adjustable mounting bracket that allows you to modify the angle of the deluge. They don't need a pole or a particular mount because of this.
Standard screws and plugs should enough for the installation.
Fitting and wiring instructions are included with our high-quality LED flood lights.
SPD in LED lighting area usually means Surge Proection Device. It's a device or appliance that protects electrical equipment against voltage spikes in alternating current (AC) circuits. A voltage spike is a brief transient occurrence that can reach over 1,000 volts and lasts 1 to 30 microseconds. Lightning can generate a spike in voltage of over 100,000 volts, which can burn through wiring insulation and cause fires, but even small spikes can harm a wide range of electrical items, including computers, battery chargers, modems, and televisions. The surge device will typically activate at a predetermined voltage, usually 3 to 4 times the mains voltage, and divert the current to earth. The surge may be absorbed by some gadgets and released as heat.
