LED Stadium Light

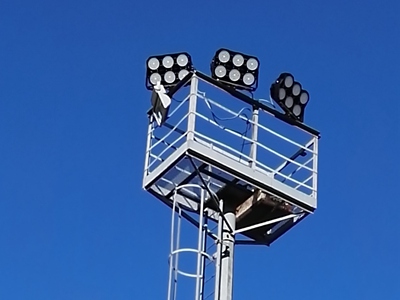

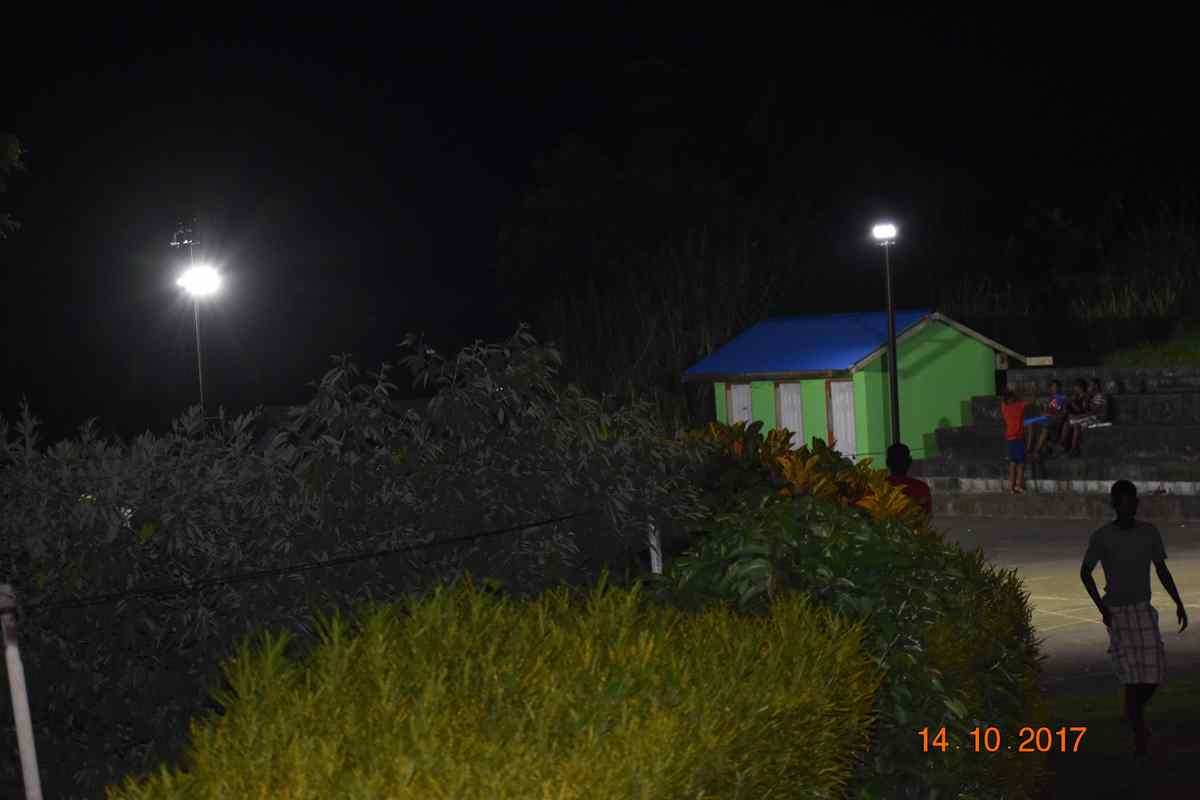

The outdoor sports field lighting project in Saint Vincent and the Grenadines was finished in 2017. It adopted 6 units of 280W ZGSM M series LED Stadium Lights in this project, which were mounted on 6pcs of 5-meter poles. Each module of the M series LED stadium light is 0-360 degrees adjustable, ensuring you could adjust the mounting direction to illuminate the area you want. After replacing the old lamps with our M series Stadium LED lights, the sports field is 60% brighter than before. The residents are satisfied to find they could do sports both in the daytime and at night.

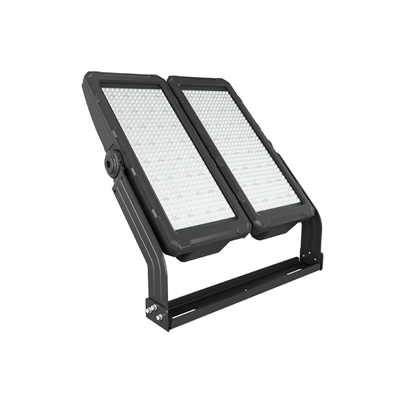

Product: 280W LED Stadium lights
Model No.: ZGSM-TGD280M
LED: Lumileds 3030
Driver: Inventronics
CCT: 5700K
Optics: 60 degrees
QTY: 6 Units
| Model | ZGSM-TGD280M |
| LED Brand | Philips Lumileds 3030 2D |
| Driver Brand | INVENTRONICS Series |
| Norminal Wattage | 280W |
| LED Quantity | 448 Pcs |
| Input Voltage | 100-240/277VAC, 50/60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >150lm/w |
| Lamp Rated Lumen output | 42000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 15, 30，45, 60 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | ‘-40℃~+50℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Stretched Aluminium Alloy |
| IP Rating | IP66 with test report |
| Certification | CE,ROHS |
| Optional Function | 1-10V DC Dimming |
| Warranty | 5 years |
Data Sheet_Stadium Light_M.pdf
 |  |  |
| What Is LED Flood Light? | The Features Of LED Flood Light |
The interior salts evaporate when the light warms up, altering the output's quality. This takes time to reach its maximum power (thus the warm-up period). While LED stadium lights do not have this problem, they reach the maximum brightness as soon as they are turned on. Compared with metal halide lamps, LED stadium lights are more energy-saving and environmentally friendly. This is why more and more metal halide lamps are now being replaced by LED lamps.
When the color temperature is lower, the light appears "warmer"; when the color temperature is greater, the light appears "cooler" or more bluish. Color temperatures between 4000 and 6500 K are typically needed for sports lighting.
Need moreprofessional advice, pls contact us.
For instance, 300 to 400 lux are required to effectively illuminate a high school football stadium. To generate 300 to 400 lux with metal halide lamps, you'll need 70,000 watts; whereas, LED stadium lighting only require 35,000 watts. Because LED Stadium Lights have much high efficacy than old metal halide lamps. For example, the efficacy of our M series LED stadium lights is 150lm/W, and the efficacy of our Zoom series LED floodlights could be up to 170lm/W.
