LED Street Light

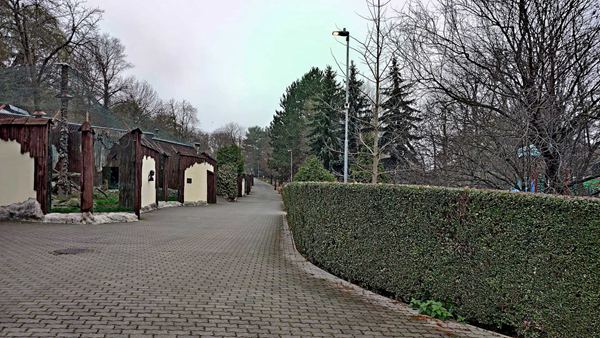

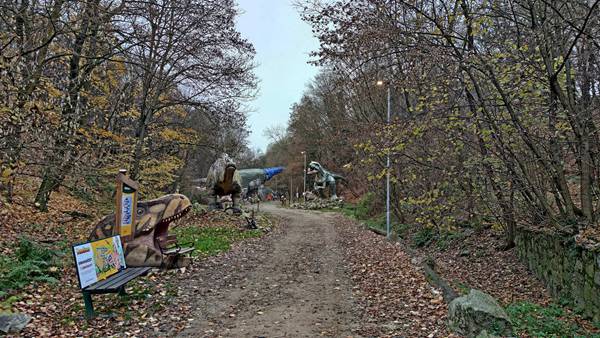

The country road lighting project in Slovakia was finished in November 2020. It's a road to the zoo. We provided a solution of 110 sets of 55W KS series LED road lights with 5 PIN NEMA sockets and Inventronics 0-10V dimmable drivers. With the NEMA sockets and dimmable drivers, we could equip the ZIGBEE smart control system to control and monitor all the LED street lights. Our clients The ZIGBEE smart control system makes it more convenient and could save more energy. Our customers found this lighting solution with smart controls so fantastic. It's not only convenient but also energy efficient.
Product: 55W KS LED Road Light With 5 Pin NEMA Socket
Model No.: ZGSM-LD55KS
LED: Lumileds 3030 2D chips
Driver: Inventronics EBS driver 0-10V Dimming
CCT: 3000K
Optics: Type II Medium
Housing Color: Dark Grey
Installation Height: 6 meters
QTY: 110 Units
| Model | ZGSM-LD55KS |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Normal Wattage | 55W |
| LED Chip Quantity | 3030: 96pcs 5050: 48pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 125-145 lm /w |
| Lamp Rated Lumen output | 6875-7975 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum;Tempered Glass |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey or Light grey |
| Warranty | 7 years |
Data Sheet_ StreetLight_ZGSM-LD55KS.pdf
Installation Manual_StreetLight_K.pdf
 |  |  |
| LED Street Light System Installation Process | ||
 |  |  |
NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
What is LED street lighting, and how does it work? The term "light-emitting diode" refers to a device that emits light. The LED light source is both energy-efficient and eco-friendly. It is more adjustable than earlier types of street lighting since it can be lowered and concentrates light where it is needed with less light pollution.
