LED Street Light

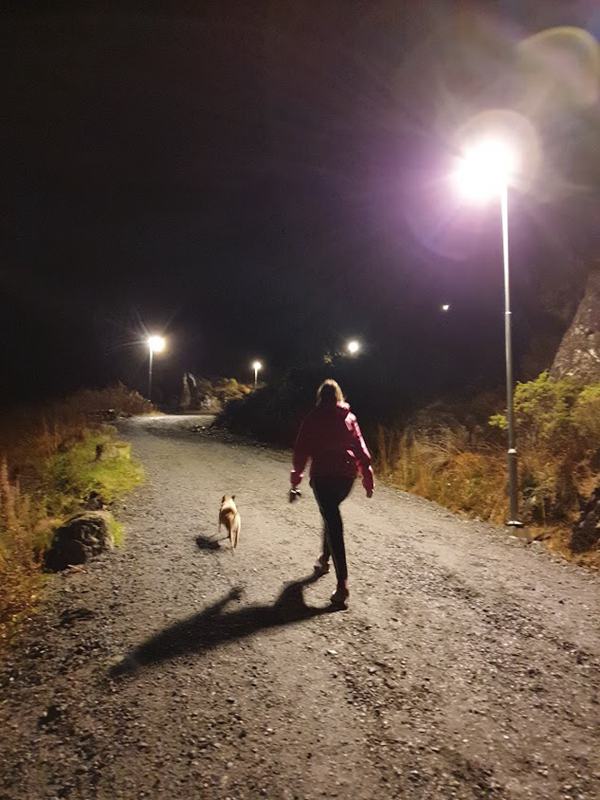

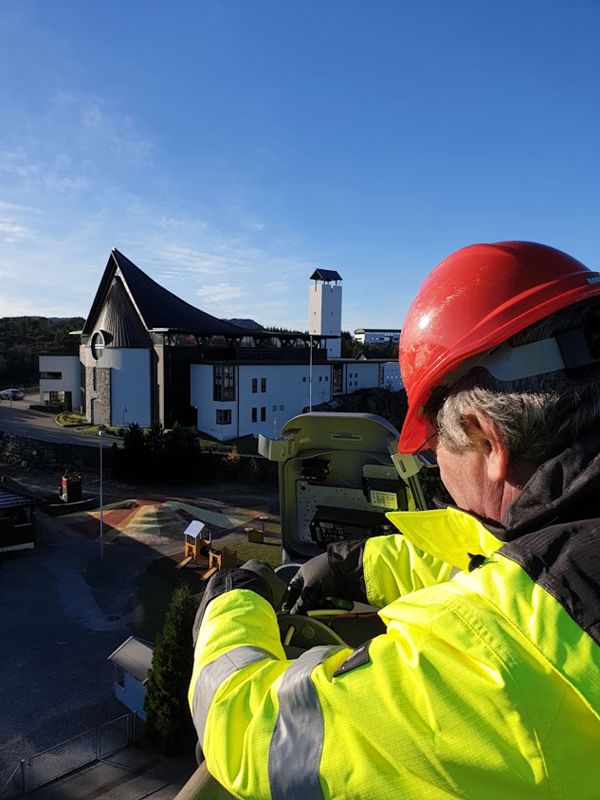

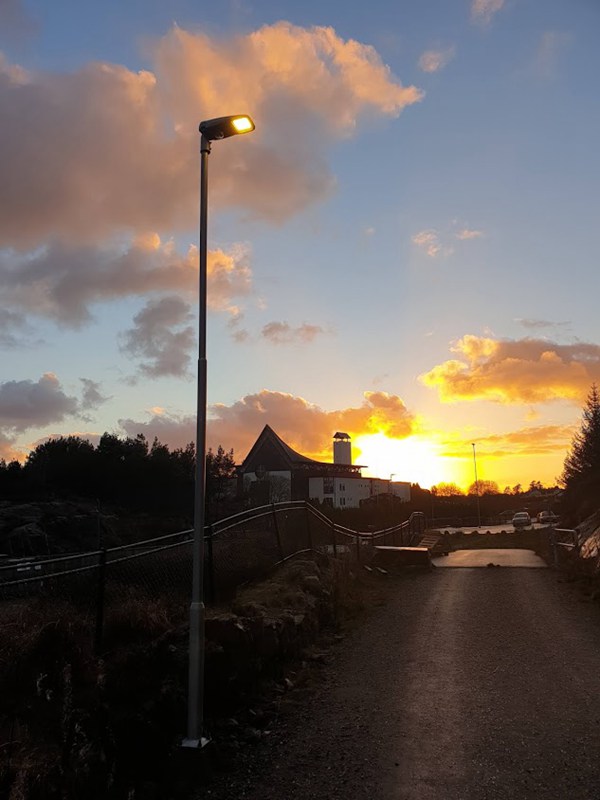

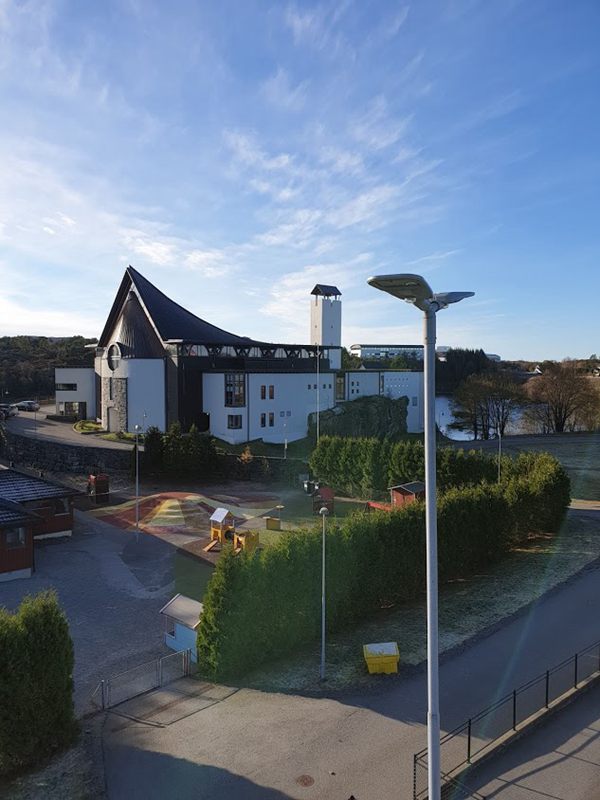

The town street and mountain path lighting project in Norway was finished in 2018. We chose 120W KM series street light for town street lighting and 60W KS series for mountain path lighting. Since this town doesn't have many pedestrians at night, we advised our customers to equip motion sensors for thees LED street lights. And all street lights are set to work at 30% brightness when there are no pedestrians, and automatically switch to 100% brightness when it senses pedestrians passing by. Such a working mode can further improve the energy saving ratio. Town residents are very satisfied with this lighting renovation project.

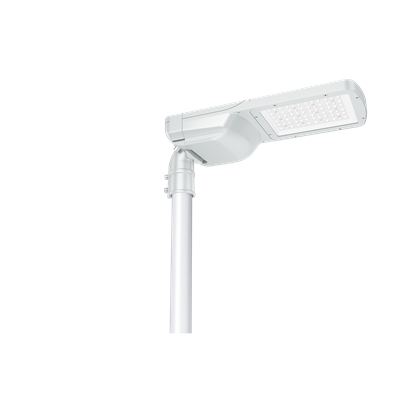

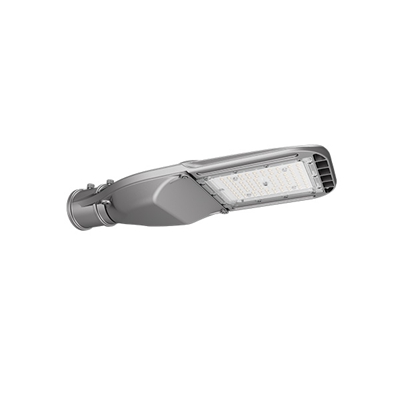

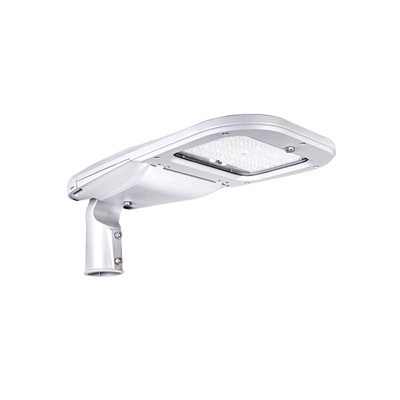

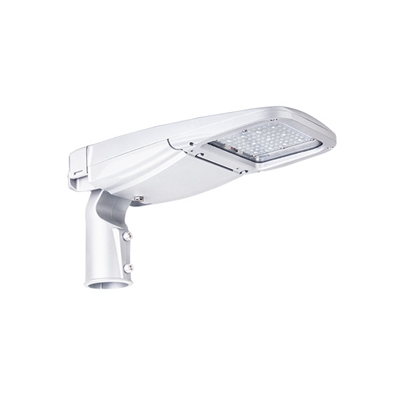

Products: 60W & 120W LED Street Lights
Model No.: ZGSM-LD60KS & ZGSM-LD120KM
LED: Lumileds 5050 LED chips
Driver: Inventronics Class II Driver With DALI dimming
Accessory: Motion Sensor
CCT: 3000K
Optics: Type 3M

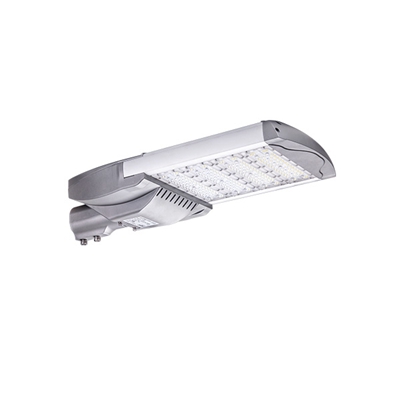

| Model | ZGSM-LD120KM |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Normal Wattage | 120W |
| LED Chip Quantity | 3030: 192pcs 5050: 96pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 15600-18000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey or Light grey |
| Warranty | 7 years |
Installation Manual_StreetLight_K.pdf
Data Sheet_ StreetLight_K_ZGSM-LD60KM & ZGSM-LD120KM.pdf
 |  |  |
 |  |  |
| LED Street Light Procurement Skills | LED Street Light PK Ordinary Street Light | How does the LED street light work? |
A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.
Another name for a motion sensor is a motion detector.
The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.
About 15 to 20 years.
LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
