LED Street Light

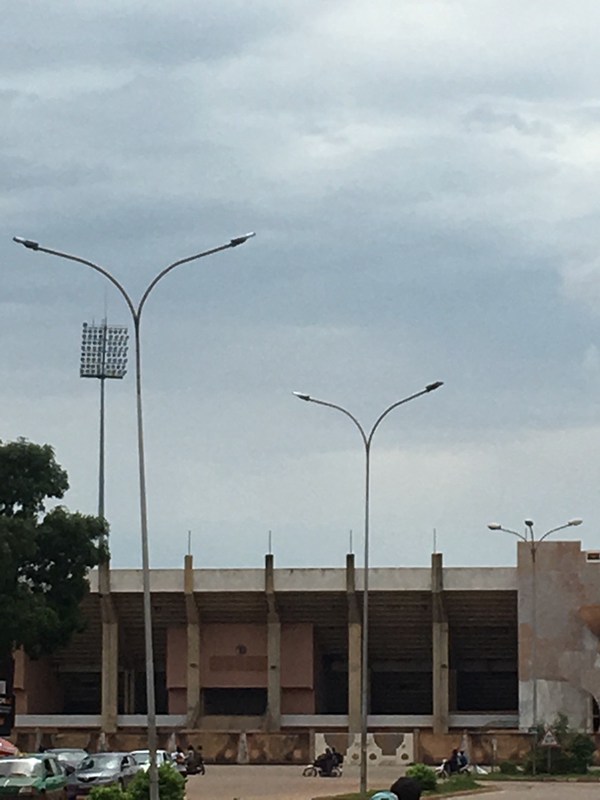

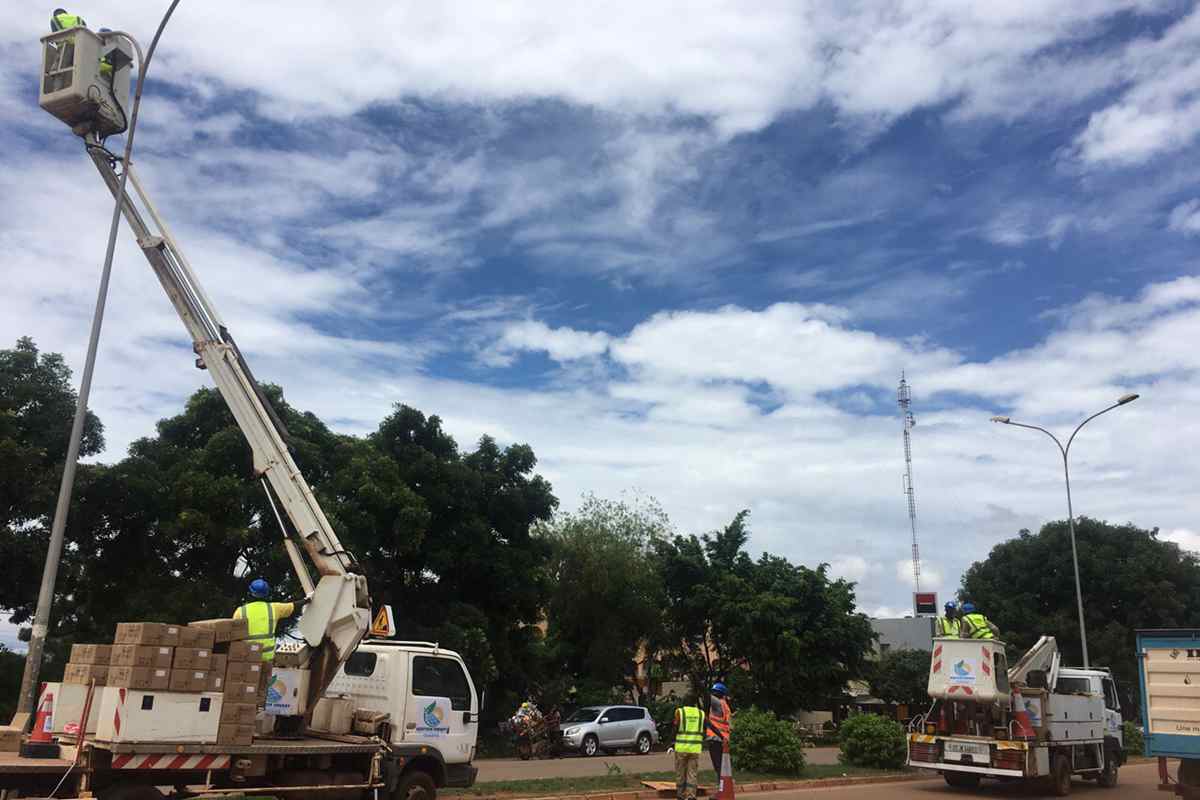

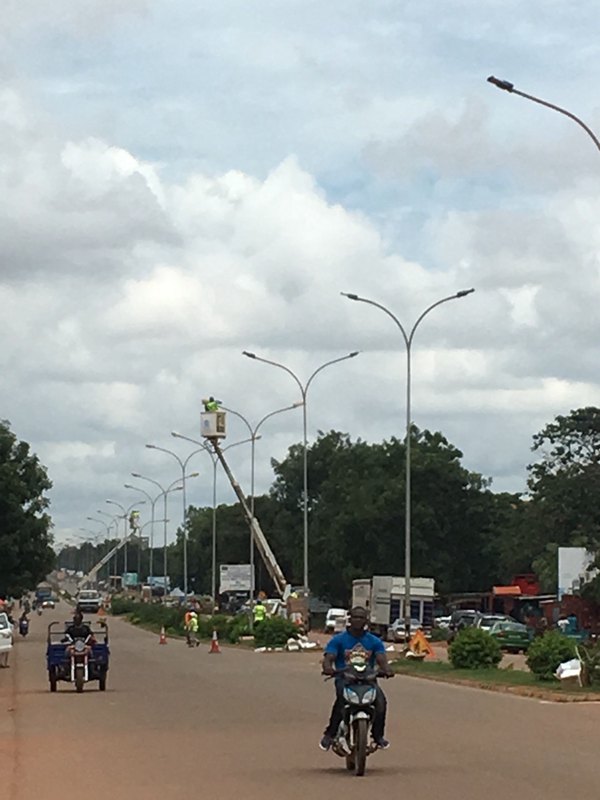

The city street lighting project in Burkina Faso was finished in August 2018. After purchasing and testing the sample of our H series LED road light, the Energy Minister and Finance Minister of Burkina Faso together with several engineers came to visit our factory, and discussed more details of design, production, and installation. They purchased more than 1650 sets of H series LED road lights, which power ranges from 60W to 120W, in a 40HQ container and delivered them to Burkina Faso. After installation, both the Ministers and citizens are satisfied with the improvement of lighting conditions.

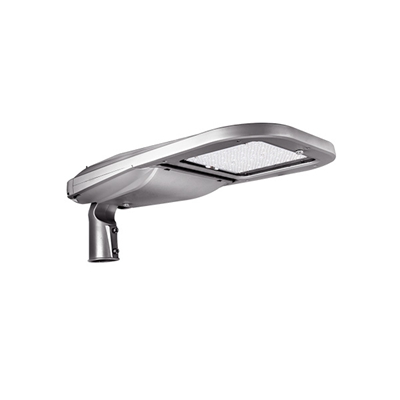

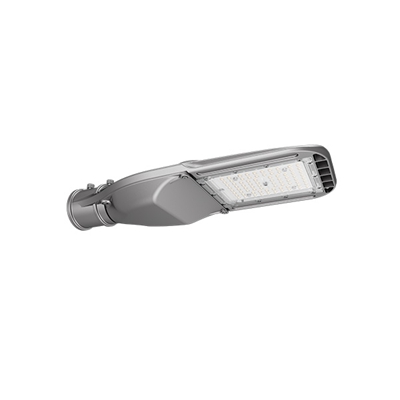

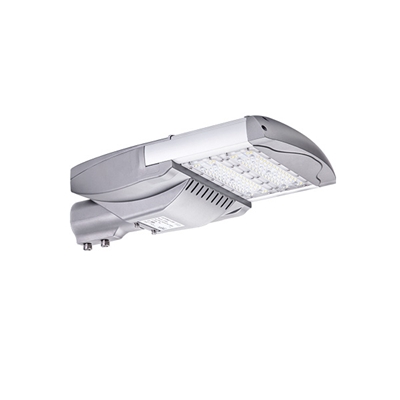

Products: 60W & 80W & 100W & 120W LED Street Light
Model No.: ZGSM-LD60H6 & ZGSM-LD80H4 & ZGSM-LD100H5 & ZGSM-LD120H4
LED: Lumileds
Driver: Meanwell
CCT: 5700K
Optics: Type 2M
QTY: 1650 Units

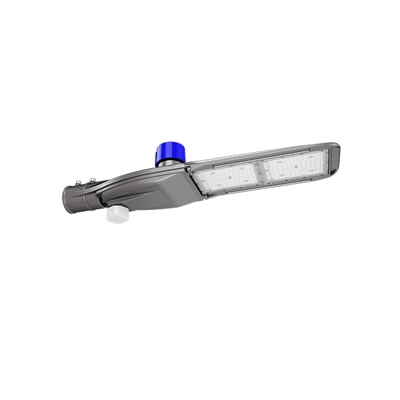

| Model | ZGSM-LD100H5 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 100W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 13000-16000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
 |  |  |
| LED Street Light System Installation Process | ||
 |  |  |
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
We provide a variety of LED lights for different lighting applications with different requirements and budgets. From canopy lights to outside area lighting, building perimeter lighting, convenience store lighting, and more, we've got you covered.
These goods range from low-cost to high-end specifications. The price varies depending on how many products you need and which product versions you choose.
View our range of products and contact us for more information regarding price.
Yes! We provide a variety of superior light poles in a variety of designs, colors, and sizes.
