LED Street Light

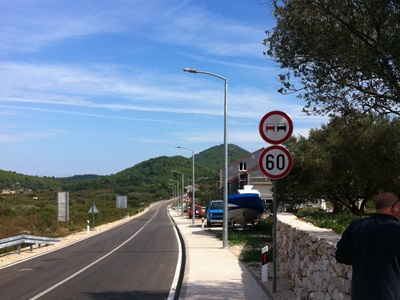

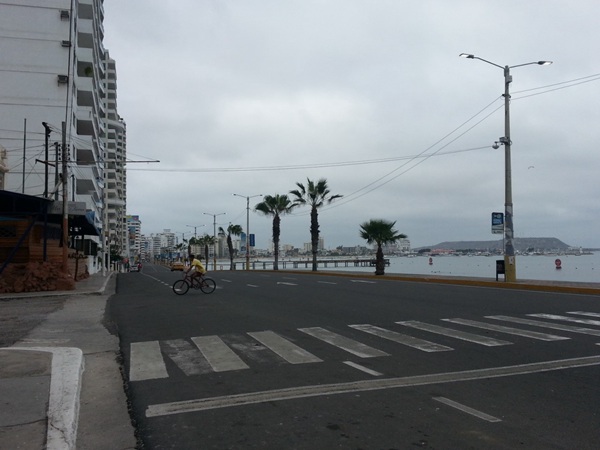

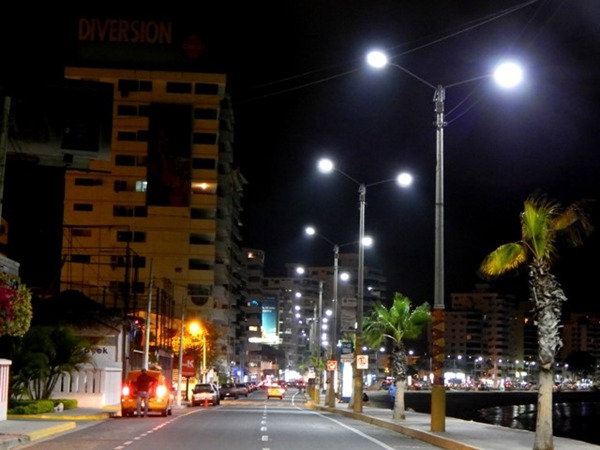

The seaside road lighting project in Ecuador was finished in 2015. In this project, we recommended H series LED street lamps to customers because the surface of the lamp shell has been treated with anti-corrosion treatment, so there is no need to worry about the corrosion of seawater. This street lamp also has passed the IP66 waterproof test and windproof test, no need to worry about the waves and wind at the seaside. The good lighting condition after using our H series LED road lights also makes it safer to drive or walk on the seaside road. Since the project was put into use, we have hardly heard of pedestrians and vehicles falling into the water.

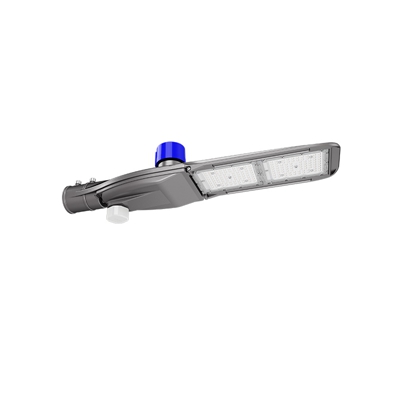

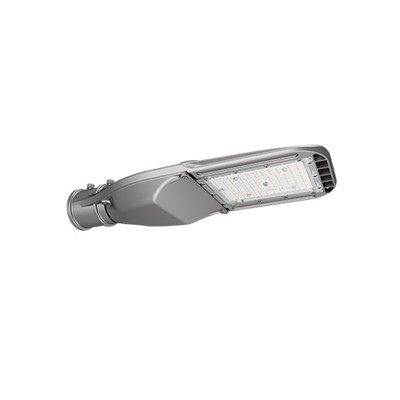

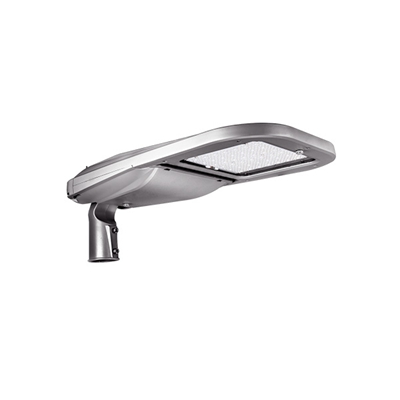

Product: 135W LED Street Light
Model No.: ZGSM-LD135H
LED: Lumileds
Driver: Meanwell
CCT: 5700K
Optics: Type 1S
QTY: 210 Units
| Model | ZGSM-LD135H |
| LED Brand | Lumileds Luxeon TX |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 135W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 14850 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80,SAA |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
Data Sheet_LEDStreetLight_H.pdf
 |  |  |
| Light Source Of LED Street Lamp | ||
 |  |  |
About 15 to 20 years.
LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.
· Significant energy savings - more than 60% as compared to typical street lighting
· Good color rendering, which makes colors appear more natural.
· Long service life - up to 100,000 hours, resulting in lower maintenance costs.
· White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.
· When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.
Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
