LED Street Light Project in Croatia

LED Street Lighting project in Croatia, which was completed in 2015. ZGSM is a professional LED street light manufacturer. We independently developed, designed, and produced H Series LED Street Lighting fixture.  Both IP66 waterproof design and equipped with 10KV SPD ensure that H Series Street LED Light works well in outdoor lighting. LED Street Lamps could be installed on different poles with different angles for different applications by flexible fitters. Tool-free opening design makes maintaining the LED street lamps on the poles easier. Customers chose us because of the excellent design and the good LED streets light price.


Product Details


Product: 65W LED Street Light

Model No.: ZGSM-LD65H

LED: Lumileds Luxeon Tx

Driver: Meanwell

CCT: 4000K

Optics: Type 2M

QTY: 35 Units


Video

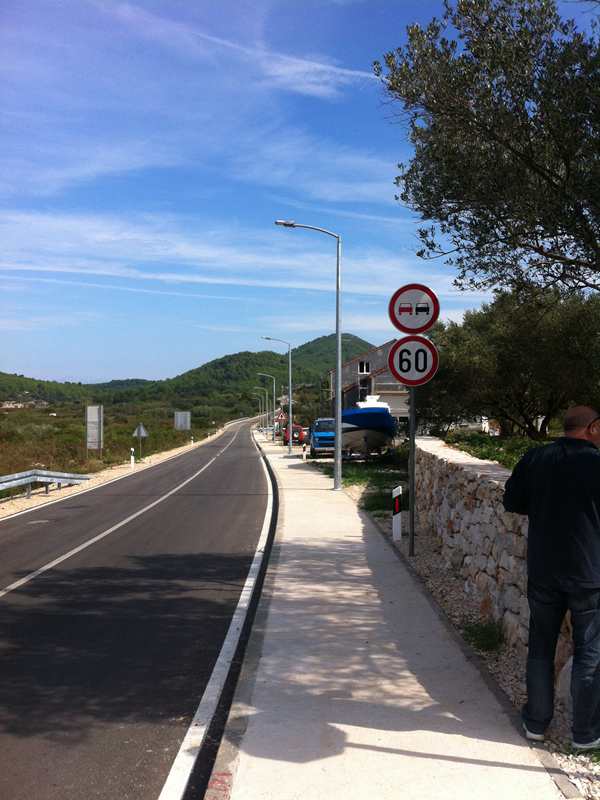

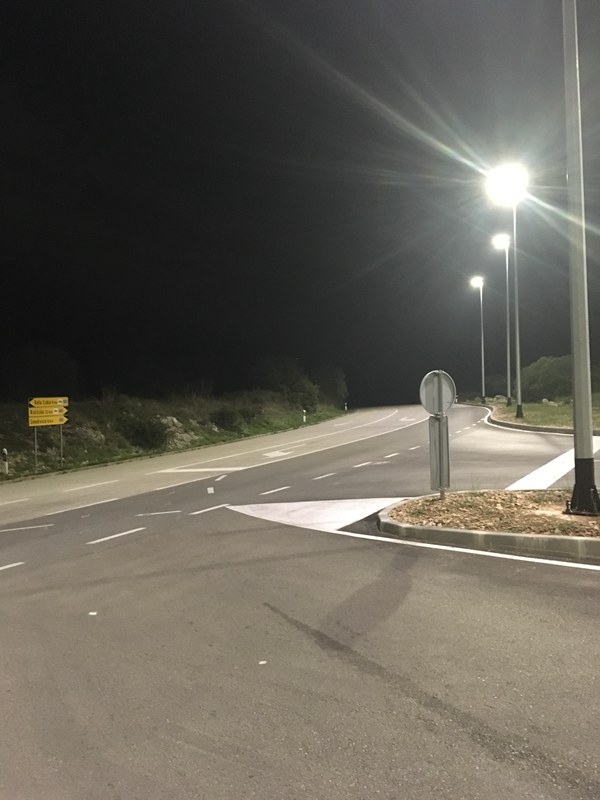

Project Photos


LED Street Light in CroatiaLED Street Light in Croatia


Specification


ModelZGSM-LD65H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage65W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output7150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf


Related Products


LED Street Light in CroatiaLED Street Light in CroatiaLED Street Light in Croatia

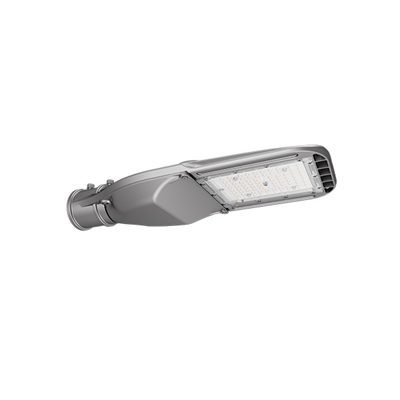

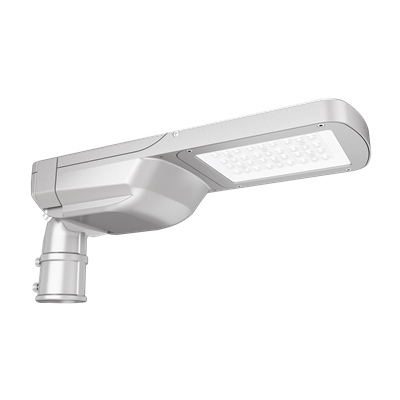

40W Smart City Glass Cover LED Street LightFull Die-casting Housing Tool-less LED Street LightEuropean Style 56W LED Street Light
LED Street Light in CroatiaLED Street Light in CroatiaLED Street Light in Croatia
200W Class II LED Street Light Suppliers80W Economical LED Street Light WholesaleENEC Economical 50W LED Street Light


Related Project


LED Street Light in CroatiaLED Street Light in CroatiaLED Street Light in Croatia

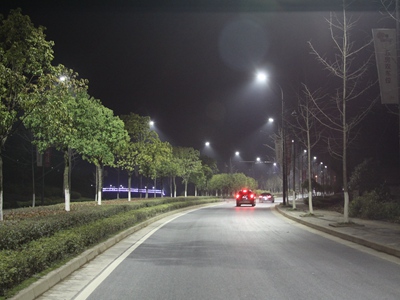

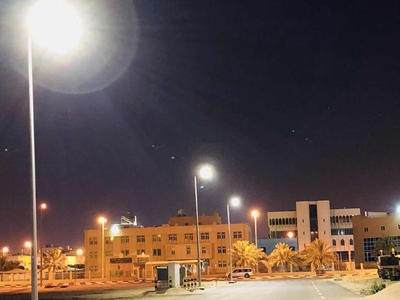

LED Street Light Project In UkraineLED Street Light Project In GreeceLED Street Light Project in Saudi Arabia
LED Street Light in CroatiaLED Street Light in CroatiaLED Street Light in Croatia
LED Street Light Project in AustraliaLED Street Light Project In IraqLED Street Light Project In Dubai


Related Blogs


LED Street Light in CroatiaLED Street Light in CroatiaLED Street Light in Croatia
Correct Installation And Use Of Led Street LightsThings You Didn't Know about Led Street LightsHow To Choose Led Street Lights Correctly?
LED Street Light in CroatiaLED Street Light in CroatiaLED Street Light in Croatia
What are the advantages of LED street light?LED Street Light PK Ordinary Street LightHow does the LED street light work?


People Also Ask


  1. Is it true that LED street lights (public lights) emit more blue light than other sources, causing sleep disturbances?

    There is no need to worry about blue lights emitted by LED street lighting disrupting sleep. The blue light from LEDs is identical to that from other light sources, according to the US Department of Energy. The intensity of light at night is more crucial. The amount of light, the timing, and the duration of light exposure all have a role in the disruptive effect. LED street lighting produces light levels that are too low to alter hormone levels that regulate our sleep habit, according to research.


  2. Will LED street lighting pollute the environment?

    If the lighting application is well-designed, the usage of LEDs does not result in increased light pollution. On the contrary, using well-designed LED street lights ensures that scatter and glare are efficiently controlled while having a significantly higher impact on decreasing high angle brightness and light pollution.


  3. How long do LED street lights last?

    About 15 to 20 years

    LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.
