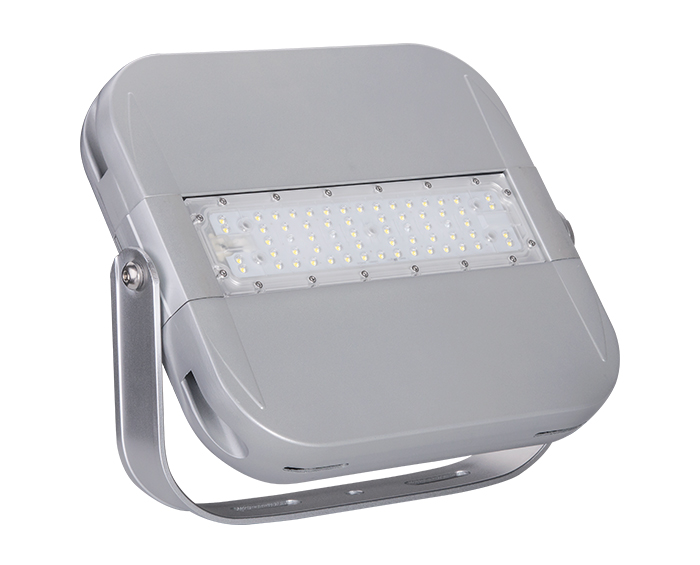

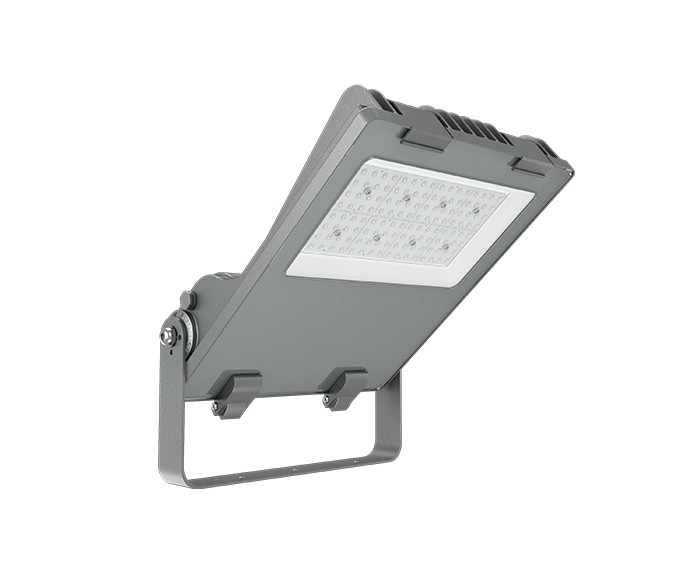

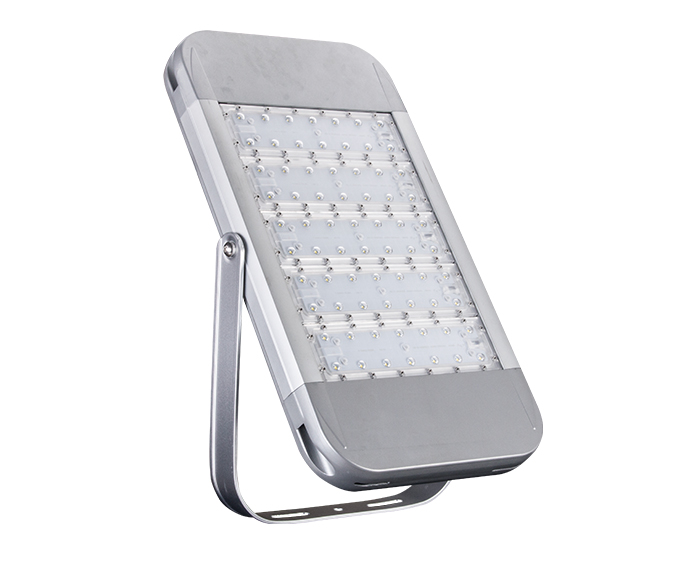

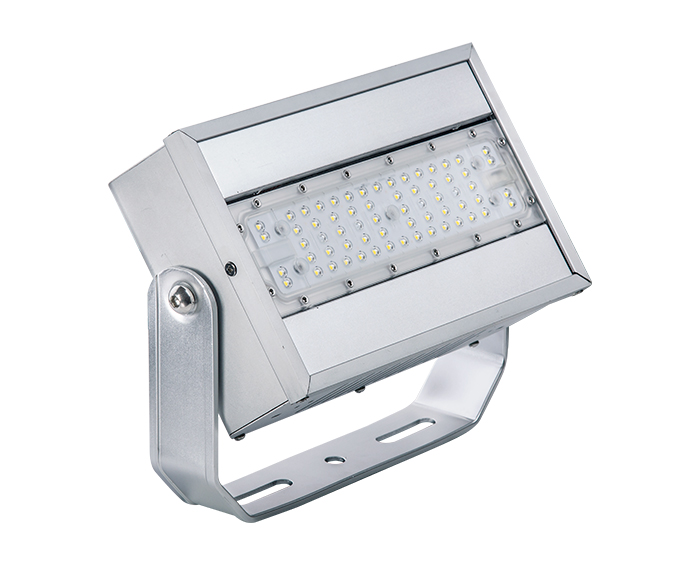

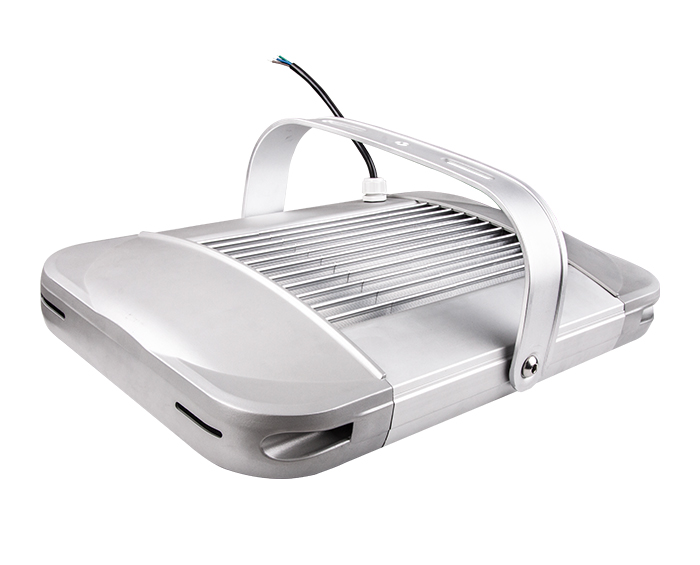

Economical 60w Modular Design led floodlights

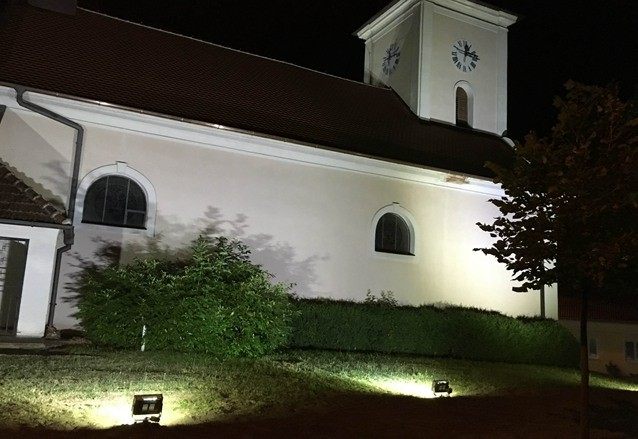

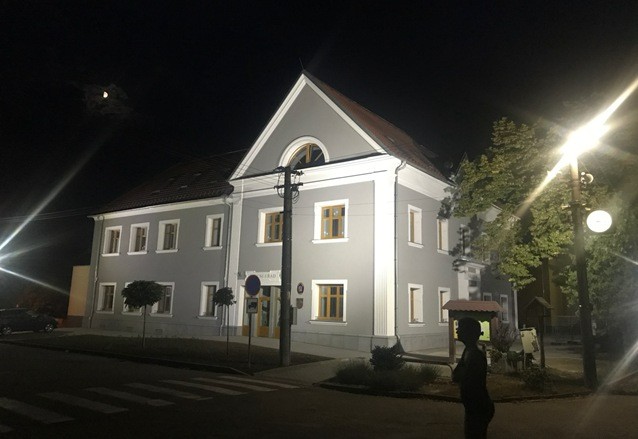

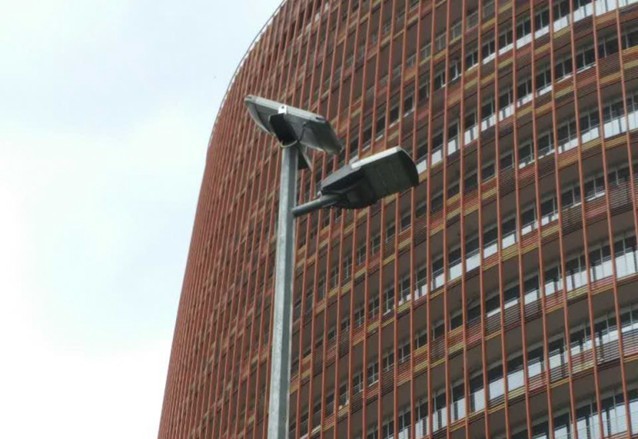

Economical 60w modular design-led floodlights are used for the lighting of facades and buildings, but also for other luminaries such as villas and street lamps. The lighting system maximizes the use of the light emitted, reaching 90% and only losing 10% of the heat.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high-quality LED chips.

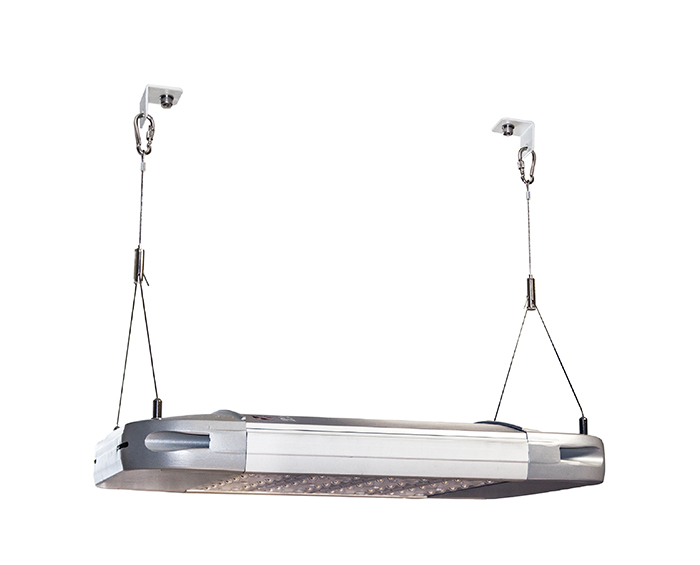

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.

Specifications

Model	ZGSM-FGD60H6
LED Brand	Lumileds LUXEON 3030/5050
Driver Brand	Meanwell HLG series
Normal Wattage	60W

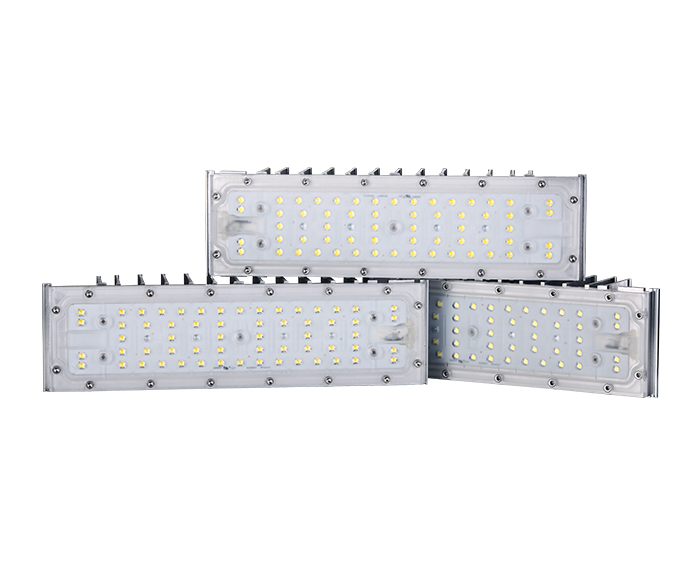

LED Module Quantity	1 module
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	125-155 lm/w
Lamp Rated Lumen output	7500-9300 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Die-cast Aluminum Housing
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE, ROHS, LM80
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

FAQ

What are floodlights used for?

As the name suggests, floodlights are used to illuminate an area. This is the best way to provide a large amount of unnatural light to an area. LED floodlights are energy efficient and have a higher lumens per watt output than any other traditional lighting system.

Where should floodlights be placed?

Place floodlights or parking lights in your parking area to help visitors feel safe. If you have commercial parking, bright lighting is essential. Your parking lot should have a complete security system that uses motion sensor lights and security cameras.
