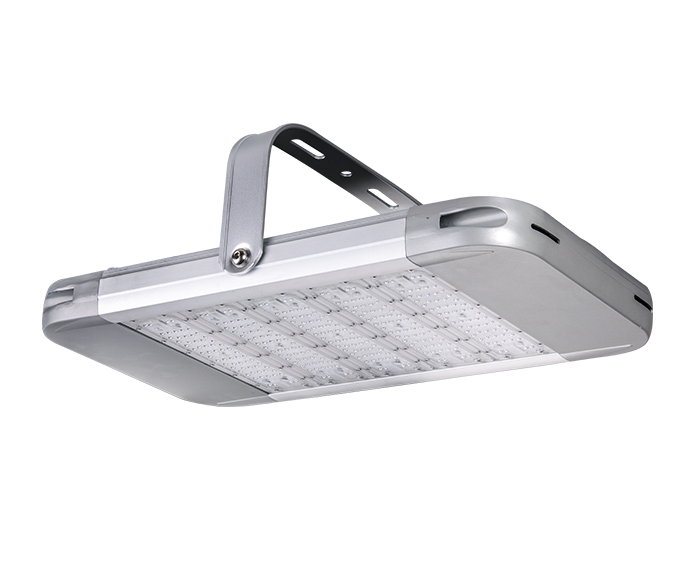

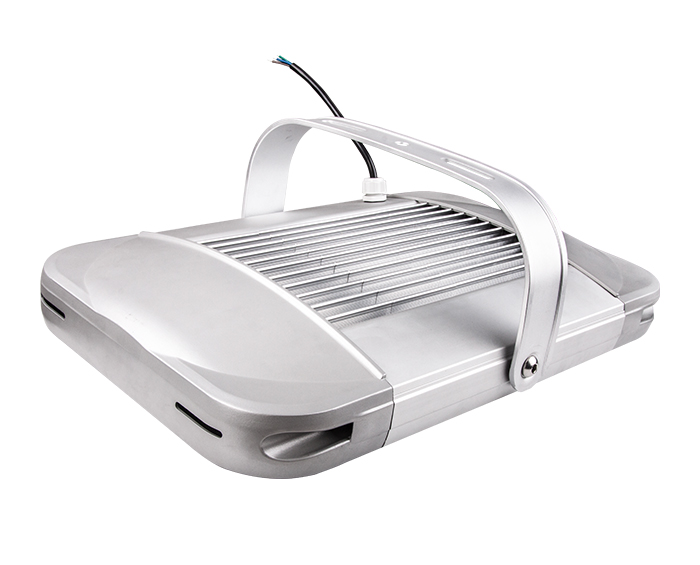

Modular Design LED High Bay Light

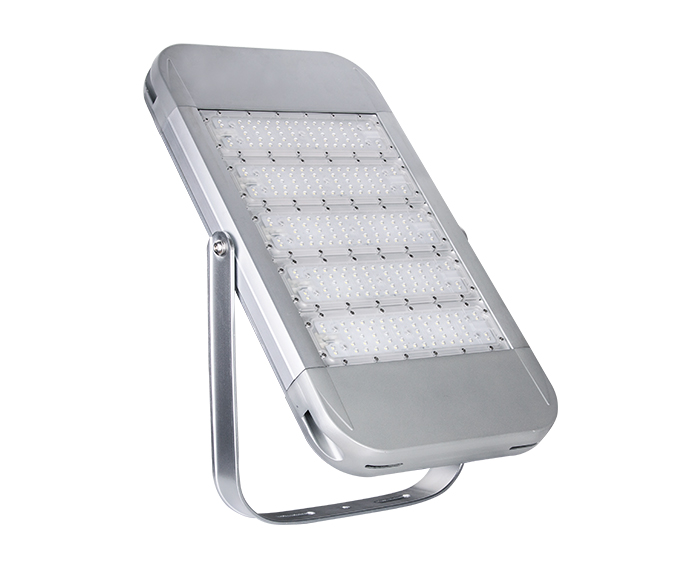

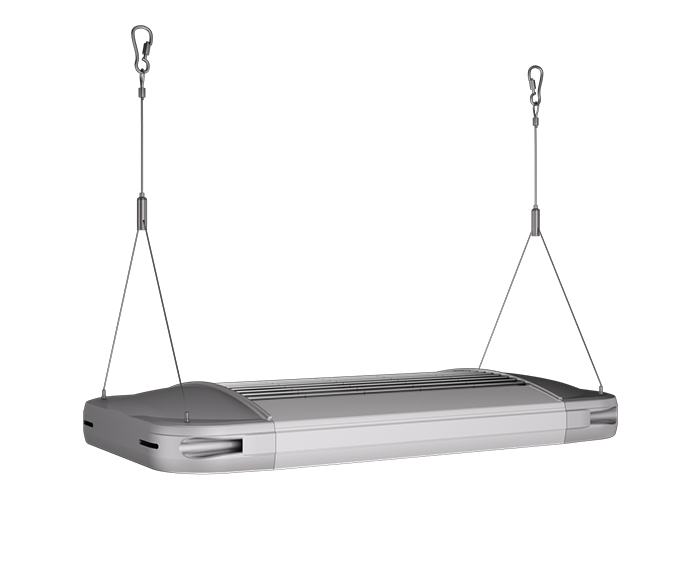

Suspended 200w modular design LED high bay light, Our lamps have several installation methods: suspended installation, bracket installation, and boom installation, which can meet different installation environments. Modular design is more convenient for your maintenance, IP66 and IK10 protection grades protect your lamps.
1. Wide power range: 40W~360W.
2. Special circuit design, single LED damage won't affect others' normal work.

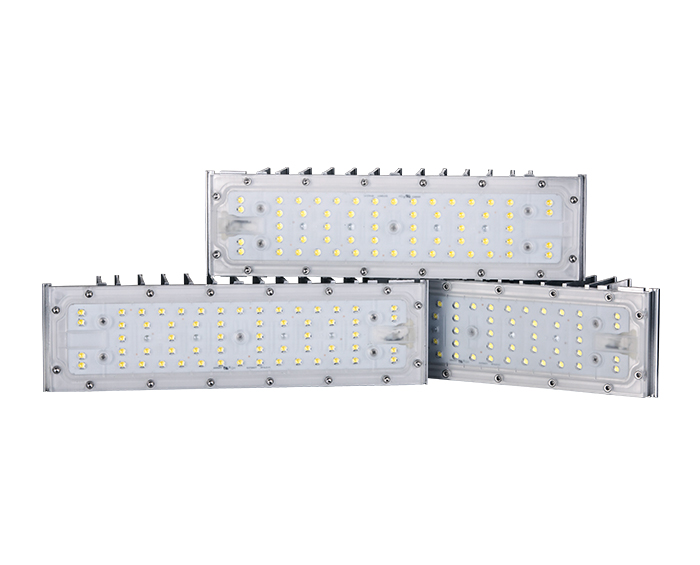

3. Modular design for easy installation, replacement, and maintenance.
4. High Lumen output up to 165lm/ w with high-quality LED chips.
5. Various applications with different mounting Accessories.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
Model | ZGSM-GCD200H4 |
LED Brand | Lumileds LUXEON 3030/5050 |
Driver Brand | Meanwell HLG series |
Normal Wattage | 200W |
LED Module Quantity | 5 modules |
Input Voltage | 100-240/277/347/480VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 140-165 lm/w |
Lamp Rated Lumen output | 28000-33000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 3000K, 4000K, 5000K or 5700K |
Photometric Type | 60,90,110 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body | Die-cast Aluminum Housing |
Cover | PC lens |
Rating | IP66 IK10 |
Protection | Class I ( Class II optional) |
Certification | CE, ROHS, LM80 |
Dimming Options | 1-10V or DALI or PWM or Timer |
Control Options | Motion sensor or Smart control |
Color Options | Silver |
Warranty | 7 years |
ZGSM LED miners can use conventional 1-10V or 0-10V dimmers to adjust brightness from 10% to 100% and connect specially designated dimming pairs to compatible low-voltage LED dimming switches.
As the name suggests, high bay lights are used to illuminate spaces with high ceilings. This typically means that ceilings range from 20 feet to about 45 feet. Low shed lights, on the other hand, are used for ceilings up to 20 feet.
In LED bulbs and LED mining lamps, no ultraviolet or mercury is used or emitted. Therefore, they are safer to use and operate than other light bulbs. These lights are ideal and safe for health.
