Solar Street Light

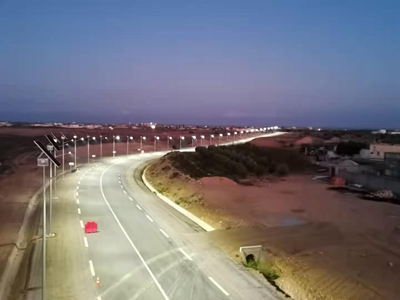

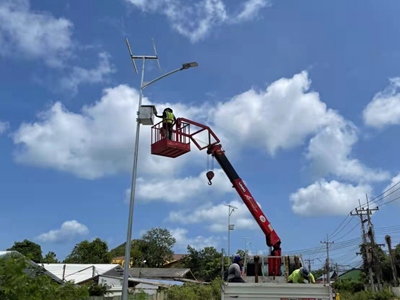

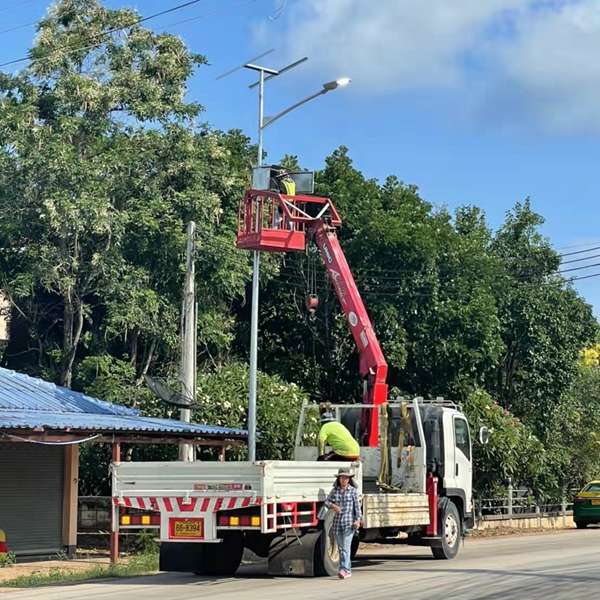

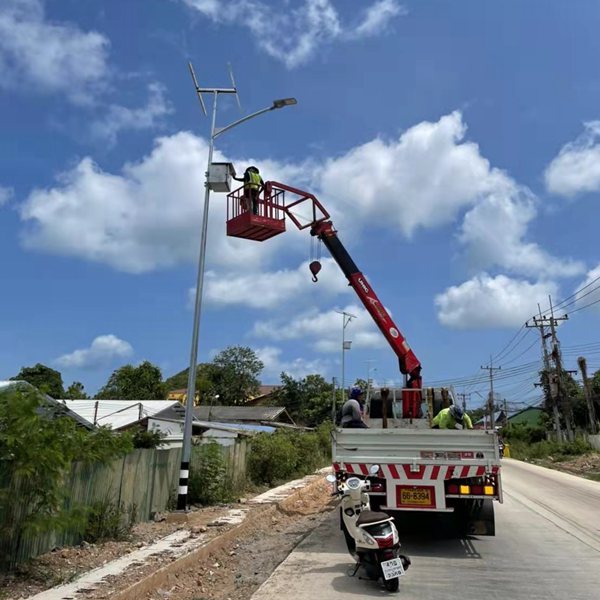

The outdoor solar street lights project in Thailand was completed in April, 2022. It's a new project using ZGSM latest 100W Rifle series LED street light with 170lm/W to 250W old HPS lamps. The MPPT charge controller will track the maximum power point in the solar panel in real time to exert the maximum effect of the solar panel, so the lithium battrey could be full charged at the shortest time. This solution not only helps customers save more than 60% of energy, but also ensures that the solar street light system can work normally under continuous rainy days. Our client highly praised the performance of this project.
Project location: Thailand
Project time: April 2022
Product details:
Product: 100W Solar LED street light Qty: 51 sets
Model No.: ZGSM-ST17-100M
LED chips: Lumileds 3030
CCT: 5700K
Controller: 15A MPPT Solar Controller
Battery: 115Ah/25.5V Lithium battery
Solar Panel: 350W Solar Panel
Dimming Function:
Dimming: Light on +timer
working time 1: 6 hours 100% /
working time 2: 4 hours 50% /
working time 3: 100%
Pole height: 9 meters

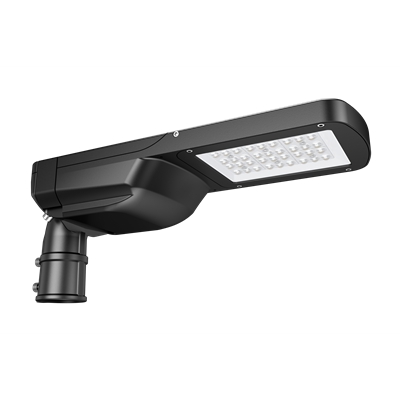

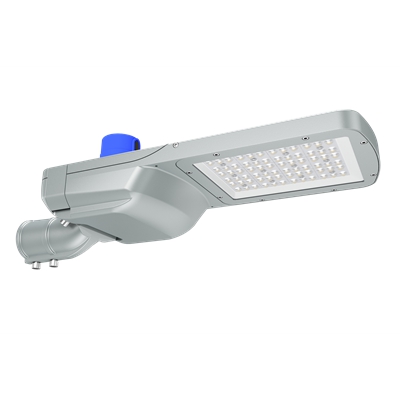

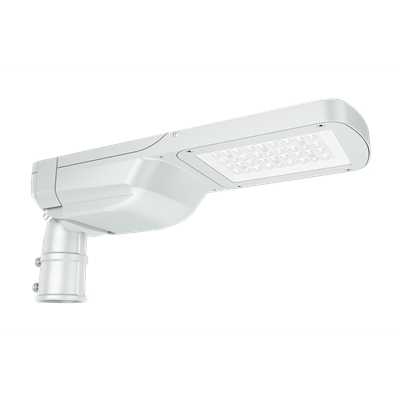

| Model | ZGSM-ST17-100M |
| LED Brand | LUMILEDS 3030 or 5050 |
| Driver Brand | Inventronics /Other brands on request |
| Normal Wattage | 100W |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 155-165lm/w |
| Lamp Rated Lumen output | 15500-16500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | Type II, Type III |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | High-pressure die-cast aluminum |
| Cover | Tempered glass |
| Rating | IP66, IK10 |
| Protection | Class I (Default) /Class II |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21 |
| Dimming Options | 1-10V Dimming (Default) /Timer Dimming |
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming |
| Color Options | Gray (Default) /Black (available on request) |
| Warranty | 5 years |
Installation Manual_StreetLight_Rifle.pdf
Data Sheet_StreetLight_Rifle.pdf
 |  |  |

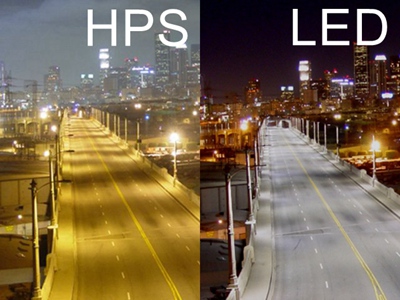

| LED Street Light VS HPS, Which Is Better? | 6 Things Must Know about Solar Street Light | Solar Street Light Installation Method |
 |  |  |
A solar lighting system doesn't need to be maintained frequently. Even more so in a dusty environment, it is beneficial to maintain the solar panels clean.
MPPT stands for maximum power point tracking. The MPPT charge controller uses maximum power point tracking technology to ensure that the loads receive maximum current to be used (by quickly charging the battery). Maximum power point could be understood as an ideal voltage at which the maximum power is delivered to the loads, with minimum losses.
- Solar street lights have good stability and long working life, no need to maintain;
- High Efficacy with great performance;
- No need to connect to city electric supply, not only more energy-saving but also could be installed to the places without electric supply;
- Easy to install and very safe;
- Could be widely applied to city streets, residential areas, factories, tourist sites, and parking lots.
