Solar Street Light

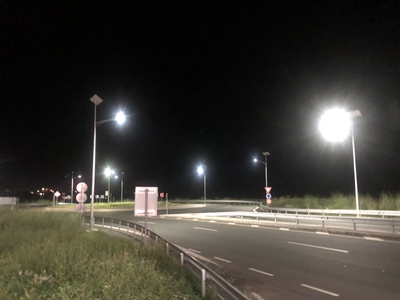

This is a solar street light project in UAE, the UAE is a rich sunny country, the project uses the PV2 series all in one solar led street light, integrated LED modules, solar panels, lithium batteries, and solar controllers as one unit, easy to install, no need wiring or assembly of lamps, it can be directly fixed on the pole. the project was completed in 2017, so far there has not been a failure, the customer is very satisfied.

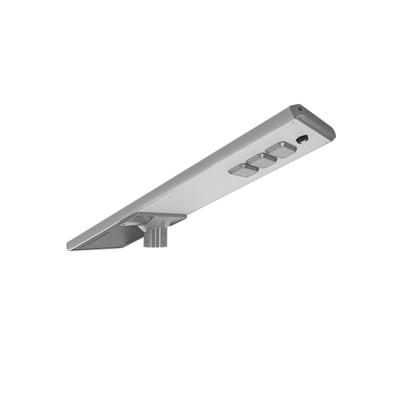

Product: 60W Solar Street Light All In One
Model No.: ZGSM-PV706036
LED: Lumileds
Solar Panel: Monocrystal 70W /18V
Battery: 36AH /11.1V Lithium Battery
Sensor: Motion Sensor
CCT: 5700K
Optics: Type 1S
Installation Height: 6m
QTY: 70 Units
| Model | ZGSM-PV706036 | ||
| LED Number | 90units | ||
| Nominal Power | 60W | ||
| Battery Spec. | 36AH /11.1V | ||
| Solar Panel Spec. | Monocrystal 70W /18V | ||
| LED Brand | Philips Lumileds 3030 2D | ||
| Luminous Flux | 7800lm | ||
| Light type | 1S | ||
| CCT | 3000K.4000K.5000K.5700K | ||
| Charge time | <6.5 Hours (Low battery voltage) | ||
| Worktime at Energy -saving Model(30%) | more than 19.5 hours | ||
| Discharge Temperature | -20℃~+60℃ | ||
| Charge Temperature | <60℃ | ||
| Light Control Voltage | 5-11V | ||
| Mounting Height | 6-8m | ||
| Space Between Light | 18~35m | ||
| Pole Diameter Fixture | Round pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm | ||
| Rating | IP65 IK10 | ||
| Induction Type | Human infrared induction or microwave induction function | ||
| Certification | CE, ROHS,LM80 | ||
| warranty | 3 years | ||
Installation Manual_AIOSolarStreetLight_PV2.pdf
Data Sheet_AIOSolarStreetLight_PV2_11.1V.pdf
 |  |  |
| Solar Street Light In Mexico | Solar Street Light In Cameroon | Solar Street Light In China |
 |  |  |
| Solar Street Light In France | Solar Street Light In Serbia | Solar Street Light In Thailand |
 |  |  |
| The Functions of the Solar Street Light Controller | How to Extend the Battery Life of Solar Street Light? | |
 |  |  |
| What Should Notice When Wiring Solar Street Light? | Do Solar Street Lights Need External Power? |

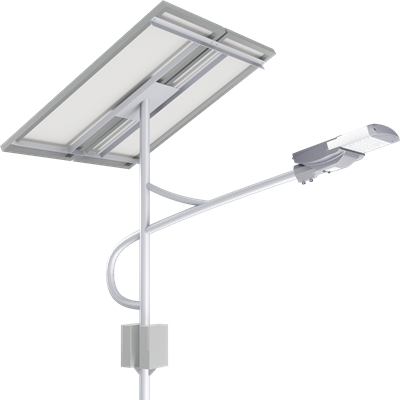

Solar street lights usually consist of LED street lights, solar panels, rechargeable batteries, charge and discharge controllers, poles, etc. Solar street lights are elevated light sources that are powered by solar panels that are either positioned on the lighting structure or built into the pole itself. During the daytime, the solar panels charge a rechargeable battery, which powers a fluorescent or LED lamp in the evening.
- Solar street lights have good stability and long working life, no need to maintain;
- High Efficacy with great performance;
- No need to connect to city electric supply, not only more energy-saving but also could be installed to the places without electric supply;
- Easy to install and very safe;
- Could be widely applied to city streets, residential areas, factories, tourist sites, and parking lots.
If your solar lights continue to blink or flash, there's a good probability they're not getting enough sunshine to generate enough charge. It's also possible that the batteries are outdated and unable to maintain a sufficient charge, or that there is dirt on the panels preventing sunlight from reaching the panels.
