Multifunctional Chain Suspended LED Street Light 30-150W

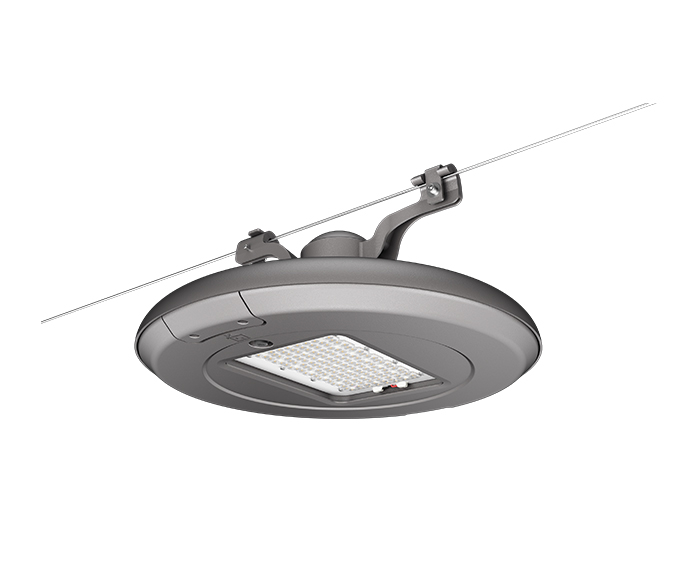

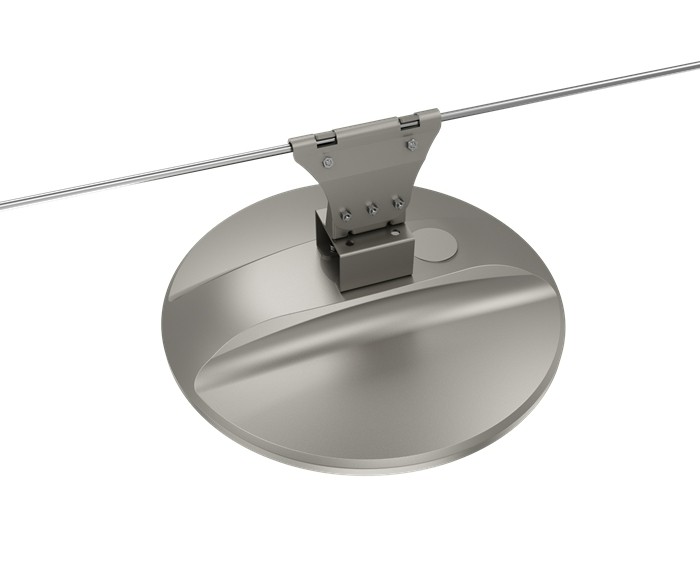

The multifunctional Halo series LED street light have could be installed in 6 different ways by different accessories: single-arm post top type, double-arm post top type, side entry type, pole pendant type and wire suspension type available for options. Among them, the wire suspension type means install the Halo series LED street light by a metal chain hanging between two poles or buildings, which is more convenient, looks more beautiful and have a better lighting result.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Power range 30W up to 150W

2. Super smooth body design

3. Full die-casting aluminum housing

4. Efficiency up to 170 lm/W

5. 10/20KV surge protection, IP66&IK10

6. Supports multiple installation modes

7. Class I and Class II are optional.

8. CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK10 certified

9. Kinds of asymmetrical optical lens provide professional light distribution

10. Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora control

Specifications

Model	ZGSM-ST20-XXYY( XX= 30~150W, YY=PT1,PT2,SE,WS,HB,PP)
LED Brand	LUMILEDS® LUXEON 3030 or 5050
Driver Brand	Meanwell / Inventronics
Normal Wattage	30W, 50W, 80W, 100W, 120W,150W

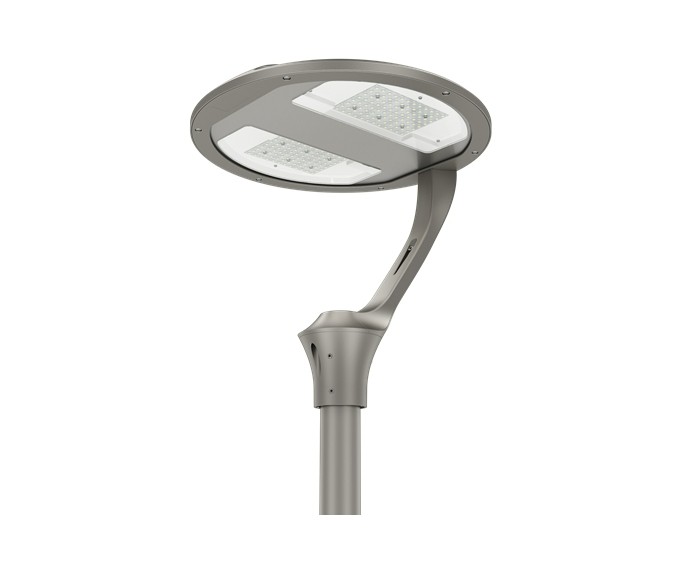

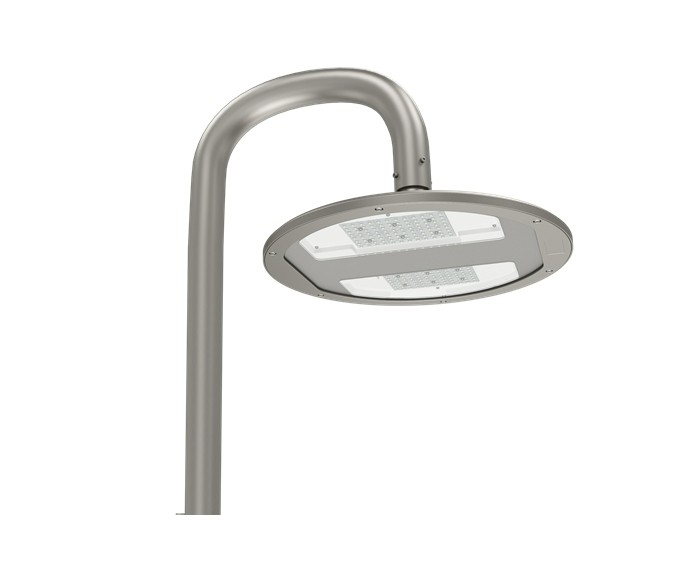

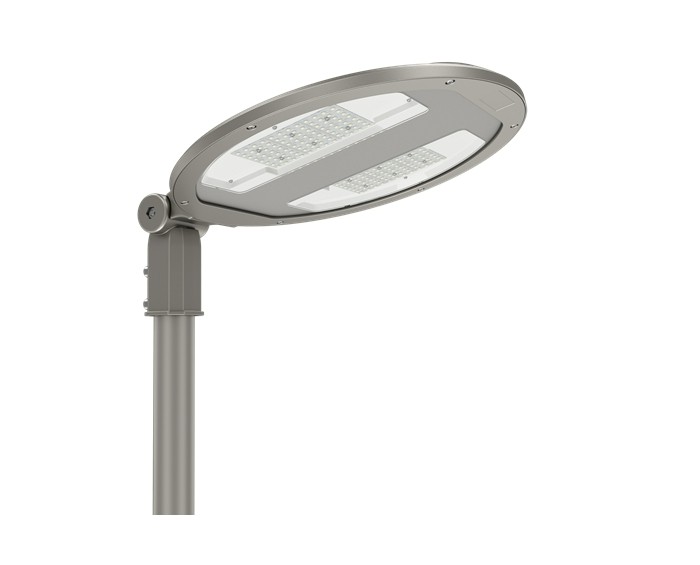

Mounting Way	Single Arm Post Top, Double Arm Post Top, Side Entry, Wire Suspension, High Bay, Pole Pendant
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	145-170 lm/W
Standard Deviation of Color Matching	<5 SDCM
Color Rendering Index	70(80 optional)
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type II Medium; Type III Medium.
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body and Shell Materials	Die-cast aluminum; Tempered Glass
Pole Fitter Diameter	60mm
Rating	IP66 & IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Gray (RAL9007) /Black (available on request)
Warranty	5 years

FAQ

1. What Is A Round LED Street Light?
The Round LED Street Lights is one kind of LED street lights with a round body design, like ZGSM L series and Halo series. It not only have the same advantages of high efficacy, long lifespan, energy saving as other LED street lights. The elegant housing design also makes it could be applied to city street lighting, garden lighting, community Lighting, residential area lighting and so on.
2. What is a motion sensor?
A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.
Another name for a motion sensor is a motion detector.
The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.
3. What voltage are LED street lights?
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
