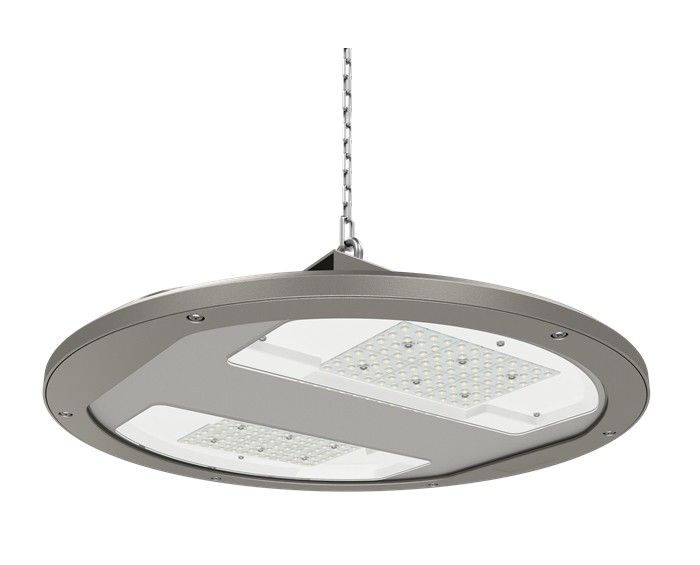

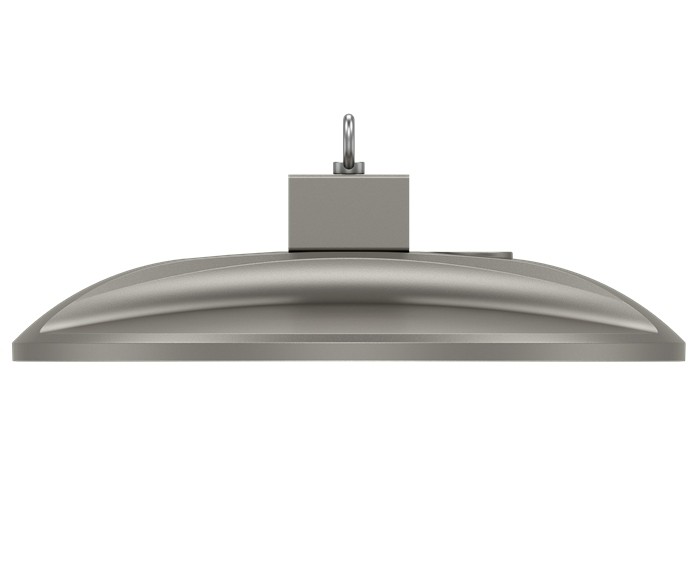

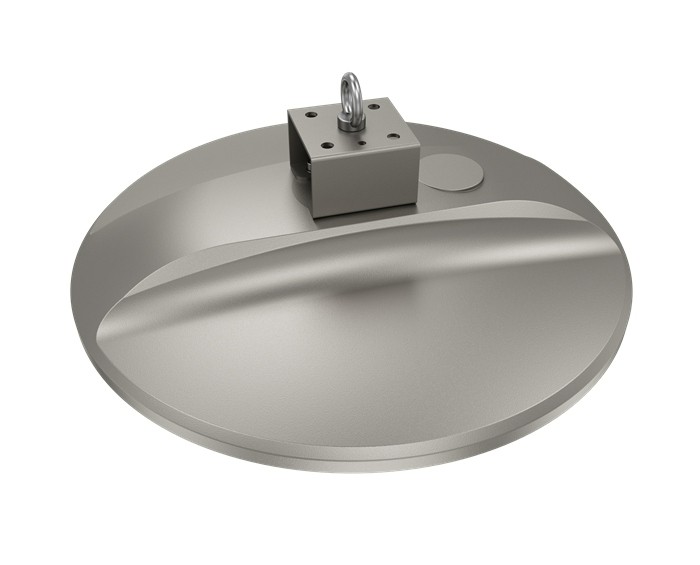

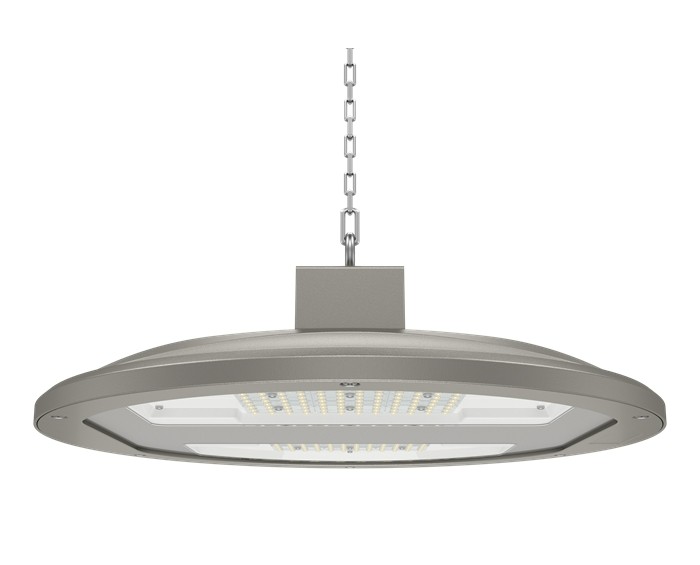

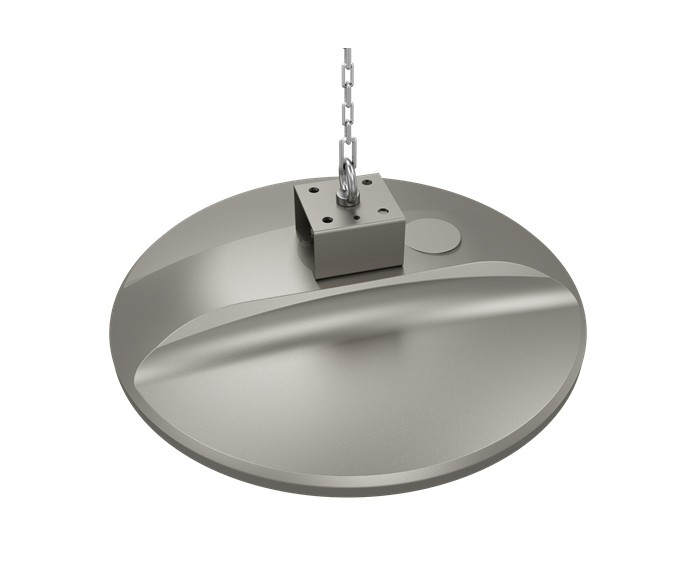

UFO Type LED High Bay Light
The Halo series UFO LED High Bay Light ranges from 30W to 150W. The flexible metal chain installation is firm and easy to fix on the beams and ceilings for indoor lightings, such as factory lighting, workshop lighting, warehouse lighting, gym lighting and so on. It's easy to adjust the mounting height by choosing chains of different lengths. Halo series UFO high bay LED light has 3 beam angles of 60°, 90°, and 120° for your options, which could meet your lighting requirements for different heights and area sizes.
1. Power range 30W up to 150W
2. Super smooth body design
3. Full die-casting aluminum housing
4. Efficiency up to 170 lm/W
5. 10KV/20KV surge protection
6. Supports multiple installation modes
7. Class I and Class II are optional.
8. CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK10 certified
9. Kinds of asymmetrical optical lens provide professional light distribution
10. Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora control
| Model | ZGSM-ST20-XXYY( XX= 30~150W, YY=PT1,PT2,SE,WS,HB,PP) |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell / Inventronics |
| Normal Wattage | 30W, 50W, 80W, 100W, 120W,150W |
| Mounting Way | Single Arm Post Top, Double Arm Post Top, Side Entry, Wire Suspension, High Bay, Pole Pendant |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-170 lm/W |
| Standard Deviation of Color Matching | <5 SDCM |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type II Medium; Type III Medium. |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm |
| Rating | IP66 & IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Gray (RAL9007) /Black (available on request) |
| Warranty | 5 years |
UFO LED high bay lights are LED lights in the shape of UFOs that are mostly used for commercial or industrial illumination in places like warehouses, factories, garages, and shopping malls. They have the ability to light up enormous areas.
Yes, our H Series LED High Bay Light could be used for both indoor lighting and outdoor lighting. IP66 waterproof design makes it no need to worry about the rain. PC lenses of different beam angles could meet the lighting requirements of different lighting areas.
For bright light, a spacing of 15 feet can be utilized at a height of 20 feet, and for average light, an 18-foot spacing should be used. You can go for a 20-foot spacing between the lights at 30 feet height to get a brighter light. For regular lighting, however, a 25-foot separation is sufficient.
