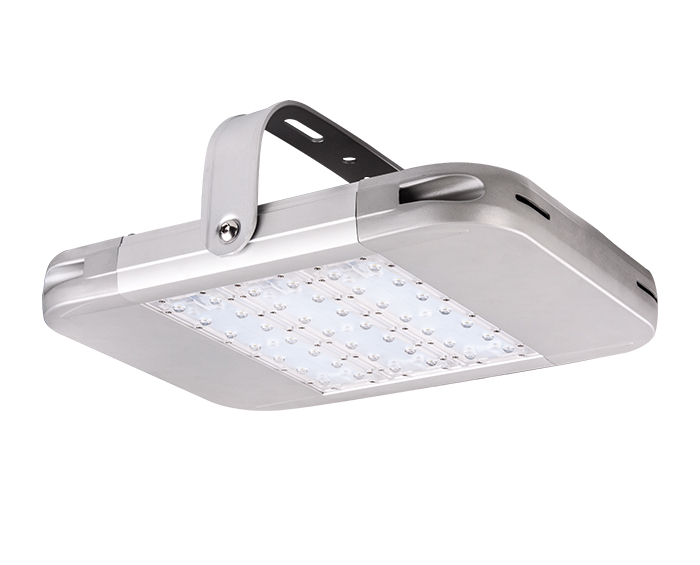

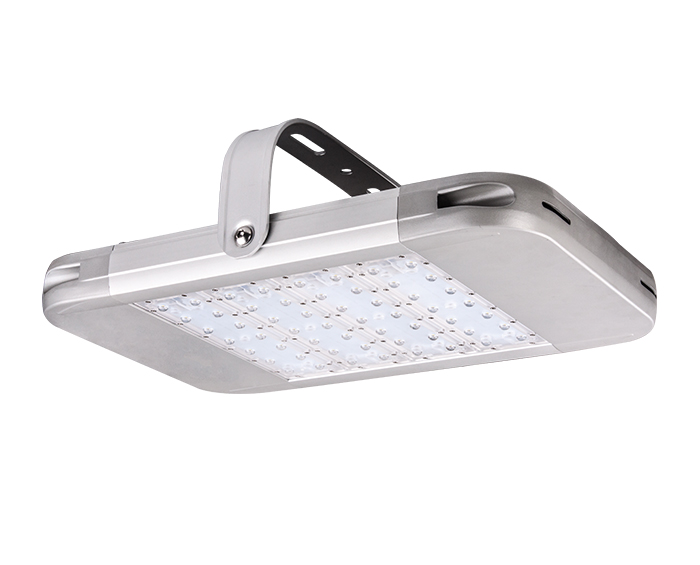

IP66 IK10 160w UL high bay light

IP66 IK10 160w UL certified LED high bay light, this series of products meet the relevant UL safety standards, you can buy and use with confidence. High bay lights have bracket mounting, suspended mounting, pendant mounting, and other installation methods. There are various appearance designs such as square and round, which can be applied to lighting areas such as warehouses, workshops, and garages.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.

Specifications

Model	ZGSM-GCD160H
LED Brand	Lumileds LUXEON® TX

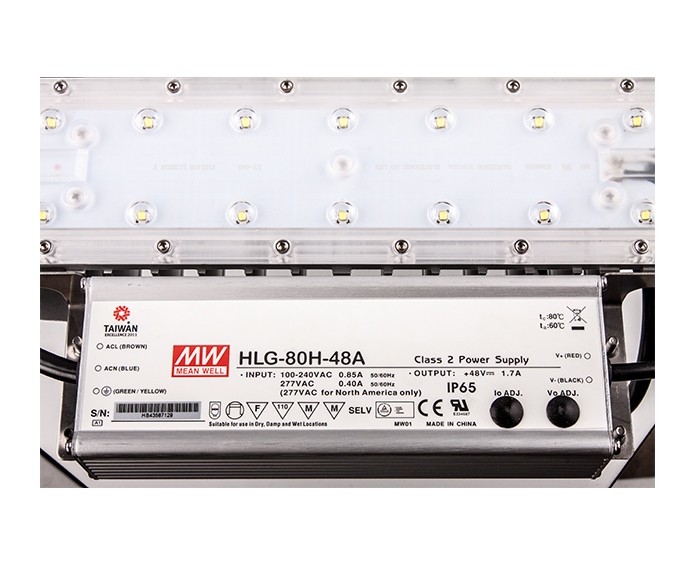

Driver Brand	Meanwell HLG series
Nominal Wattage	160W
LED Module Quantity	4 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110 lm/w
Lamp Rated Lumen output	17,600 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Die-cast aluminum Housing
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

FAQ

What is a high bay light?

High bay light is a general term for lamps used in factories, mines, warehouses, and high bay production areas. High bay lights are used to illuminate spaces where the ceiling is 20 feet above the floor and about 40 feet above the floor. In addition to various lighting lamps used in normal environments, there are also explosion-proof lamps and anti-corrosion lamps used in special environments. Additionally, in order for these lights to operate efficiently from this height, they require specially designed reflectors (for HPS/MH bulbs) and lens angles (for LED high bay lights).

How do I choose a high bay LED light?

Industrial and miner's led lights have different wattages, but you need to pay attention to their lumens. The higher the LED lumen, the smaller the wattage of the luminaire. You can easily choose one according to the height of the installation site. Different heights to choose from different lumens:
